This is description of this part:
Complete lamp power supply for the Zeiss Axioskop 20 microscope. In the manufacturer catalog this element has the number 451487 (alternative notation: 45 14 87).
The Zeiss 45 14 87 lamp power supply consists of the following elements:
- rear housing of the Zeiss Axioskop 20 microscope

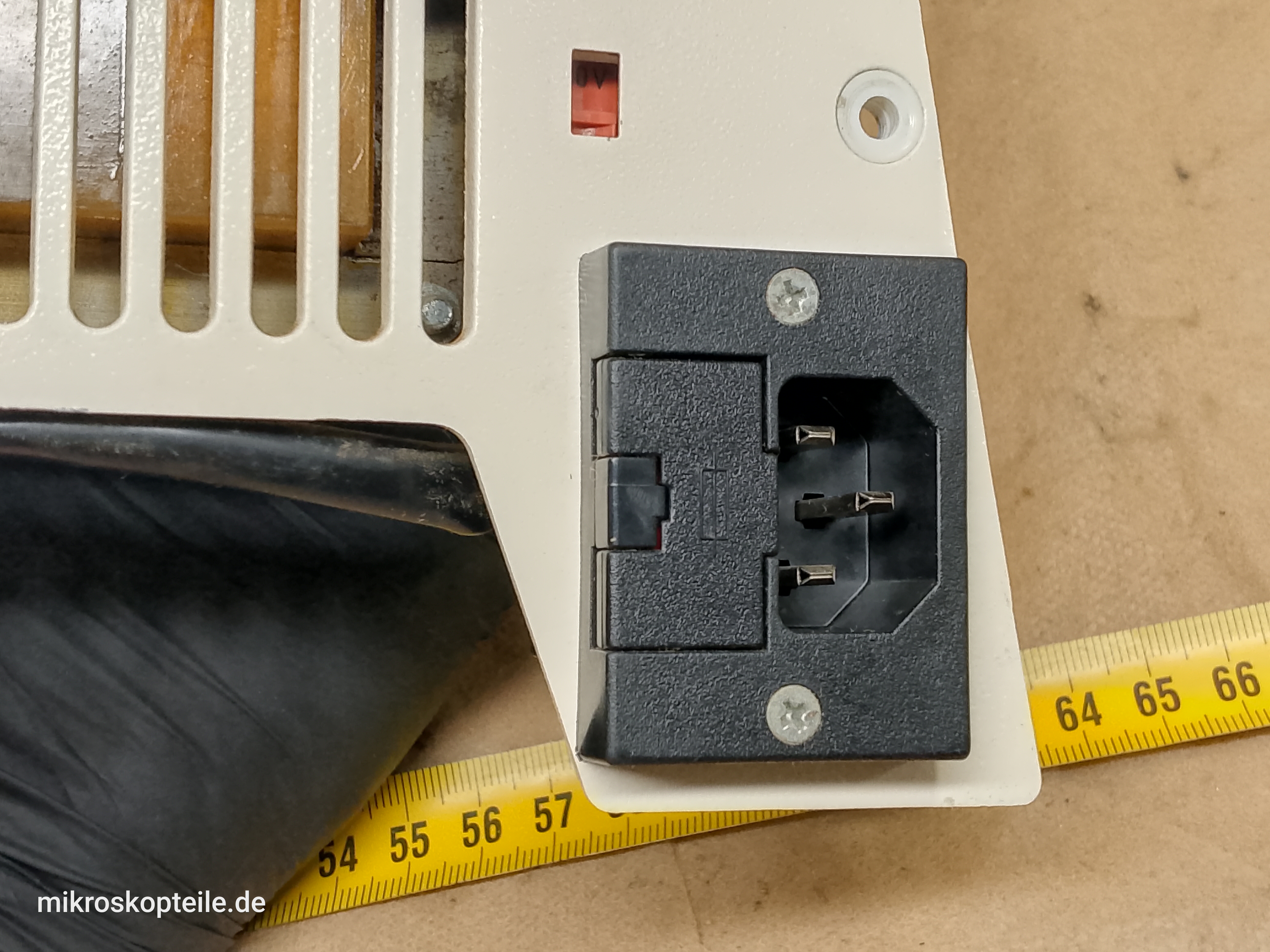

- power connector
- fuse
- ON/OFF switch
- potentiometer for illumination intensity control
- transformer
- necessary electronics
Basic parameters:
- Name: lamp power supply
- Manufacturer: Zeiss
- Fits microscope: Zeiss Axioskop 20
- Manufacturer catalog number: 45 14 87
- Input voltage: 115V or 230V (manually switchable)
- Output parameters: 6V 20W
- Potentiometer operating range: from 1V to 6V
In the user manual (this part of the manual can also be seen in the image gallery) this lamp power supply is shown in figure 1.0.
What is this part needed for?
- as a service element if the lamp power supply installed in your microscope is damaged
