PZO MB-30 microscope condenser support (PZO ML-5 condenser holder) - photo gallery

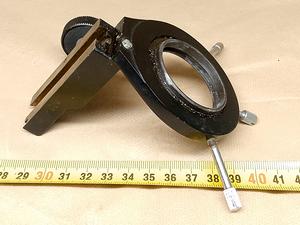

This is description of this part:

- 39.5 mm diameter condenser holder with a condenser holding screw
- knob for adjusting the vertical position of the condenser (top-bottom)
- central condenser mounting screw
- two long screws for centering the condenser

This part is compatible with the following PZO microscopes:
- MB 30
- MB 30S
- MS 5
- ML 4
- ML 5
- ML 6

Note - This part is BLACK. Please note that the microscopes it is compatible with may have different paint colors.

Note - This part is from the PZO MB-30 microscope, so it has long screws for centering the condenser. It differs from the condenser holders of the MS and ML models in these screws; i.e., the MS and ML do not have such long screws for centering the condenser. Users of PZO MS and PZO ML series microscopes often replace their condenser holder with the one in the MB-30 to easily center the condenser, which is especially convenient when using the condenser for phase contrast.

Note - the gear rack on which this mechanism moves is NOT included in the kit.

If you need smaller, individual components of this module (e.g., a gear knob, centering screws, or anything else) - contact us

What is this part needed for?

• As a service part
• individual components in this mechanism often become damaged
• the screw holding the condenser sometimes gets lost, bent, or breaks (and remains in the thread)
• sometimes the knob (handle) is chipped or even melted by a soldering iron or cigarette
• if you have a PZO MS or ML series microscope and want to upgrade it with a condenser holder with convenient centering screws

What category does this part belong to?

Condenser holders (supports) [ link ] [More Condenser holders (supports)]

Who manufactures this part?

• PZO - Polskie Zaklady Optyczne [ link ] [More PZO]
• PZO Warszawa
• PZO Poland
• PZO Warszawa Poland

What microscope does this part come from?

Mikroskop PZO MB-30 [ link ] [More from MB-30]

What microscopes or components is this part compatible with?

• PZO MB-30
• PZO ML4
• PZO ML5
• PZO ML6
• PZO MS6
• PZO MB 30S
