Zeiss Standard 16 / GFL microscope stage - toothed rack covers - service spare part / repair element - photo gallery

This is description of this part:

Service element / repair part for mechanical XY microscope stage from Carl Zeiss (West Germany).

Name: toothed rack covers. Left and right.

This microscope part was removed from a Zeiss P/N 47 34 28 - 9901 (473428-9901). Over the years during which Zeiss produced such stages, numerous variants were created (I have personally seen five, for example https://www.microscopeparts.eu/microscope/281). Despite this variety, the construction is largely consistent, and most parts are identical.
It is therefore highly likely that the part shown and offered here is compatible with many variants of such microscope stages.

Such stages are interchangeable and can be installed in many Zeiss microscopes, however they are most commonly used in the following microscopes:
- Zeiss Standard 14
- Zeiss Standard 16
- Zeiss Standard GFL

Also often in:
- Zeiss Standard WL
- Zeiss Standard Universal

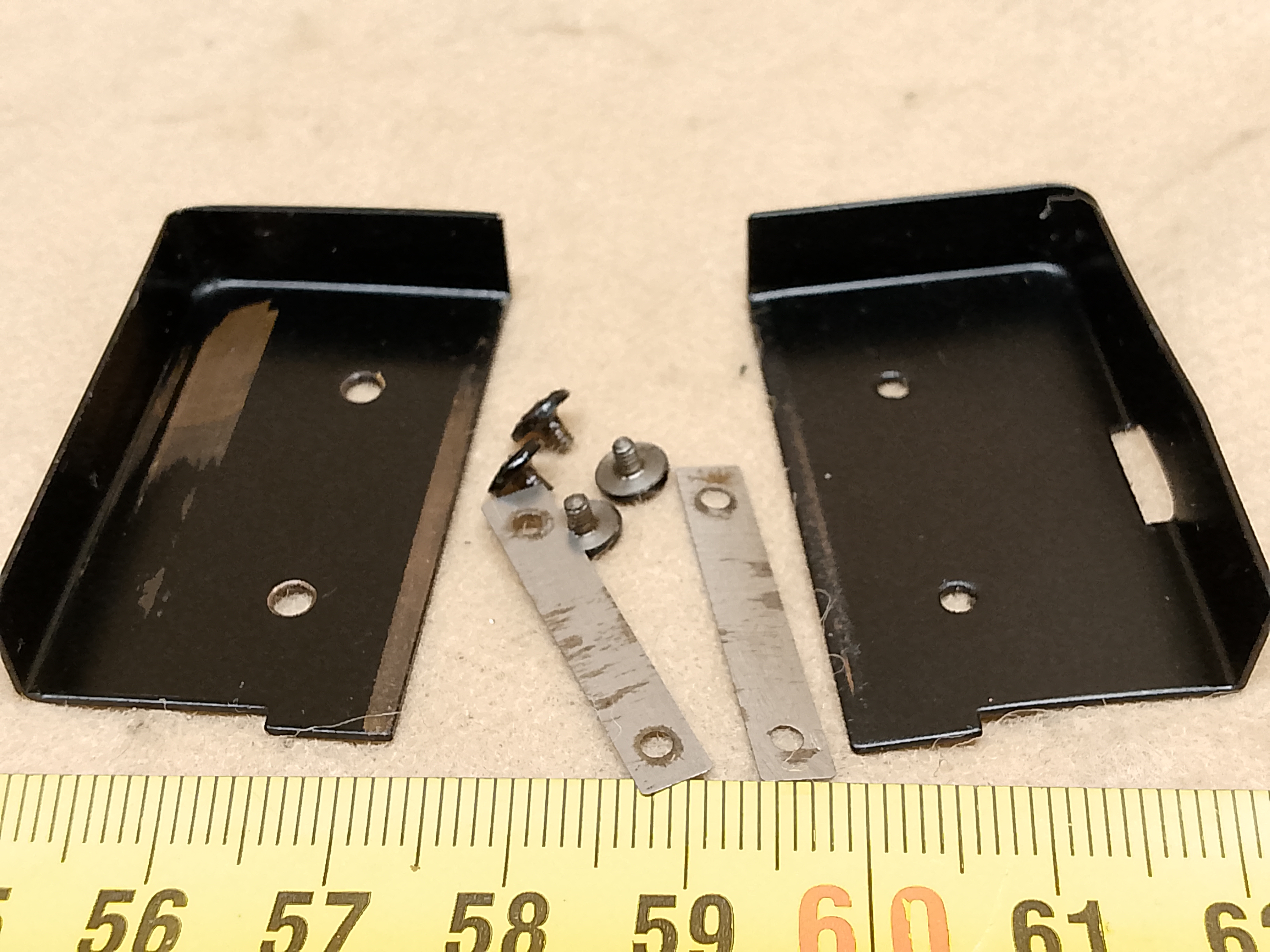

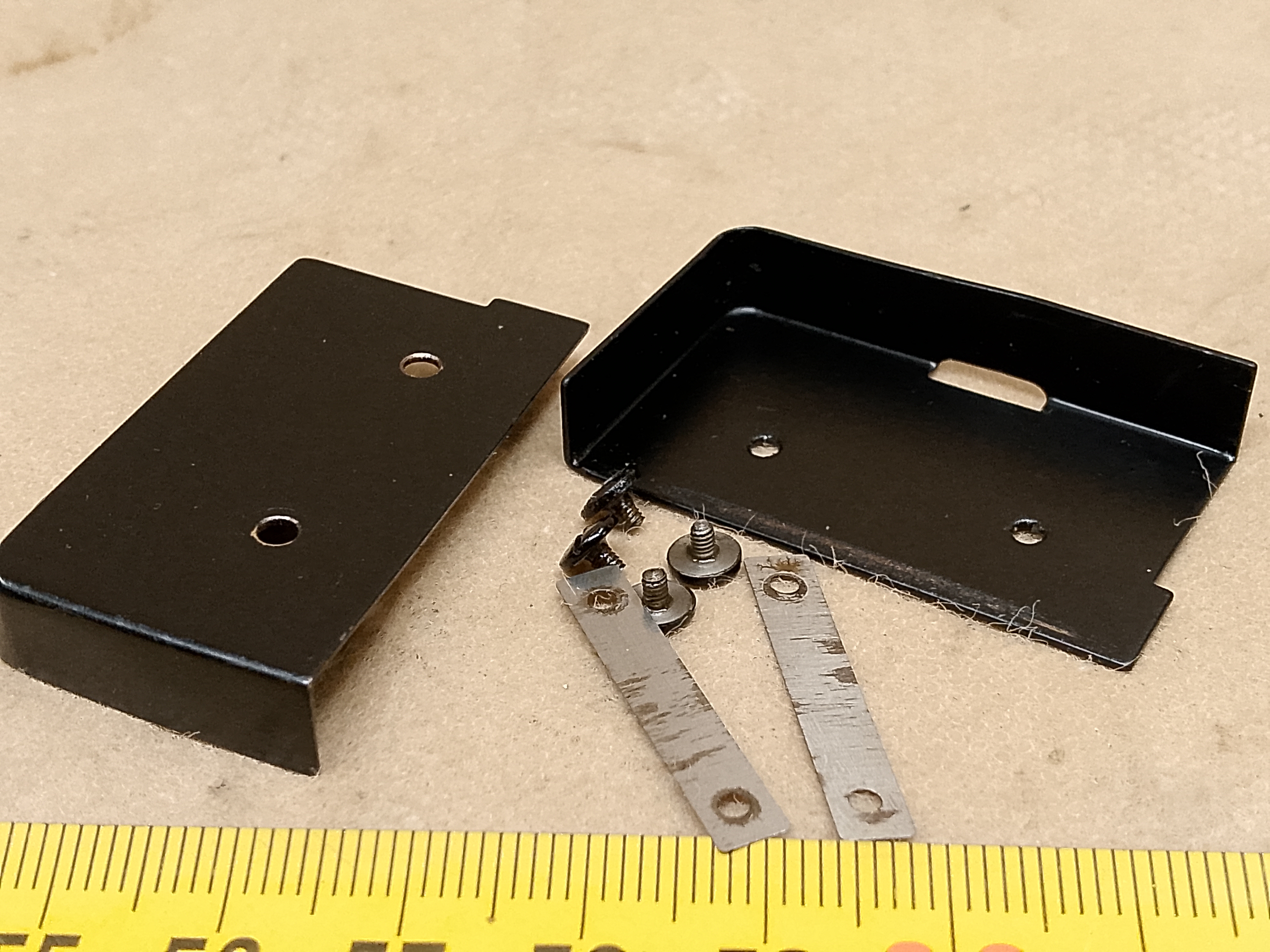

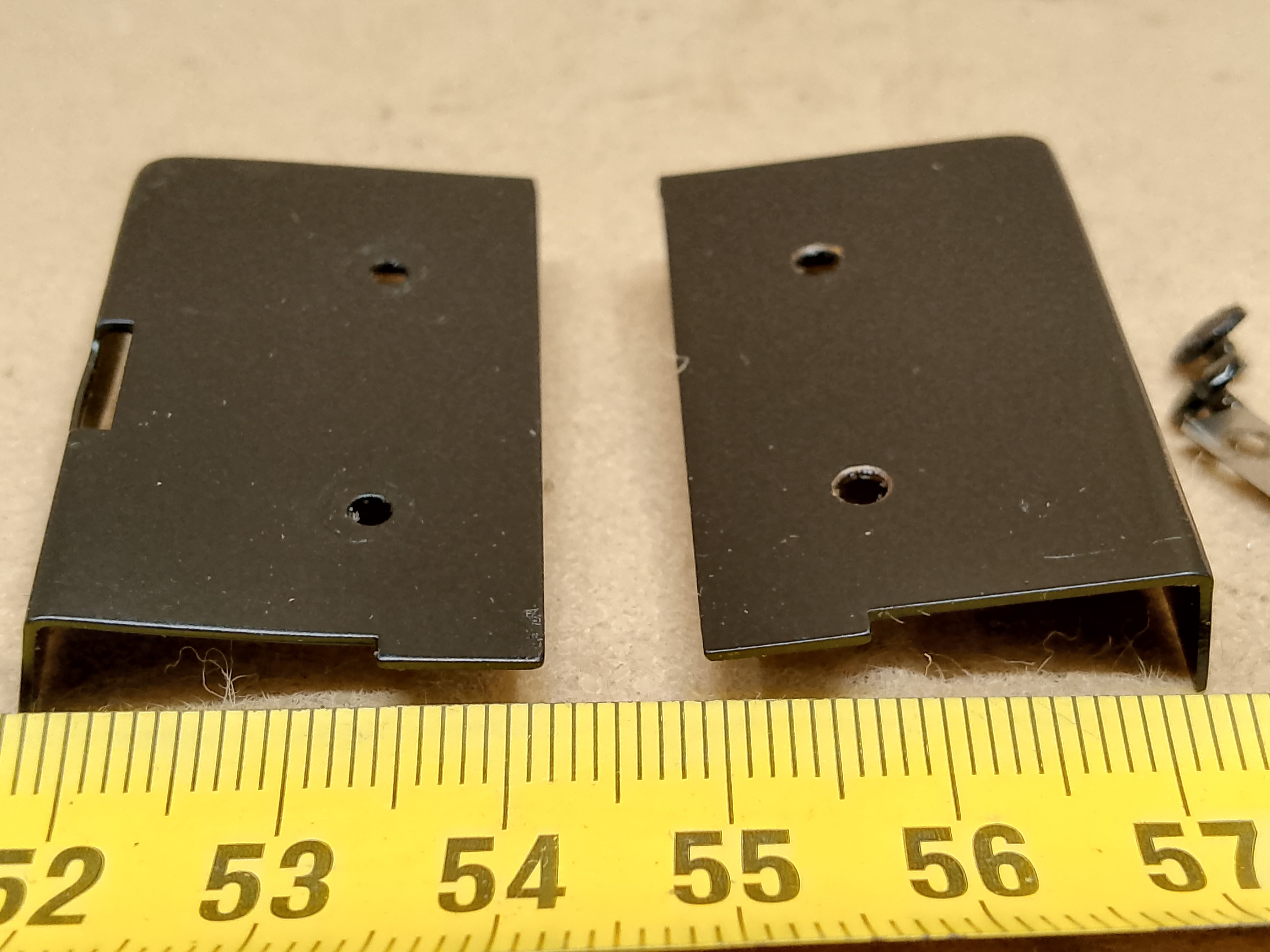

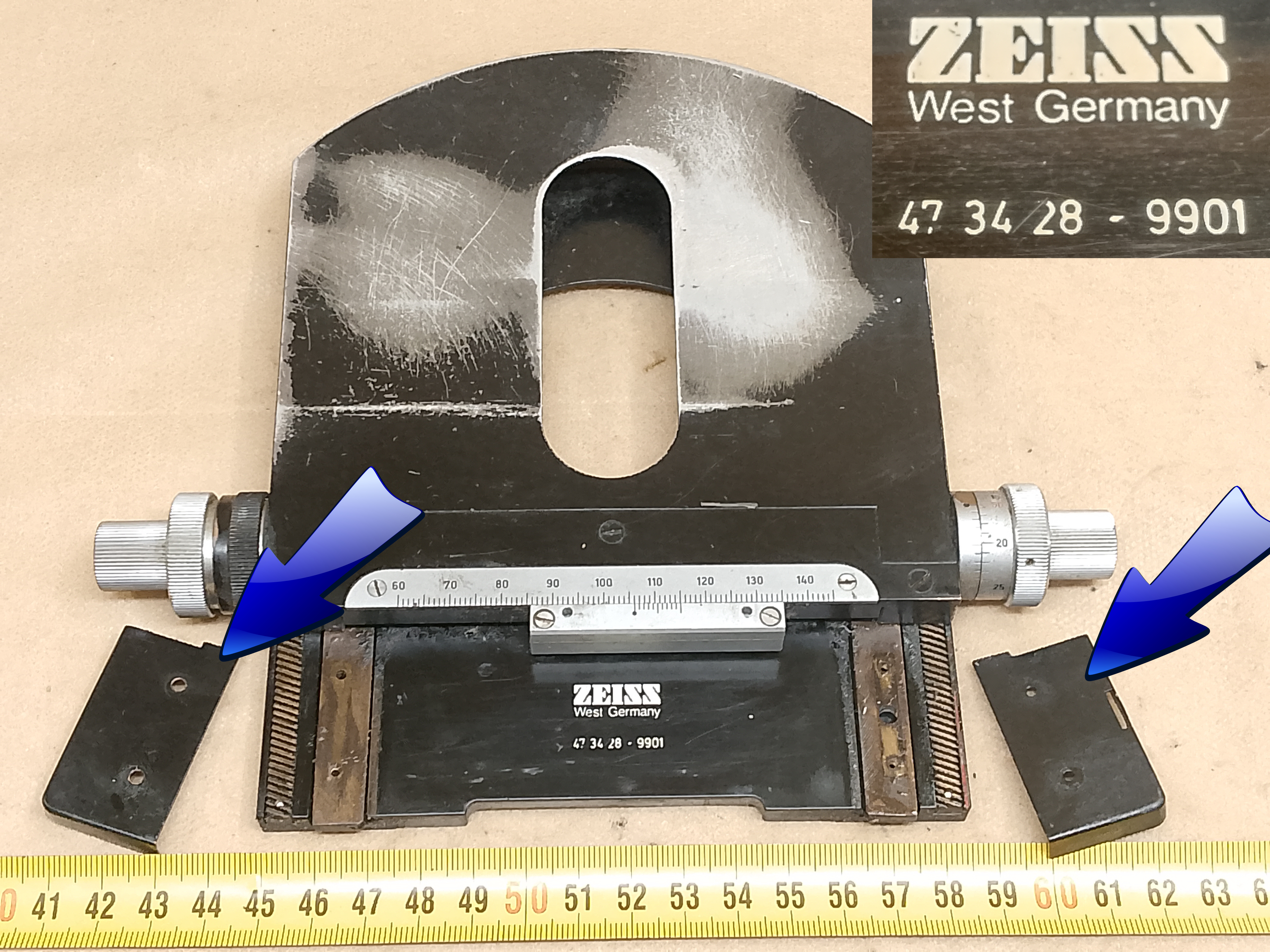

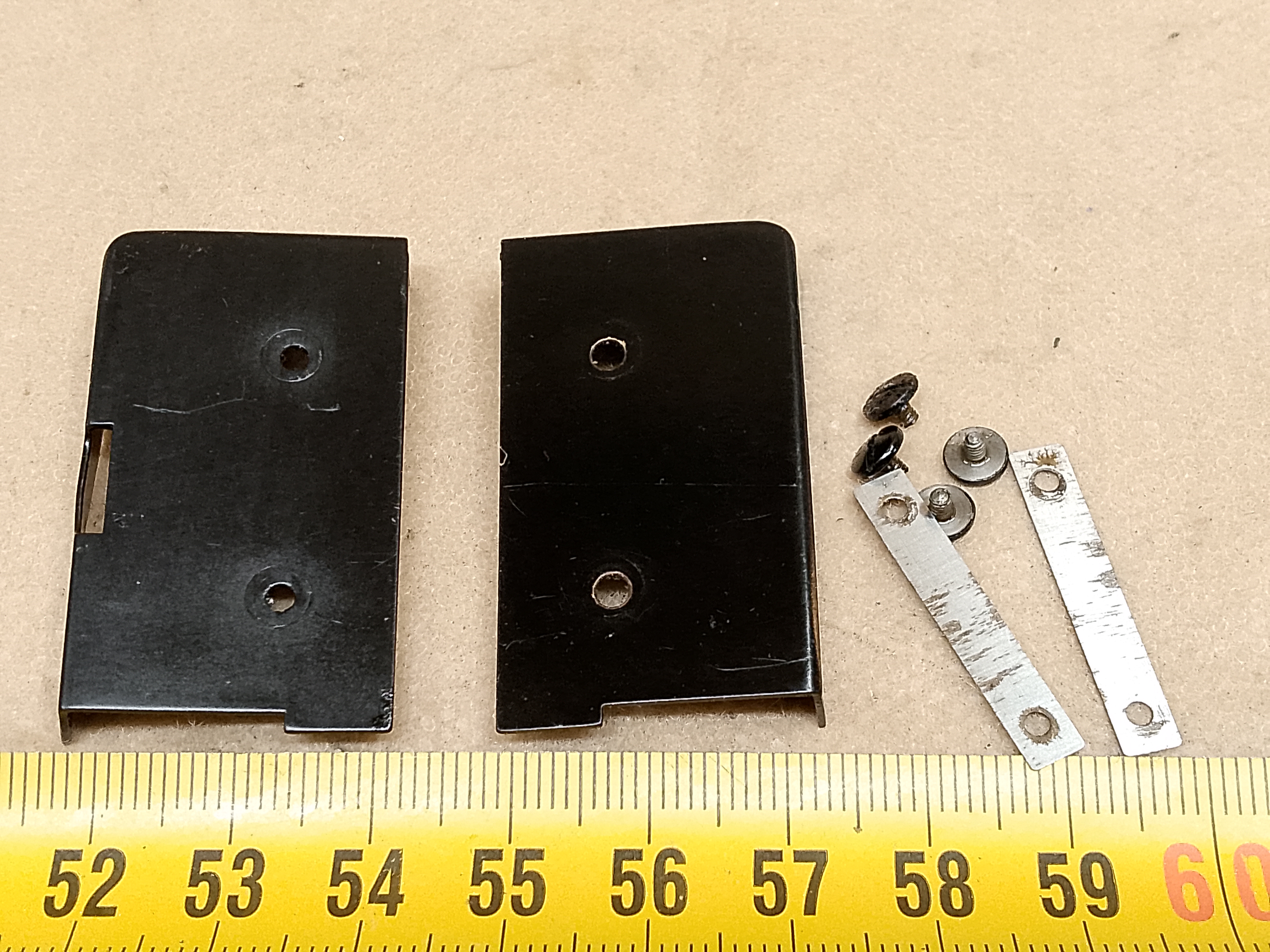

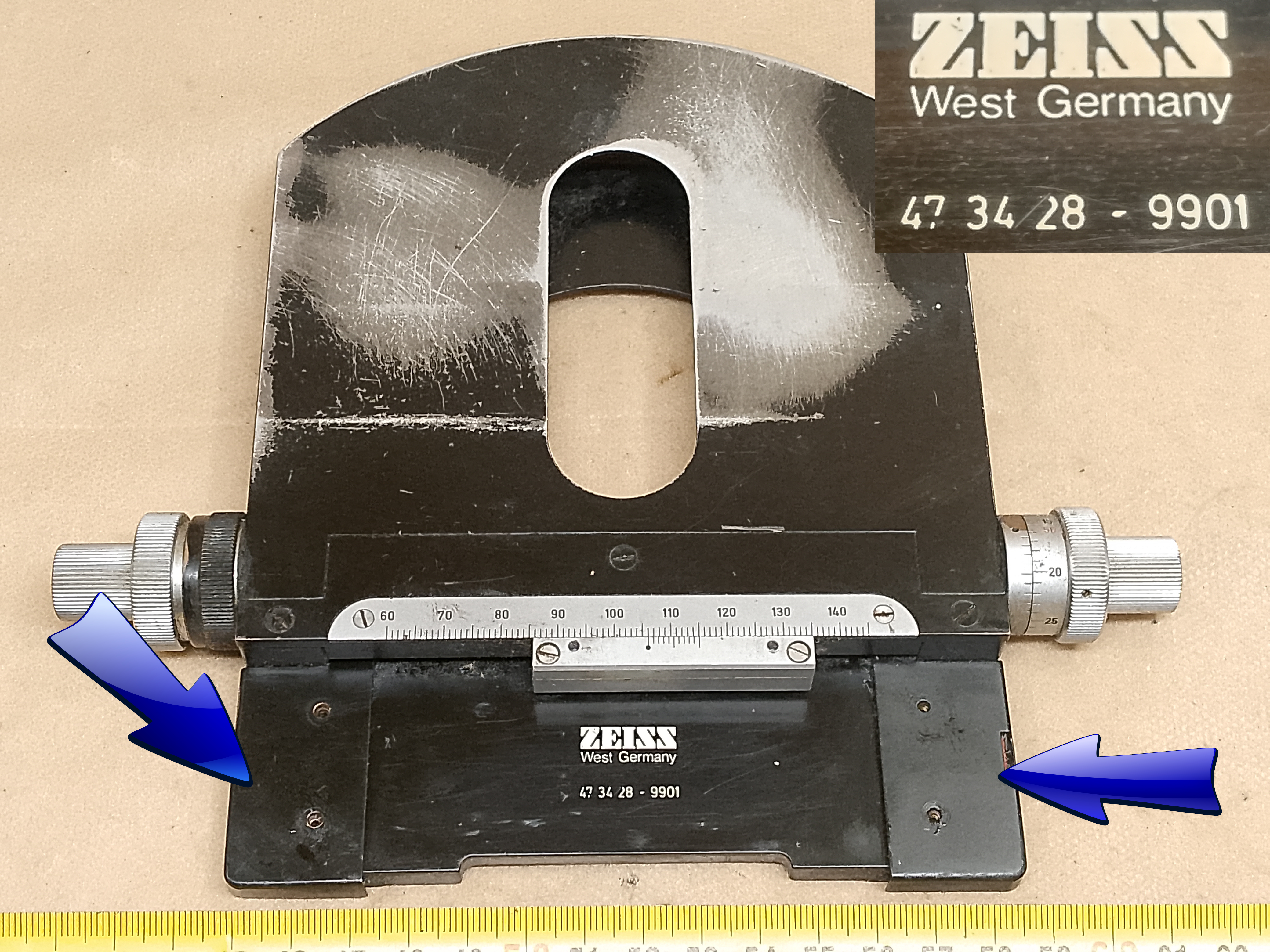

In the photo gallery there are detailed photos of this element together with the dimensions. Additionally, in the last photo an arrow indicates which element is being referred to and where it is located, in order to clearly identify this part.
