Leica DSC1 rotary disc microtome controller PN 14050534242 | remote console 14050534241 - photo gallery

This is description of this part:

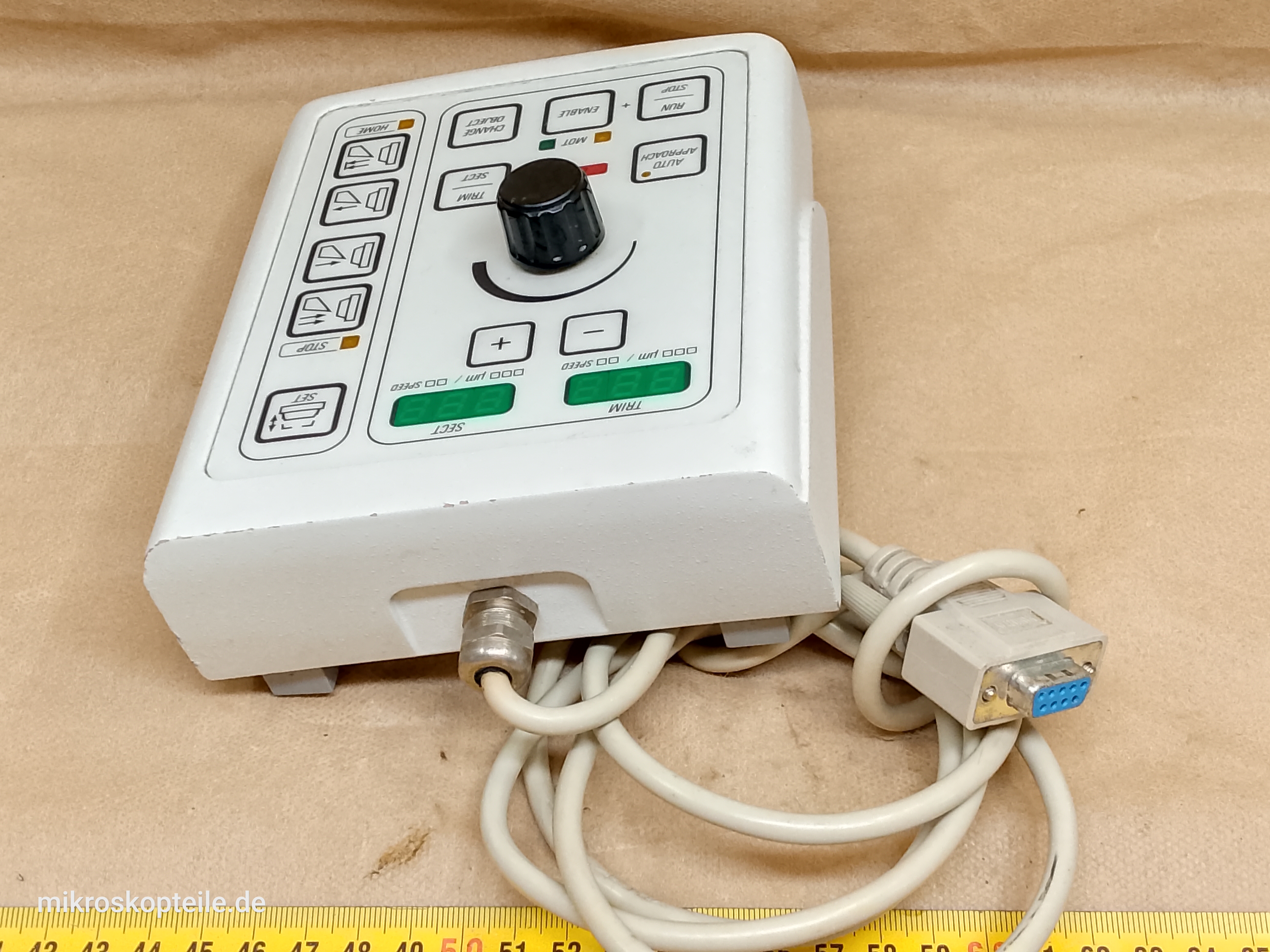

External control console for the Leica DSC1 rotary disc microtome

Basic parameters of this control panel:
Manufacturer: Leica Biosystems
Manufacturer catalogue number: 14050534242 / 14050534241 depending on version
Fits: Leica DSC1 rotary disc microtome (catalogue number of the microtome: 14050533151)

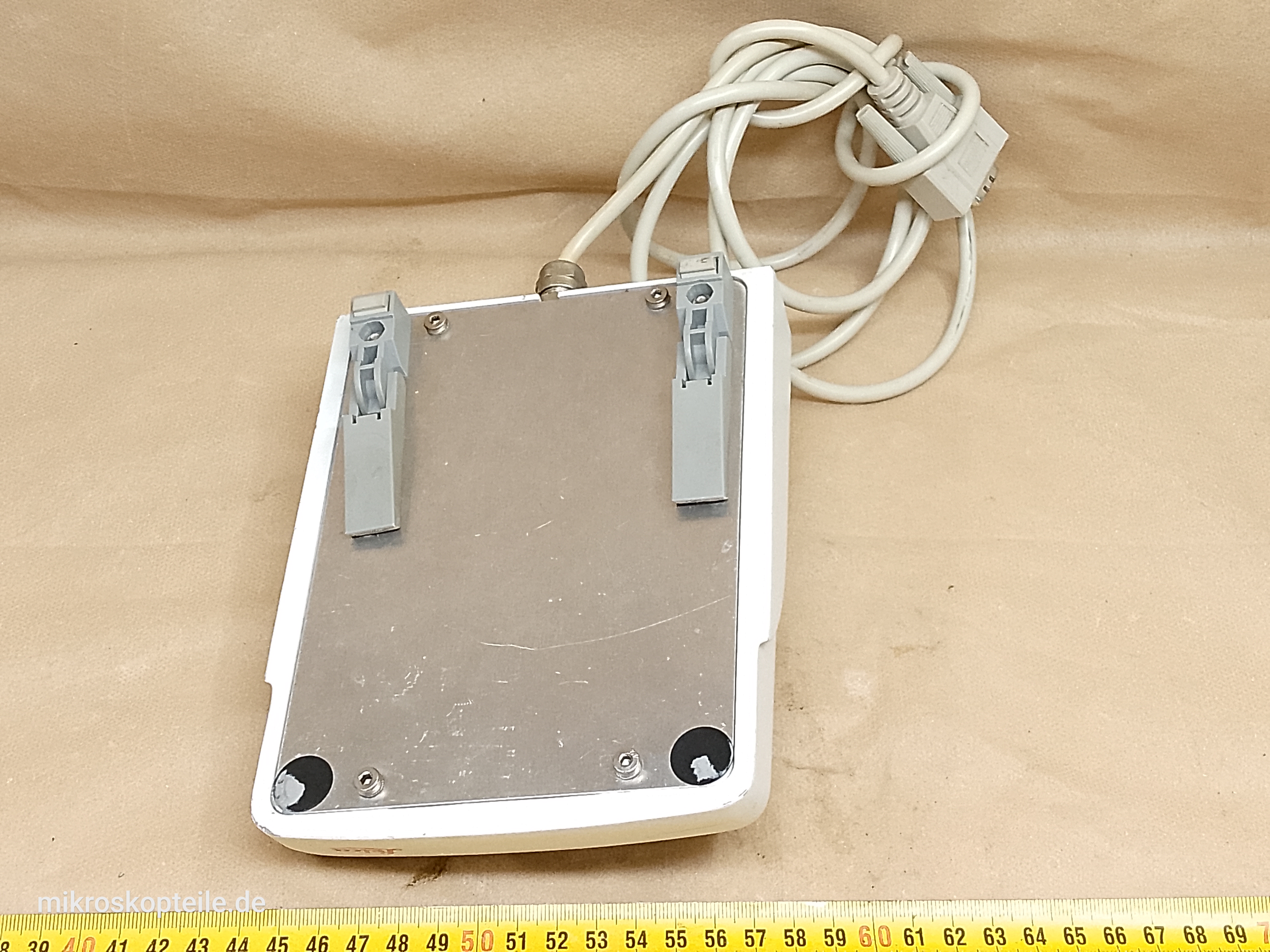

Connection: the panel is fitted with a cable terminated in a 9-pin D-Sub socket (DB9, female)

The control panel offered here is an add-on component for the Leica DSC1 microtome. It gives fuller control over the sectioning parameters than the buttons on the front of the microtome housing.

This panel provides the following functions:
- setting the section thickness (SECT) and the trimming thickness (TRIM) in µm with the "-" and "+" keys
- adjusting the sectioning speed with the SPEED knob
- switching the operating mode with the TRIM/SECT key
- automatic approach of the block to the knife (AUTO APPROACH)
- starting and stopping the cutting motion with RUN/STOP pressed together with ENABLE
- moving the object head to the specimen change position (CHANGE OBJECT)
- coarse feed towards and away from the knife, at two speeds
- storing the working position with the SET key and returning to the base position (HOME)
- two three-digit displays, TRIM and SECT, showing the thickness in µm or the speed
- indicator lamps for drive status (MOT), stop (STOP), base position (HOME) and emergency stop (E-STOP)
- connection to the main unit of the microtome by a cable with a D-Sub 9-pin connector

Because this is an external component (plugged into the DB9 socket of the microtome), it is very often missing from microtomes offered on the second-hand market.

What is this part needed for?

• if you have a Leica DSC1 microtome without the external control console
• if you have such a console but it is damaged or in very poor condition
• if you want to keep this control panel as a spare

What category does this part belong to?

Extras [ link ] [More Extras]

Who manufactures this part?

• Leica - Leica Microsystems GmbH [ link ] [More Leica]
• Leica Wetzlar
• 46

What microscope does this part come from?

Mikroskop Leica model [ link ]

What microscopes or components is this part compatible with?

• Leica model
