Olympus 10 - DIC Prism for MSPlan 10x RMS Microscope Objective | BH2-NIC EPI Reflected Light Nomarski DIC - photo gallery

This is description of this part:

Nomarski interference contrast prism (NIC / Nomarski DIC) Olympus 10 for reflected light (EPI) work with Olympus MS Plan 10x objectives.

Basic technical parameters of the prism:
Manufacturer: Olympus (Japan)
Marking: 10 Olympus
Serial number: 201738
Supported objective: Olympus MSPlan 10 0.30 ∞/- f=180 (manufacturer catalog number: 1-LM530)
Male thread: RMS
Female thread: RMS
Contrast method: Nomarski interference contrast (abbreviation: NIC)
Illumination: a compatible reflected light (EPI) illuminator is required

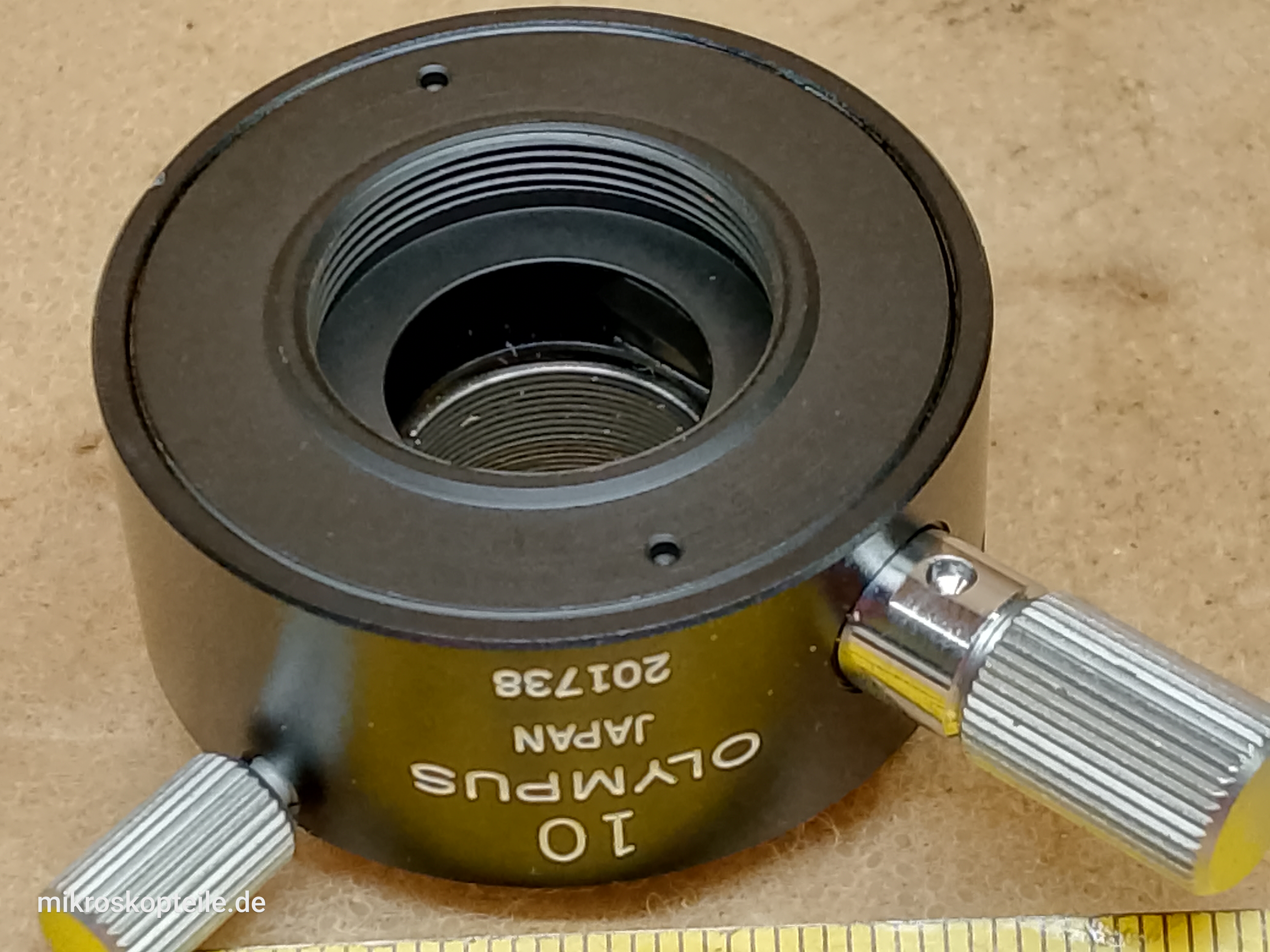

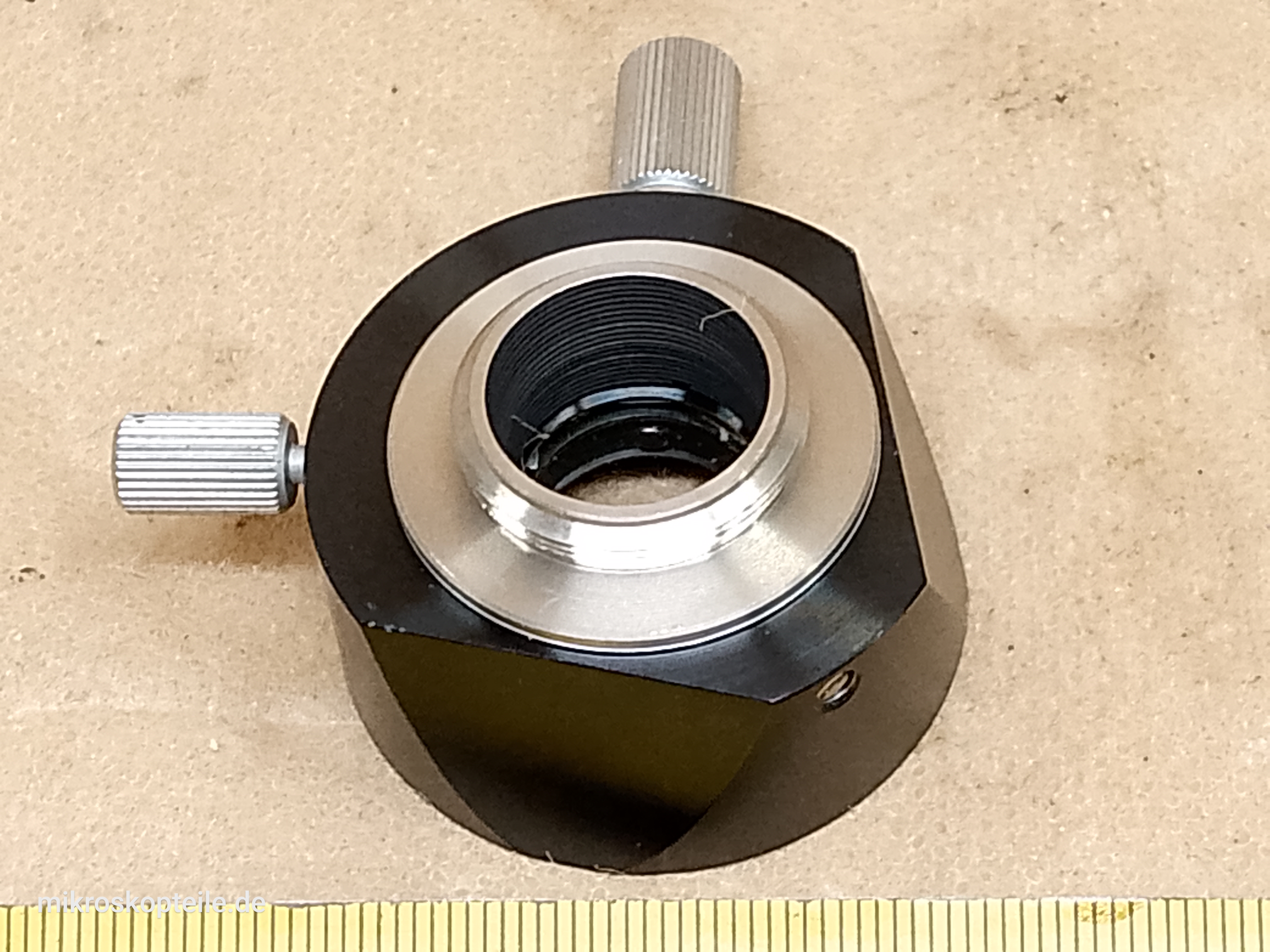

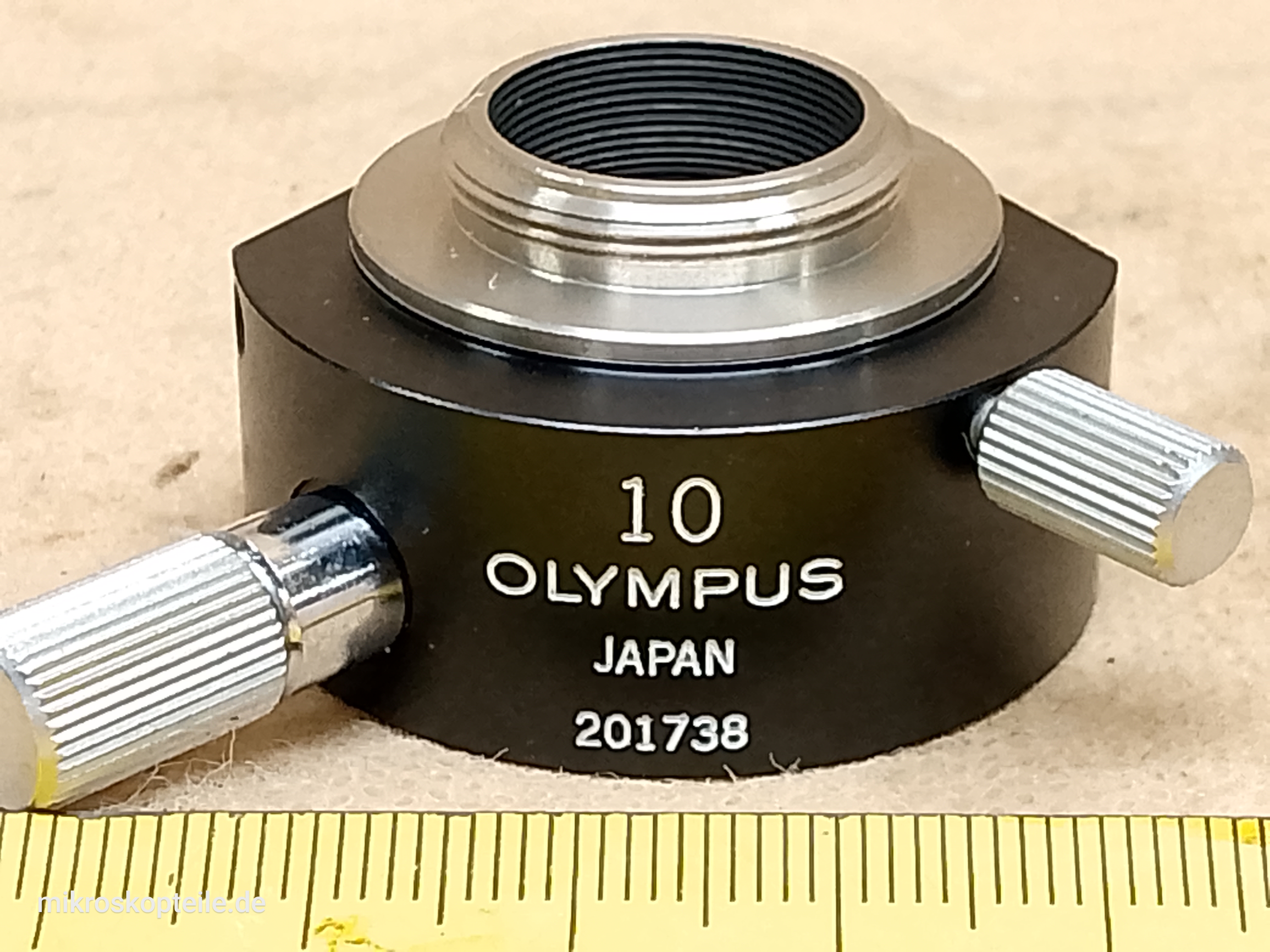

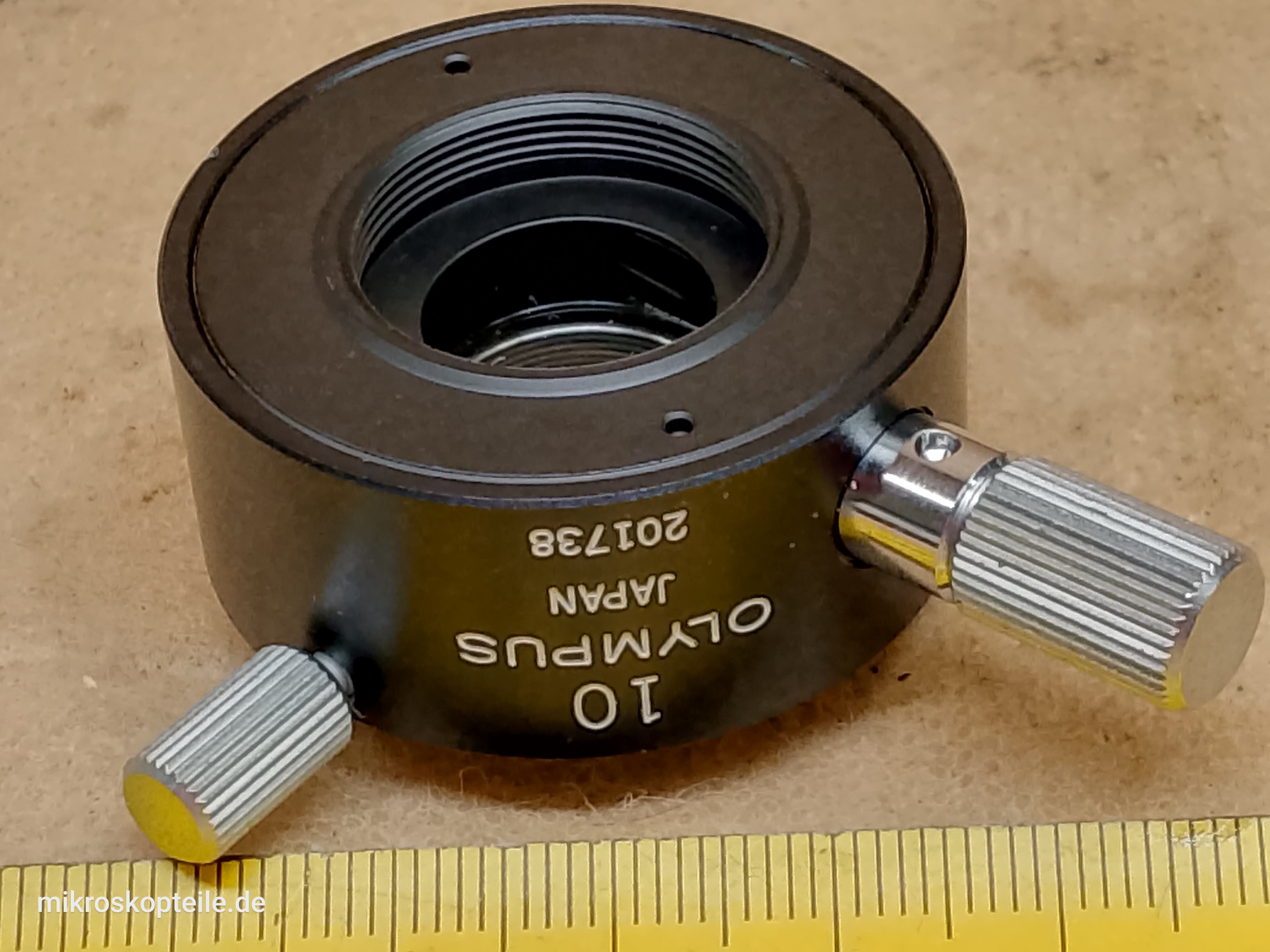

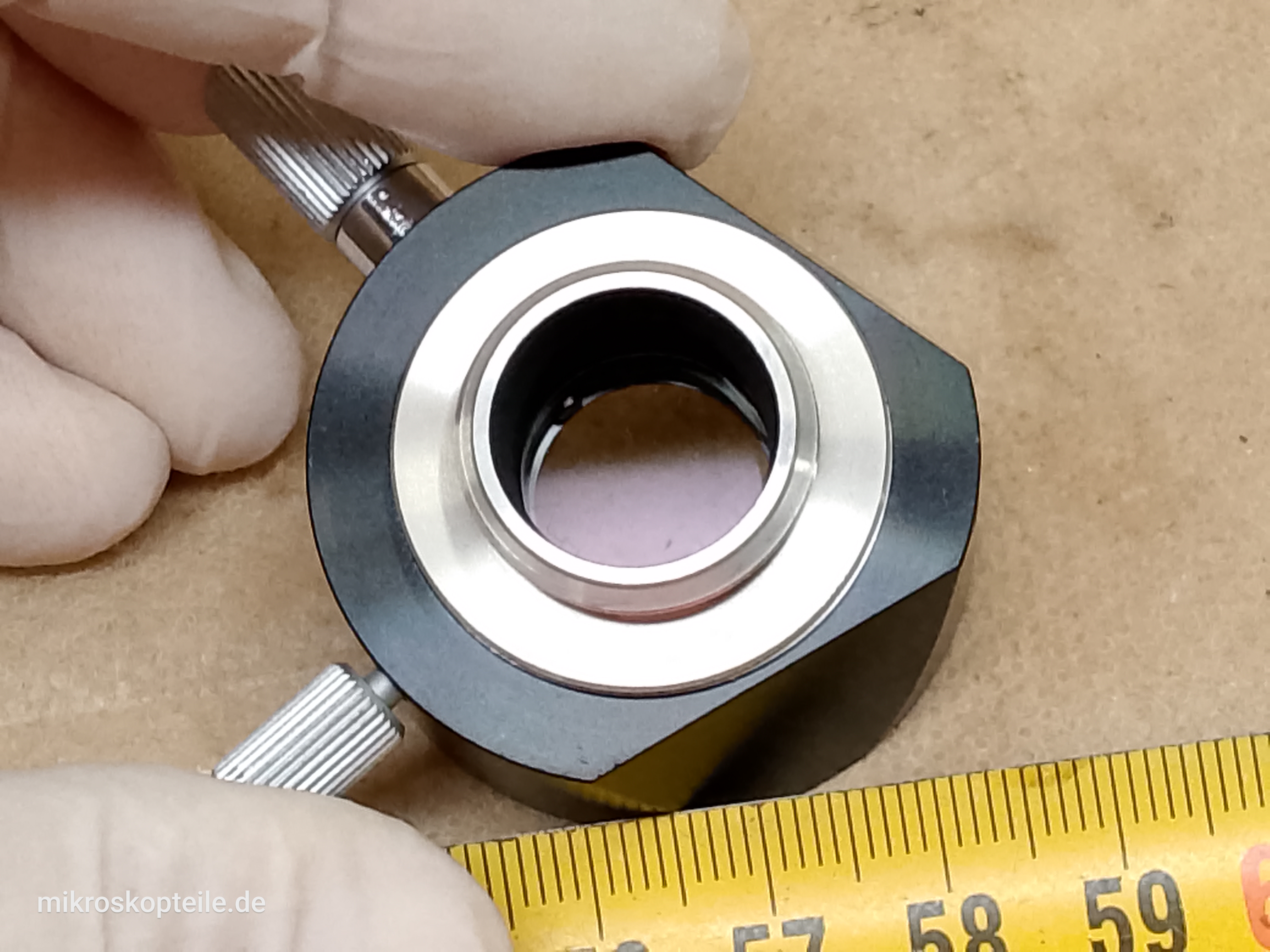

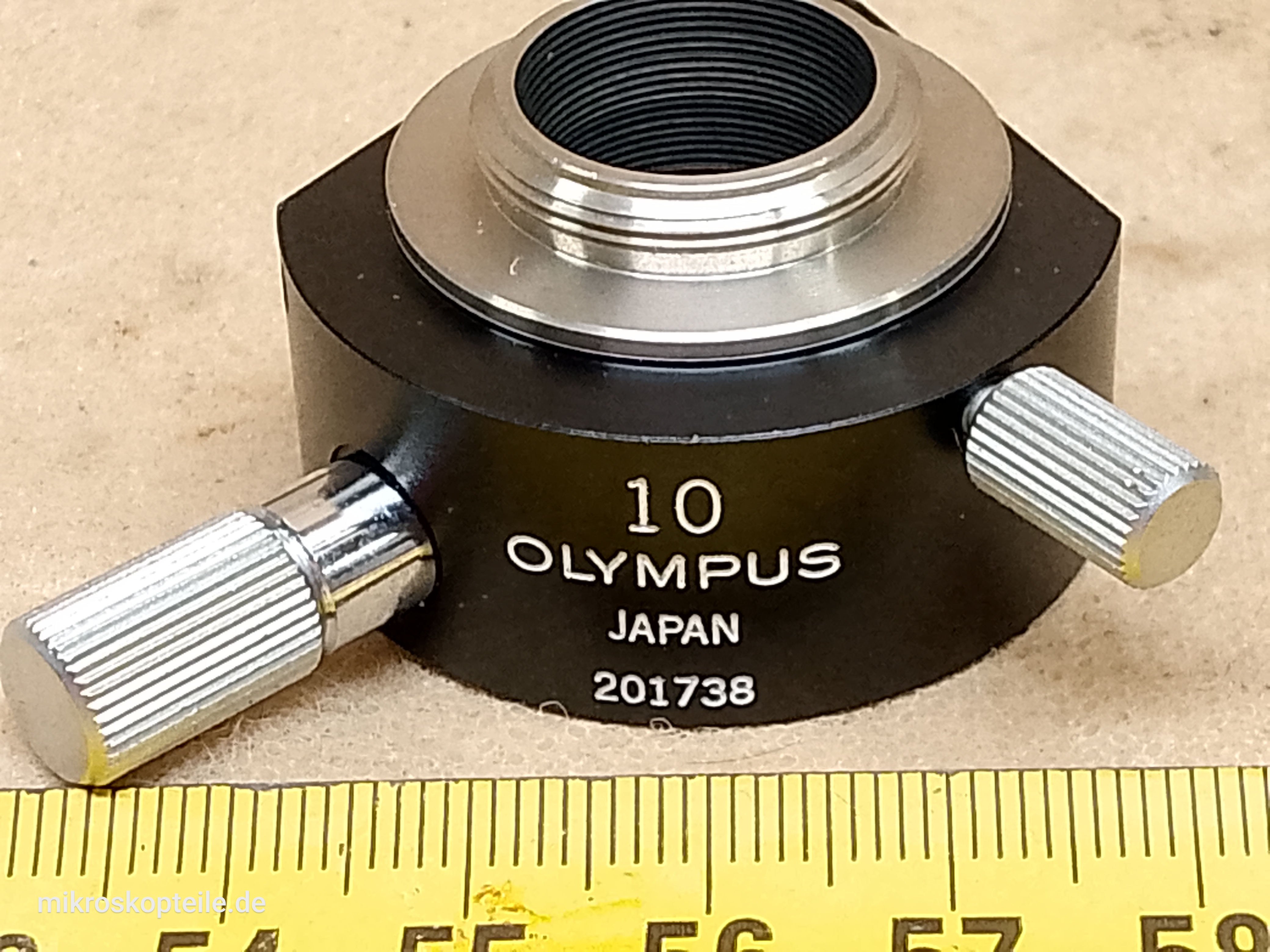

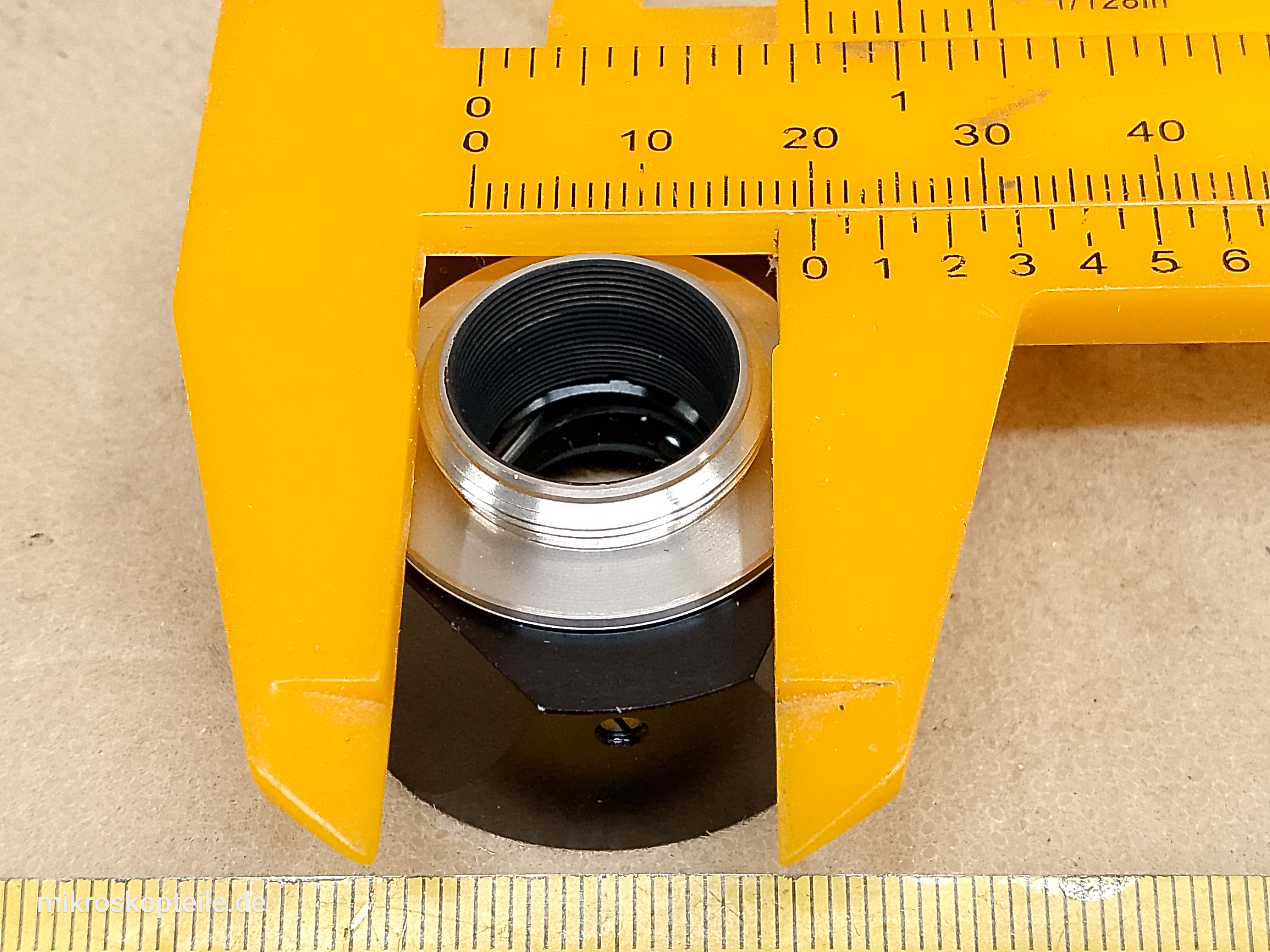

The prism is housed in a suitably shaped metal casing. On one side there is a male thread, on the other a female thread. Mechanically, the prism is screwed with its male thread into the objective nosepiece - and the Olympus MSPlan 10 0.30 ∞/- f=180 objective is screwed into its female thread.

This prism is essential for reflected light observation using the DIC technique. With this technique, details of the observed surface appear three-dimensional and raised, revealing details that remain invisible in classic reflected light brightfield.

What is this part needed for?

• if you own an Olympus microscope with a compatible reflected light (EPI) illuminator and the only thing missing for a complete DIC / NIC system for the 10x objective is this particular prism
• if you have such a prism but it is damaged, e.g. delaminated, cracked or scratched
• if you like to be prepared and want to keep such a prism as a spare
• if you do not have a complete Olympus DIC / NIC system yet but are building it piece by piece and this is one of the missing elements

What category does this part belong to?

Prisms [ link ] [More Prisms]

Who manufactures this part?

• Olympus - Olympus Corporation Tokyo Japan [ link ] [More Olympus]
• Olympus Tokyo
• Olympus Japan
• Olympus Tokyo Japan
• Olympus Optical Co., Ltd.
• Olympus Corporation.

What microscope does this part come from?

Mikroskop Olympus BH-2 BHS [ link ] [More from BH-2 BHS]

What microscopes or components is this part compatible with?

• Olympus BH-2
• Olympus BH-2 BHS
• Olympus BHA
• Olympus BHM
• Olympus BH-2 BHTU
• Olympus BH
