Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel - photo gallery
The gallery contains photos from various perspectives as well as close-ups of this microscope part. Clicking the "Open photo" button will display additional information.
SERMIK_ID: 99874

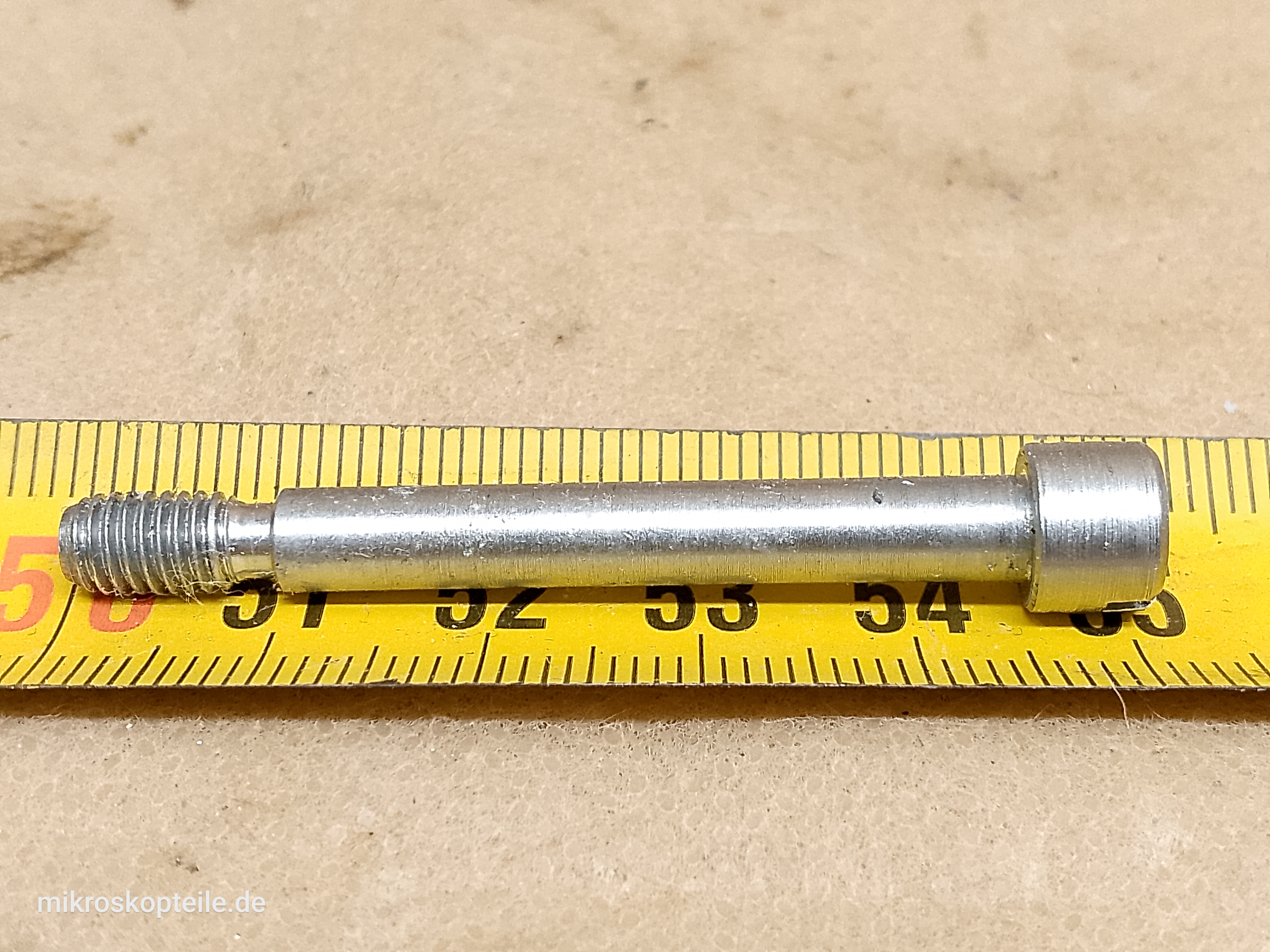

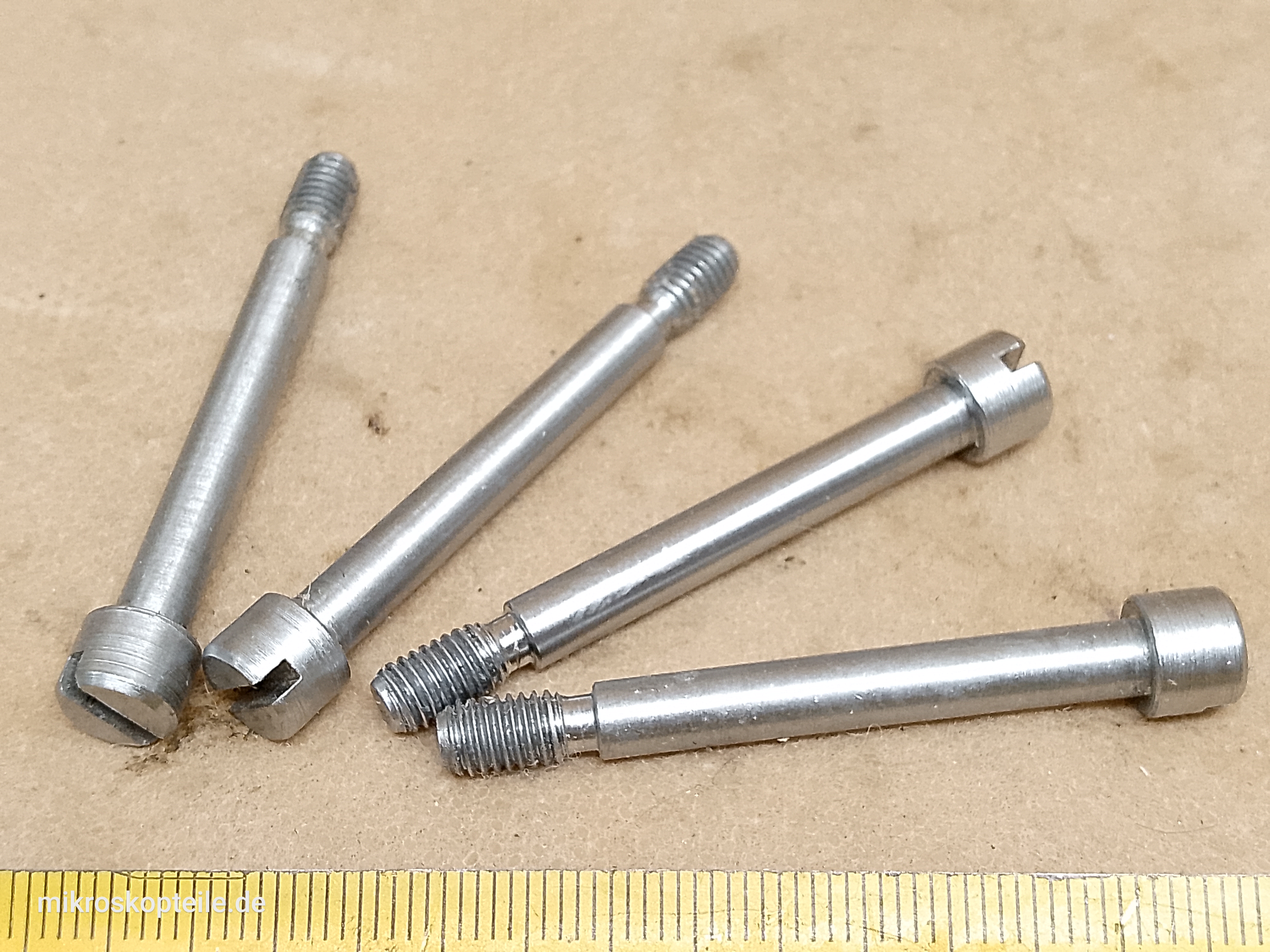

Photo #1 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel
Photo #2 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel

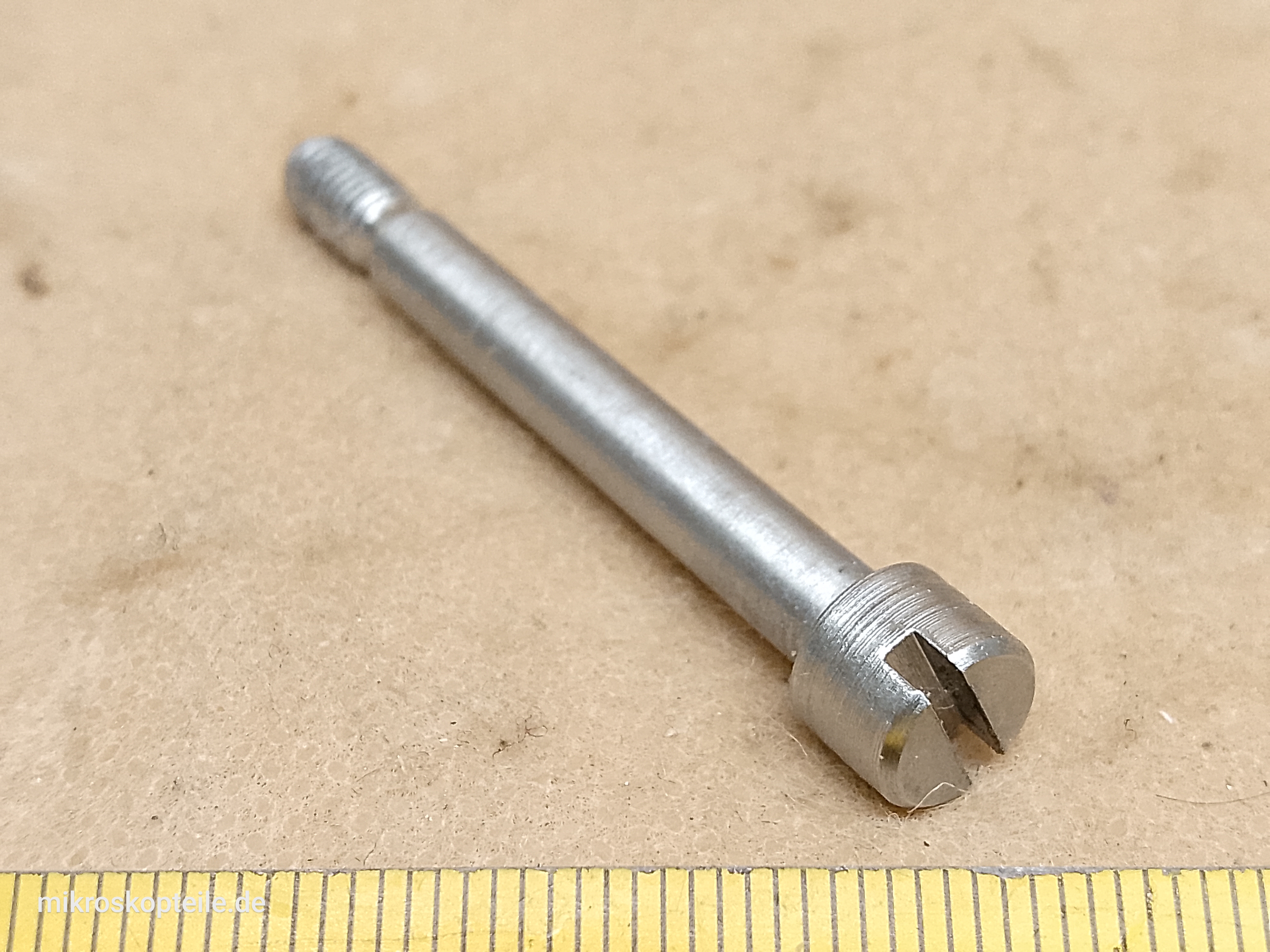

Photo #3 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel

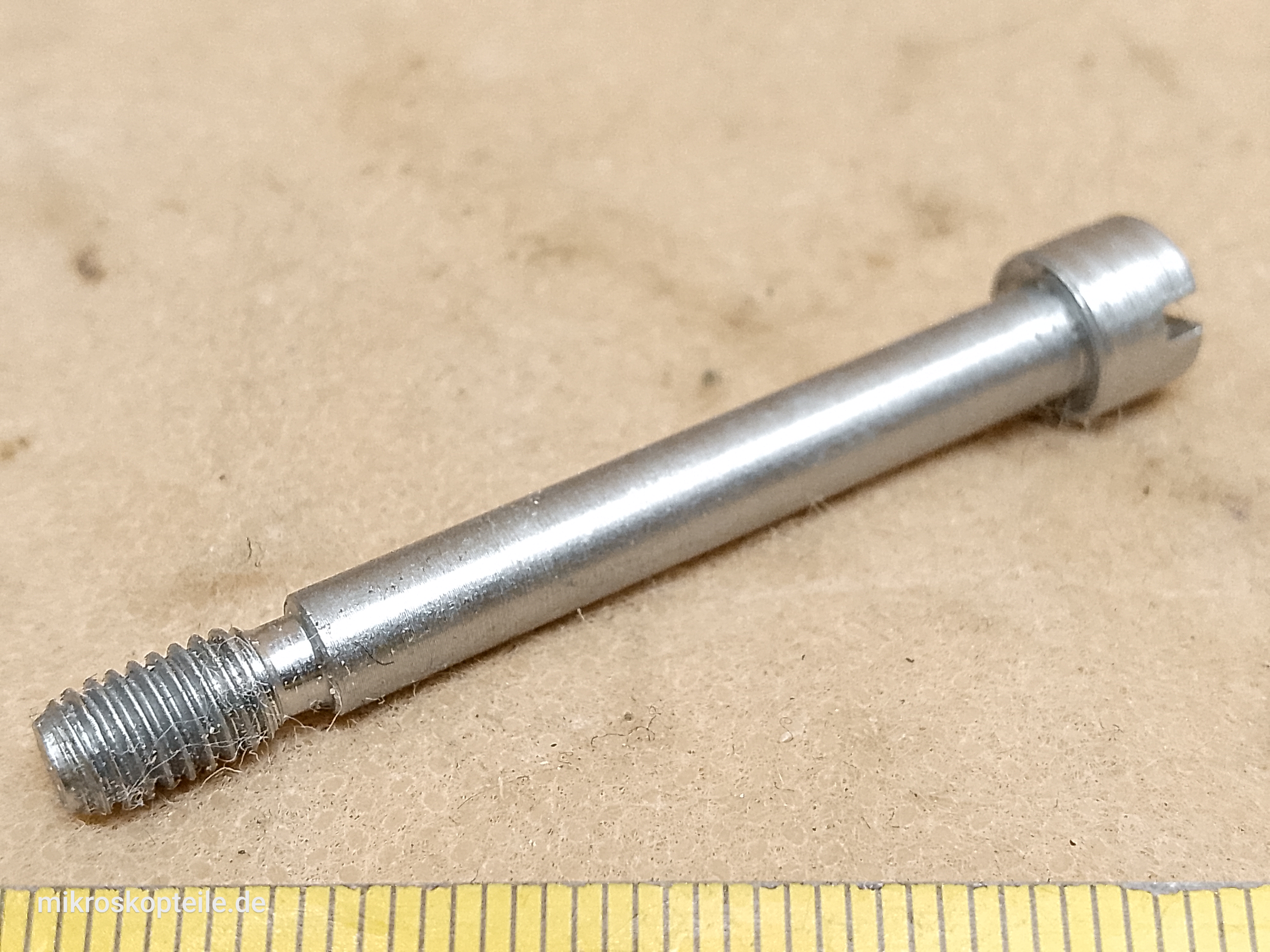

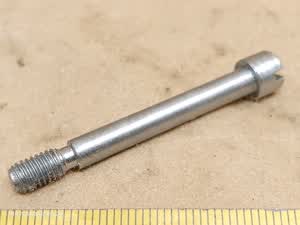

Photo #4 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel

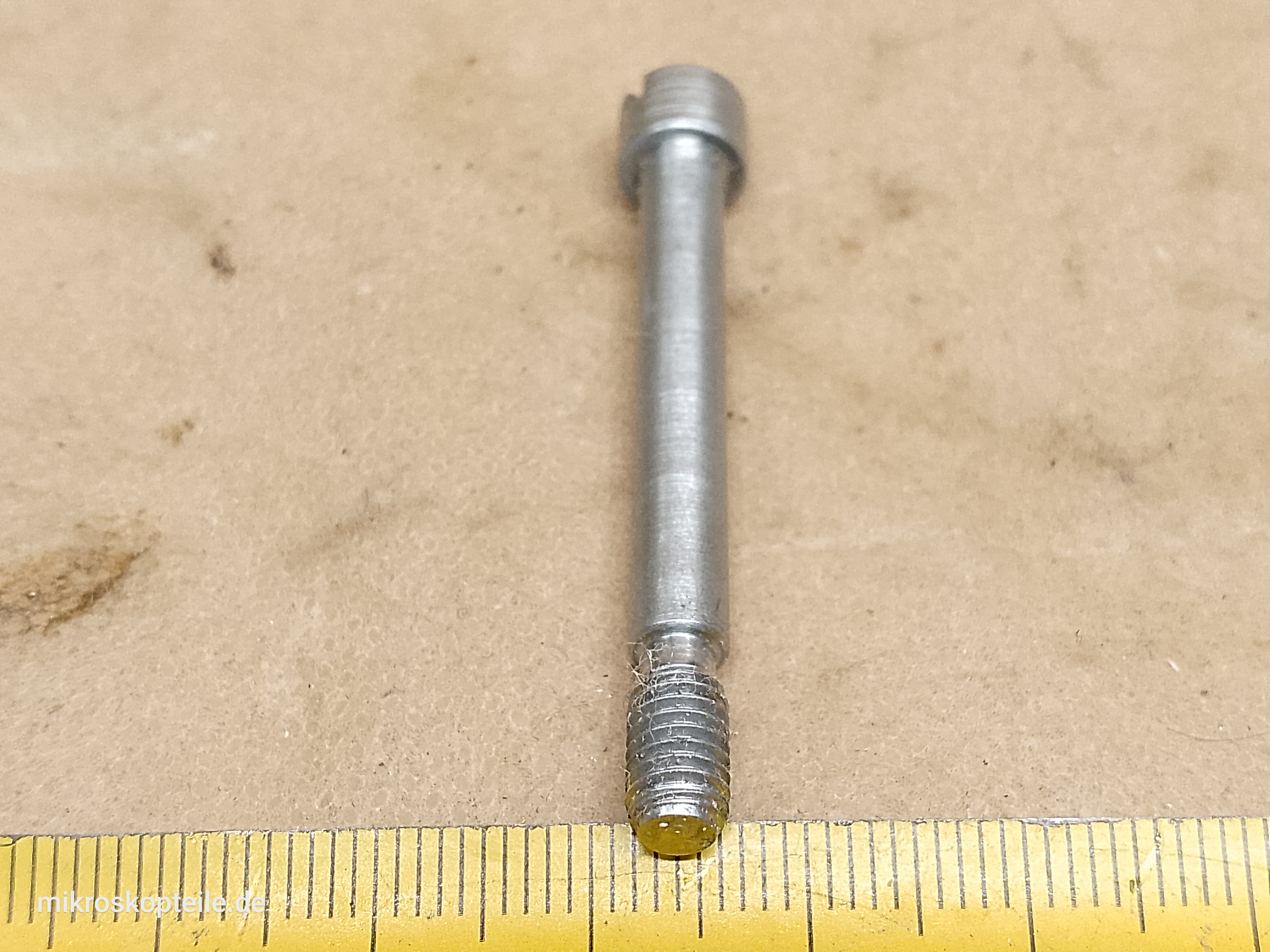

Photo #5 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel

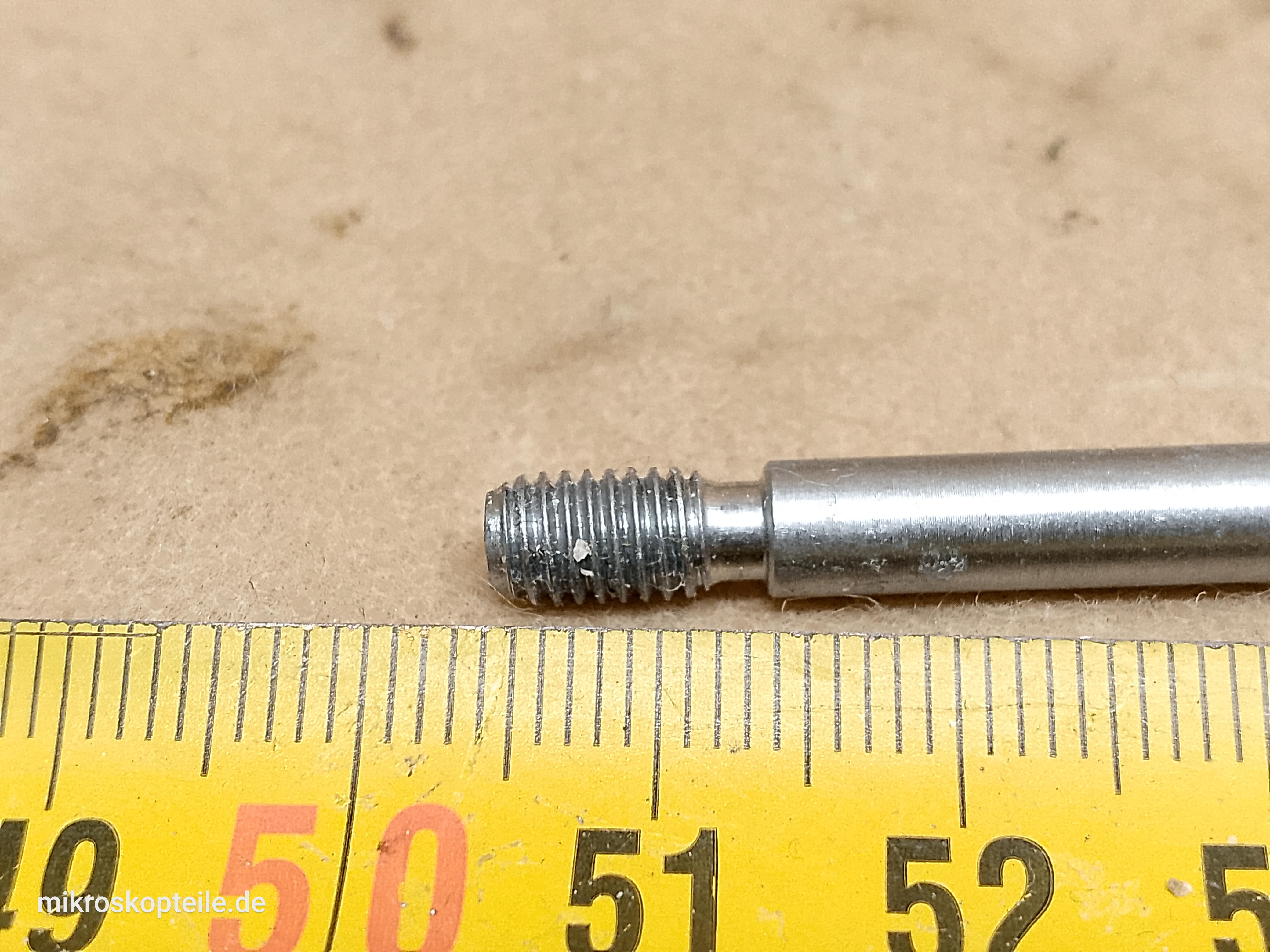

Photo #6 - Carl Zeiss Jena Jenaval / Jenapol microscope lamphouse mounting screws | Jenalumar illuminator compatibel
This is description of this part:
Mounting screws for the illuminator on Carl Zeiss Jena Jenaval microscopes and similar models.
I offer 4 identical screws here. Also available singly.
These screws fit the following Carl Zeiss Jena microscopes:
- Carl Zeiss Jena Jenaval
- Carl Zeiss Jena Jenalumar
- Carl Zeiss Jena Jenapol
- Carl Zeiss Jena Jenavert
The so-called "small illuminators", that is the halogen 25W one (like this: https://www.microscopeparts.eu/gallery/99693) or the HBO 50W, are held by two such screws. Large HBO 250W illuminators with an integrated power supply are mounted on 4 such screws.
If your microscope has only one small illuminator (for example a Jenaval with transmitted light or a Jenavert with EPI illumination), you can extend it with a second (also small) illuminator. You will then need two screws for that.
What is unusual (and sometimes the reason why a user cannot find these screws for a long time) is that they are unscrewed FROM THE FRONT of the microscope. The heads of these screws sit in openings cut into the white sheet-metal side covers of the microscope. You can see these covers with the screw openings here: https://www.microscopeparts.eu/gallery/99692.
What is this part needed for?
- if such a screw is missing, has bent, broken off or been lost
- if you are extending your microscope with a second illuminator and have no mounting screws for it
- What category does this part belong to?
- Screws [ link ] [More Screws]
- Who manufactures this part?
-
- Carl Zeiss Jena - VEB Carl Zeiss Jena DDR (former East Germany) [ link ] [More Carl Zeiss Jena]
- ausJena
- aus Jena
- What microscope does this part come from?
- Mikroskop Carl Zeiss Jena Jenaval [ link ] [More from Jenaval]
- What microscopes or components is this part compatible with?
-
- Carl Zeiss Jena Jenaval
- Carl Zeiss Jena Jenalumar
- Carl Zeiss Jena Jenavert
- Carl Zeiss Jena Jenapol
