Carl Zeiss Jena CF-250 Fototubus - Jenamed / Jenaval microscope Bertrand lens | internal mechanism with knob
Main Photo
Description

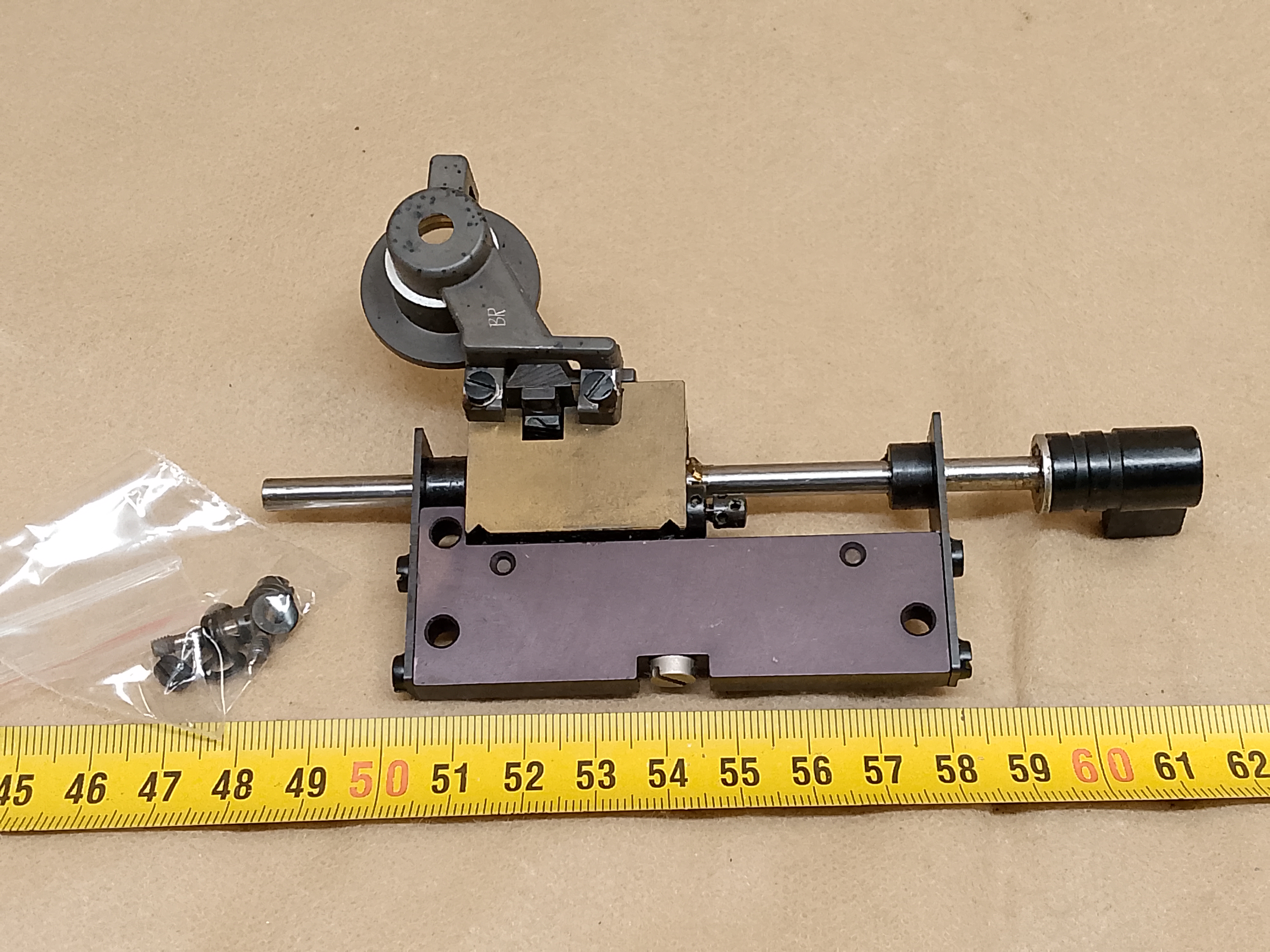

Carl Zeiss Jena CF-250 Fototubus - Jenamed / Jenaval microscope Bertrand lens | internal mechanism with knobComplete mechanism for operating the Bertrand lens. The lens is located inside the photo tube of Carl Zeiss Jena microscopes of the CF-250 series.
- assembly of two lenses
- knob for moving and shifting the lenses
- mechanism for moving and shifting the lenses
Metal, cast or injection-molded parts manufactured by Carl Zeiss Jena have their own identification numbers. In this mechanism the lens is mounted on a cast part marked with number 2582 (full marking: Si10 CZ 2582).
This is a service element (repair part) of the trinocular head (photo tube), suitable for Carl Zeiss Jena microscopes of the CF-250 series. Please note that this is an element (component) of a microscope part (German: "Fototubus") and not a part dedicated to a specific microscope model.
Carl Zeiss Jena microscopes of the CF-250 series have a modular design and the microscope part to which the eyepieces are mounted (commonly referred to as "head", "binocular" or "twin tube") is a separate element from the angle tube (sometimes the German term "Winkeltubus" is used). If the angle tube has a photographic output, it is referred to as a "photo tube". The Bertrand lens offered and described here is intended specifically for this microscope part.
Hinweis - Carl Zeiss Jena microscopes Jenapol and Jenatech, although they also belong to the CF-250 series, have a differently designed photographic output and this mechanism DOES NOT FIT these models.
Hinweis - Carl Zeiss Jena also produced a simplified version of the photo tube which does not contain a Bertrand lens inside. In the image gallery there is also a page from the manufacturer's catalog so that it is visible whether these versions differ externally in appearance. This Bertrand lens shown and offered here CANNOT be installed in such a simplified version of the photo tube.
The photos visible in the gallery show the exact dimensions of the element described and offered here. Additionally, in the last photo an arrow indicates which element is concerned and where it is located in the head, in order to clearly identify this part.
In common usage many names are used for the photo tube. It is worth listing them here - each of them refers to the same microscope part.
- photo head
- trinocular head
- trinocular microscope head
- trinocular head assembly
- photo dome
- inclined tube with photo output
Manufacturer
Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts
It comes from
Why do you need this?
- as a service part for replacing the entire element if this mechanism or any of its components in your microscope is damaged or in very poor condition
Compatibility
This microscope part is compatible with the following microscope models:
- Carl Zeiss Jena CF-250 Fototubus
- Carl Zeiss Jena Jenamed
- Carl Zeiss Jena Jenaval
- Carl Zeiss Jena Jenalumar
- Carl Zeiss Jena Jenavert
- Carl Zeiss Jena Jenamed-2
- Carl Zeiss Jena Jenamed Fluorescence
