More about part: Carl Zeiss Jena Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part (ID: 99431)


Carl Zeiss Jena Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

Carl Zeiss Jena Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part
Carl Zeiss Jena Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part
Photo gallery Video

Description

Carl Zeiss Jena Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part

Service microscope part (repair element) for Carl Zeiss Jena Ergaval / Amplival microscopes and related models.

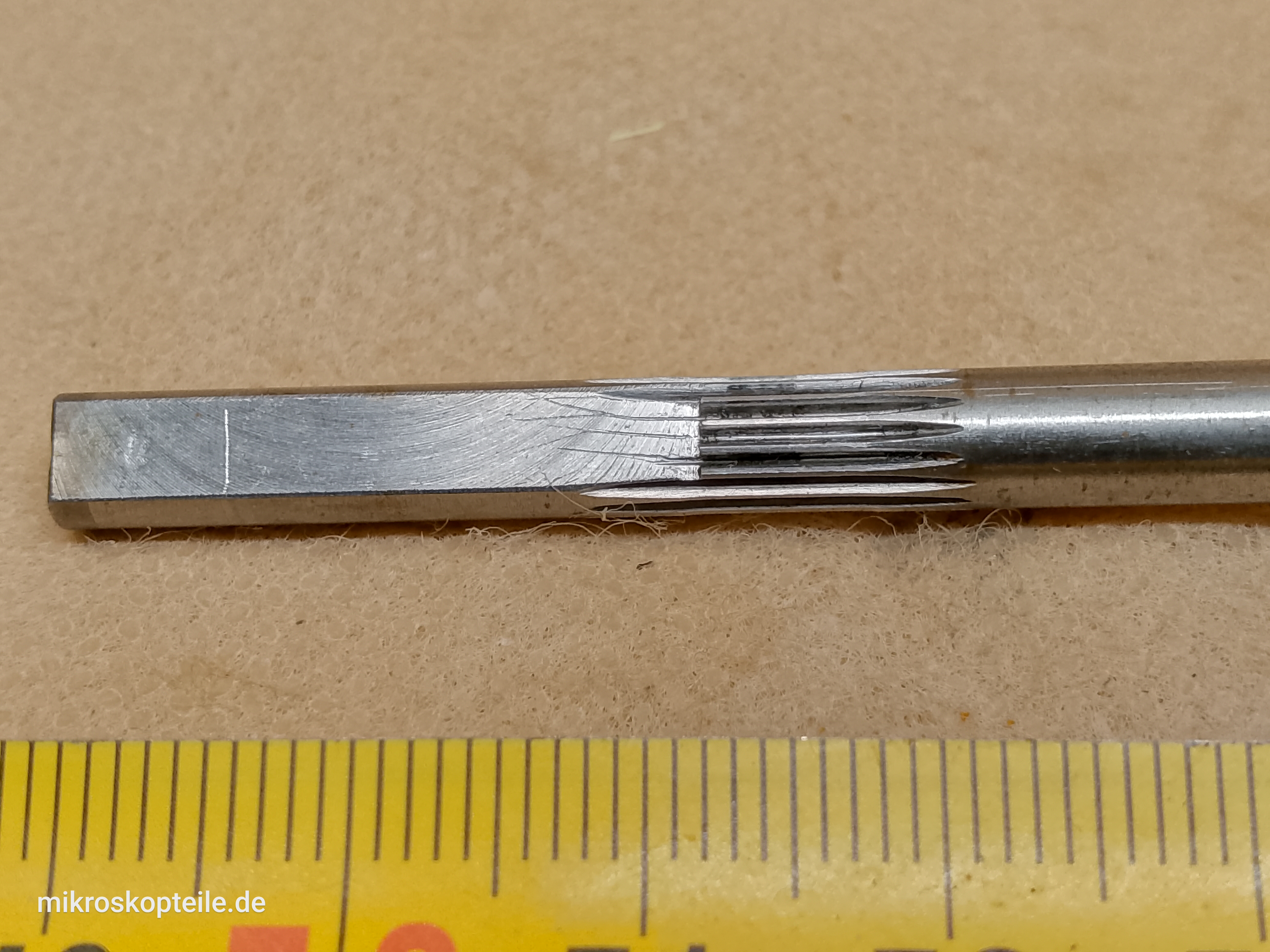

This is the coarse and fine focus shaft, meaning the shaft with focusing knobs mounted on both ends on the sides of the microscope. Part of this shaft contains a toothed rack, or more precisely speaking, it is a toothed shaft. In the item shown and offered here, the fine focus knob (micro focus) is mounted on the left end of the shaft. Please note that the left and right knobs are identical - however, screws of different lengths are used to attach them: the left knob is attached with a 12 mm screw, while the right knob uses a 16 mm screw. Detailed information about the screws used to attach the coarse and fine focus knobs can be found here: [[ LINK ]]

Such focus shafts are used in the following microscopes:
- Carl Zeiss Jena Ergaval
- Carl Zeiss Jena Amplival (and its variants: Fluoval, Epival, Vertival, Interphako)
- Carl Zeiss Jena Metaval
- Carl Zeiss Jena Docuval


This coarse and fine focus shaft may help solve the following problems in Carl Zeiss Jena Ergaval / Amplival microscopes and related models:

  • if the shaft became bent, causing a noticeable jump while rotating it (a very common failure)
  • if the screw holding the fine focus knob broke off or snapped, leaving part of the screw inside the shaft
  • if the left fine focus knob is missing or damaged
  • if the thread on the right or left end of the shaft, where the fine focus knobs are attached, is damaged
  • if the toothed rack on the shaft (because such a shaft is effectively a toothed shaft) becomes damaged

Manufacturer

Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts

It comes from

Carl Zeiss Jena Ergaval ➔ All parts

Why do you need this?

  • as a service element in the form of replacing the complete assembly if exactly this element or one of its component parts is damaged in the repaired microscope

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Carl Zeiss Jena - Ergaval / Amplival microscope coarse and fine focus shaft | repair spare part

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Carl Zeiss Jena (VEB Carl Zeiss Jena DDR (former East Germany))

Is this microscope component new?

NO - this item was removed from Carl Zeiss Jena Ergaval microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Carl Zeiss Jena Ergaval
  • Carl Zeiss Jena Amplival
  • Carl Zeiss Jena Docuval
  • Carl Zeiss Jena Vertival
  • Carl Zeiss Jena Epival
  • Carl Zeiss Jena Metaval
  • Carl Zeiss Jena Fluoval
  • Carl Zeiss Jena Fluoval-2

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • as a service element in the form of replacing the complete assembly if exactly this element or one of its component parts is damaged in the repaired microscope

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
I have more than one piece
Since I have more than one of this item, please be advised that individual pieces may vary slightly. Upon request, I can send you a photo of a specific piece before ordering. You can contact me at email
