More about part: Carl Zeiss Jena Jenamed microscope stage (ID: 99463)

Description

Microscope stage for Carl Zeiss Jena Jenamed microscopes.

Compatible with the following Carl Zeiss Jena microscope models:
- Jenamed Variant
- Jenamed Cytology
- Jenamed Hematology
Carl Zeiss Jena Jenamed 2 and Jenamed Histology microscopes already use different stages.

This particular example shown and offered here was removed from a Carl Zeiss Jena Jenamed Cytology microscope.

The stage in Carl Zeiss Jena Jenamed microscopes is a flat, smooth surface permanently attached with screws to the microscope body, onto which cross table mechanisms or specimen holders are mounted - various versions depending on individual needs.

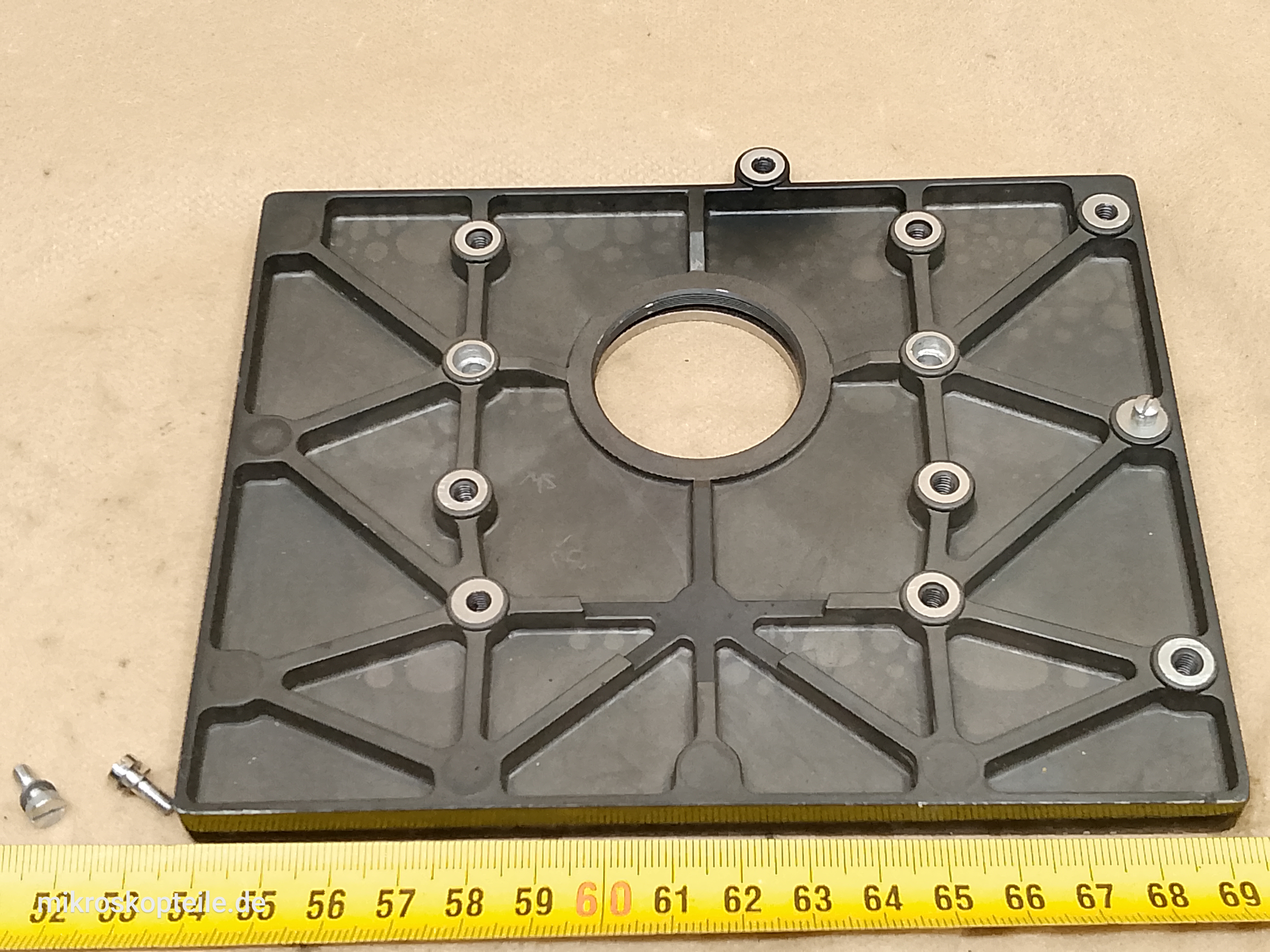

Mechanically, this stage consists of two elements:
- a smooth upper steel surface attached to the cast form underneath
- the lower cast form (with manufacturer number), which is attached to the microscope body
Both parts have an opening for the microscope condenser. The condenser is mounted from the underside of the stage (condenser available separately).

Metal cast or injection-moulded microscope parts made by Carl Zeiss Jena have their own numbers. This part carries the number 2712 (full marking: Si10 CZ 2712).

In the last photo I indicate with an arrow exactly which element it is and where it is located in the microscope.
