More about part: Carl Zeiss Jena Jenaval / Jenamed CF-250 Fototubus - microscope trinocular photo holder | glass with green anti-reflective coating (ID: 99127)

Description

This is a connector used to mount a photo tube (output on the third optical path) to the microscope stand or to the angled tube with photo port in Carl Zeiss Jena CF-250 series microscopes.
Note that this element is a component of a microscope element (the angled tube with photo port) and not a part dedicated to a specific microscope model.

This element fits, among others, the following Carl Zeiss Jena microscopes from the CF-250 series:
- Jenamed
- Jenaval
- Jenalumar
- Jenavert
- Jenatech
- Jenapol

Important: the element DOES NOT INCLUDE the screw used to secure the microscope head.

Inside this element there is a protective glass (without its own magnification, so called "zero lens") with a green anti-reflection coating.
Although this holder at the photographic port and the holder for the binocular microscope head look the same, have the same dimensions and are mechanically compatible - they are NOT (!) identical.
- the binocular microscope head mount contains a protective glass with a violet anti-reflection coating
- the mount located at the photographic port contains a protective glass with a green anti-reflection coating.

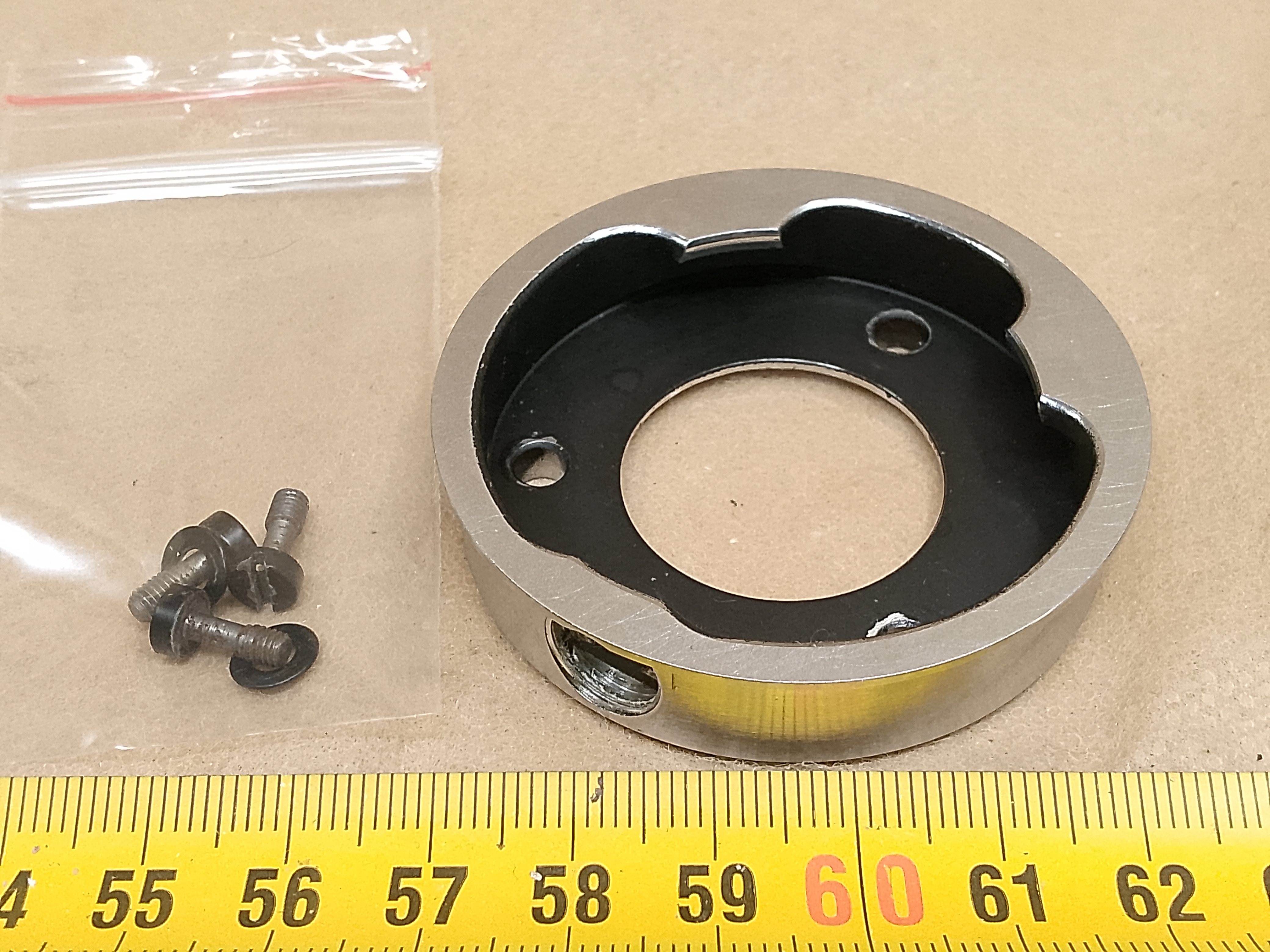

The photos visible in the gallery show the exact dimensions of the element described and offered here. Additionally, in the last photo an arrow indicates which element is being referred to and where it is located in the microscope head, in order to clearly identify this part.
