More about part: Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head (ID: 99669)


Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head
X.com Facebook Pinterest Markdown Media-Markdown

Main Photo

Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head
Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head
Photo gallery

Description

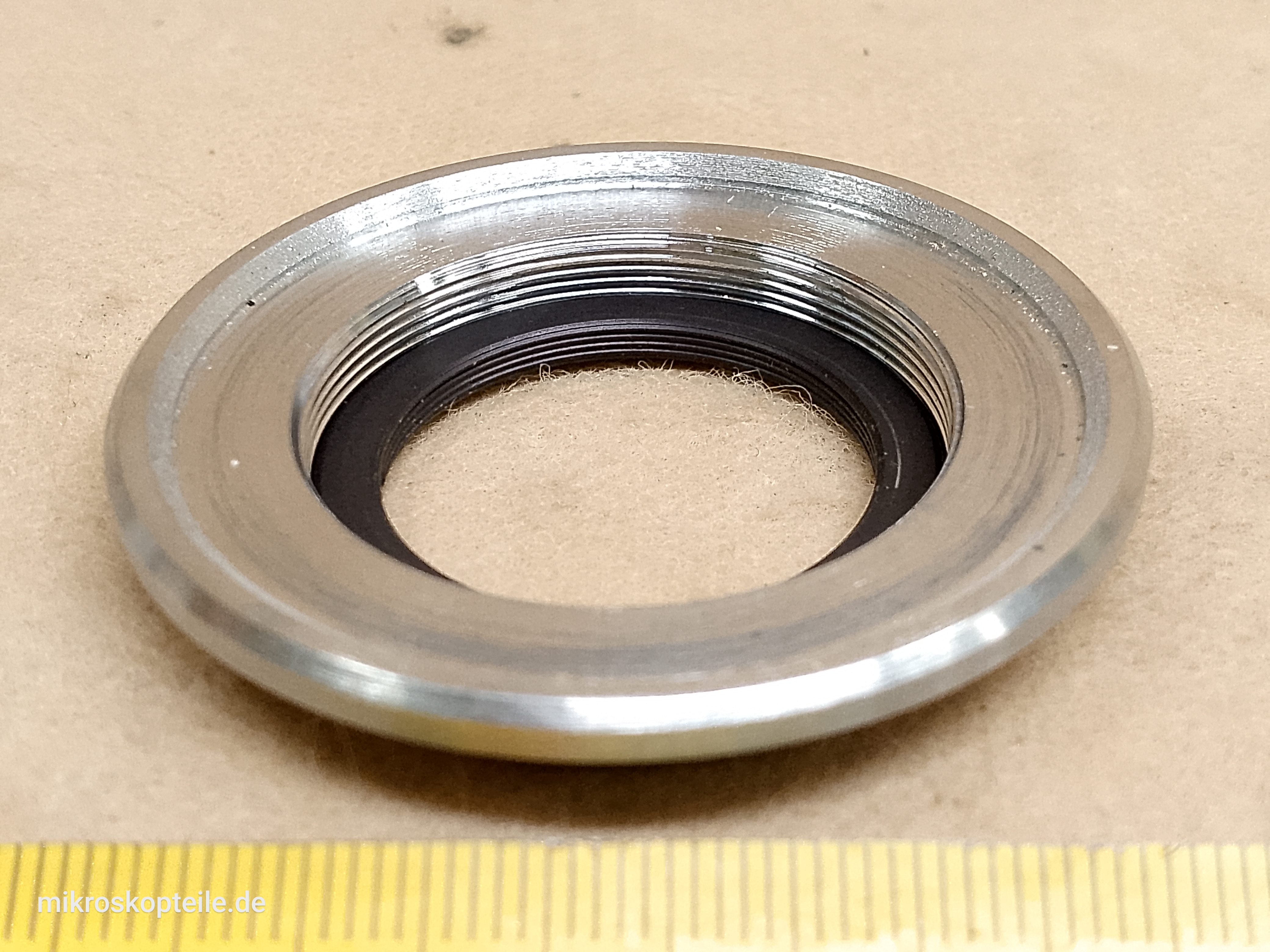

Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head

Dovetail mounting connector for the wide-field (German: Grossfeld) binocular head used on Carl Zeiss Jena microscopes.

This microscope component secures the microscope head to the microscope.

Basic specifications:

Mount type
dovetail
Diameter
41 mm, the Carl Zeiss Jena and Lomo standard
Internal thread
34 mm


The last photograph in the gallery shows a complete binocular head. An arrow indicates exactly which component is being offered and where it is located on the head, making visual identification straightforward.

This is a component of the microscope head rather than of any specific microscope model.

This component fits 30 mm binocular heads used, among others, on the following microscopes:
- Carl Zeiss Jena Jenamed
- Carl Zeiss Jena Jenalab
- Carl Zeiss Jena Jenaval
- Carl Zeiss Jena Jenatech
- Carl Zeiss Jena Jenalumar
- Carl Zeiss Jena Jenavert

▼ More about this microscope part

This 41 mm Carl Zeiss Jena dovetail mounting standard is commonly used:
- if you want to perform a DIY conversion and mount a microscope head from another manufacturer onto a Carl Zeiss Jena or Lomo microscope
- if you want to connect another dovetail-mounted accessory to a Carl Zeiss Jena or Lomo microscope, such as an Optovar magnification changer, a polarisation intermediate tube, a DIC head or an EPI reflected-light illuminator
- if you want to use the 34 mm internal thread to mount a photographic tube for a camera

Manufacturer

Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts

It comes from

Carl Zeiss Jena Jenaval ➔ All parts

Why do you need this?

  • if this component is missing from your microscope head, which is possible because it can be unscrewed
  • additional examples of its use are described above

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Carl Zeiss Jena - Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Carl Zeiss Jena (VEB Carl Zeiss Jena DDR (former East Germany))

Is this microscope component new?

NO - this item was removed from Carl Zeiss Jena Jenaval microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Carl Zeiss Jena Jenaval
  • Carl Zeiss Jena Jenamed
  • Carl Zeiss Jena Jenalab
  • Carl Zeiss Jena Jenalumar
  • Carl Zeiss Jena Jenatech
  • Carl Zeiss Jena Jenavert

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if this component is missing from your microscope head, which is possible because it can be unscrewed
  • additional examples of its use are described above

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need Carl Zeiss Jena Jenaval / Jenamed microscope 41mm mounting dovetail for 30mm wide field binocular head (ID 99669) , just write at info@microscopeparts.eu
