More about part: Carl Zeiss Jena Lumipan microscope body with iris diaphragm, fine- and coarse focus block and condenser holder support dovetail (ID: 99599)

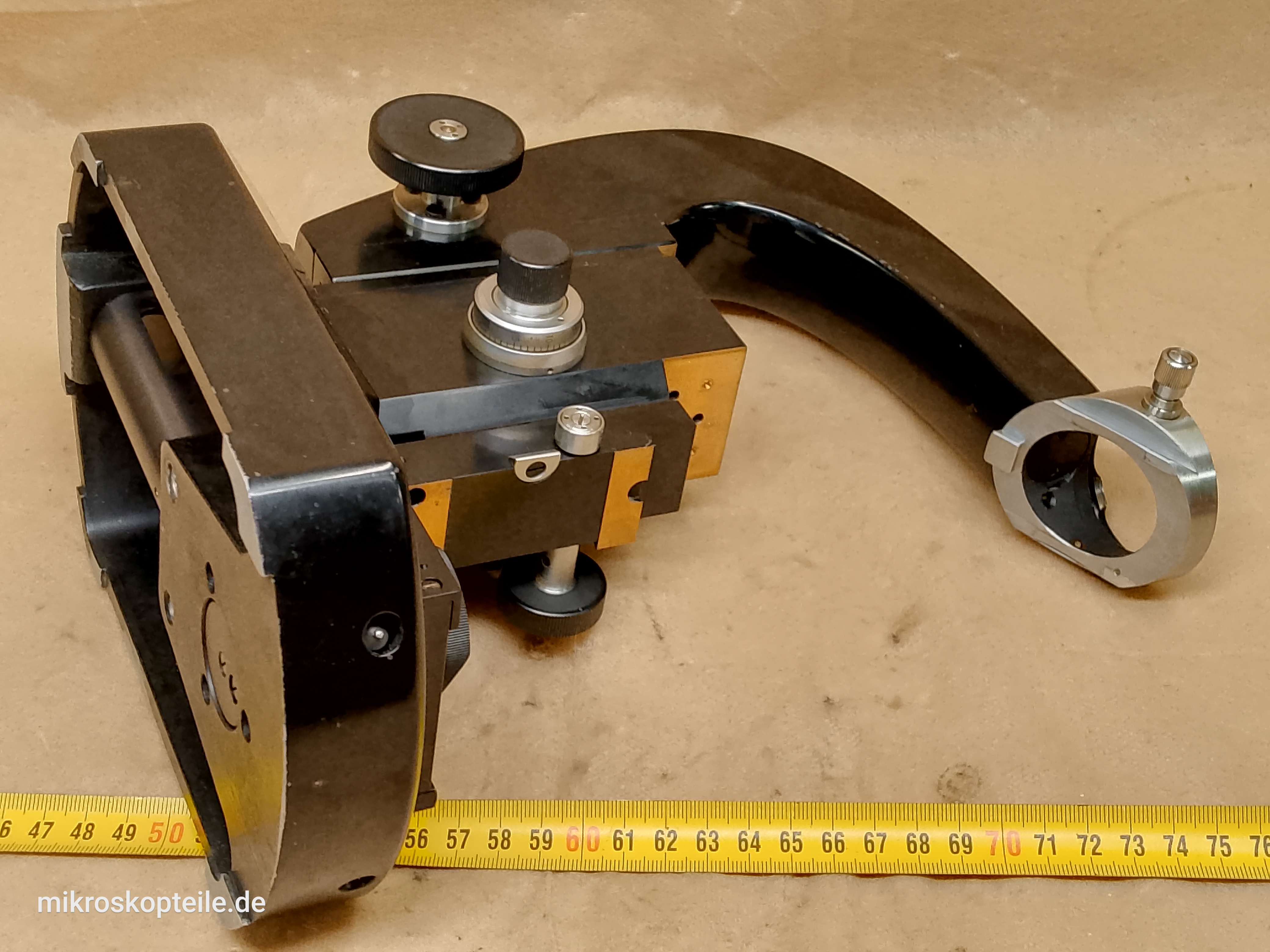

Carl Zeiss Jena Lumipan microscope body with iris diaphragm, fine- and coarse focus block and condenser holder support dovetail
Main Photo
Description
Carl Zeiss Jena Lumipan microscope body with iris diaphragm, fine- and coarse focus block and condenser holder support dovetailComplete stand (body) for the Carl Zeiss Jena Lumipan microscope.
This Carl Zeiss Jena Lumipan microscope stand includes:
- fine focus block with the control knobs
- coarse focus mechanism with the rack and control knobs
- microscope base with the rear illuminator port and a decenterable field diaphragm (iris diaphragm)
- stand arm with the microscope head mount and a dovetail guide for the interchangeable objective nosepiece
- dovetail guide with a rack and drive knob, together with the mounting module for a pankratic condenser or a clamp for mounting another condenser.
When can a complete microscope stand be useful?
- if you are building a microscope yourself and selecting every component so that the final configuration is exactly what you need
- if you own an older model (e.g. Carl Zeiss Jena Lg) - replacing the stand acts as an upgrade, while the remaining components are compatible between these models (except for the condenser)
- if your microscope is damaged or in poor condition - in this case the stand simply replaces the damaged microscope component
- if you need to replace only a single component in your damaged microscope (for example the fine focus block or the iris diaphragm), but decide to replace the entire stand instead
▼ More about this microscope part
Contact us if you are looking for any part to repair a Carl Zeiss Jena Lumipan microscope. Even if the required part is not currently visible in the photographs or has not yet been added to this database as a separate product, it is located inside this complete microscope and is available. Examples include:
- knobs and control knobs
- racks and gears
- guides and shafts
- housing parts
- the iris diaphragm or its individual components
- illumination system components, deflecting mirror
- many other parts, from the complete upper tube down to the smallest screw or spring
The parts listed above are only examples - other components from this microscope stand may also be available.
Manufacturer
Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts
It comes from
Why do you need this?
- for people assembling their own microscope from individually purchased components
- for people who need to replace a poor quality stand with a properly functioning one
- other situations in which such a microscope stand may be required are listed in the description
Compatibility
This microscope part is compatible with the following microscope models:
