More about part: Leica DM-serie microscope binocular PN 11505193 prism and tube lens (ID: 00786)


Leica DM-serie microscope binocular PN 11505193 prism and tube lens
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

Leica DM-serie microscope binocular PN 11505193 prism and tube lens
Leica DM-serie microscope binocular PN 11505193 prism and tube lens
Photo gallery Video

Description

Leica DM-serie microscope binocular PN 11505193 prism and tube lens

This is the internal component of the angled tube for the microscope head of Leica DM series microscopes (e.g., DMLB, DMLS, or DM-1000).

Manufacturer: Leica
Head model: 11505193

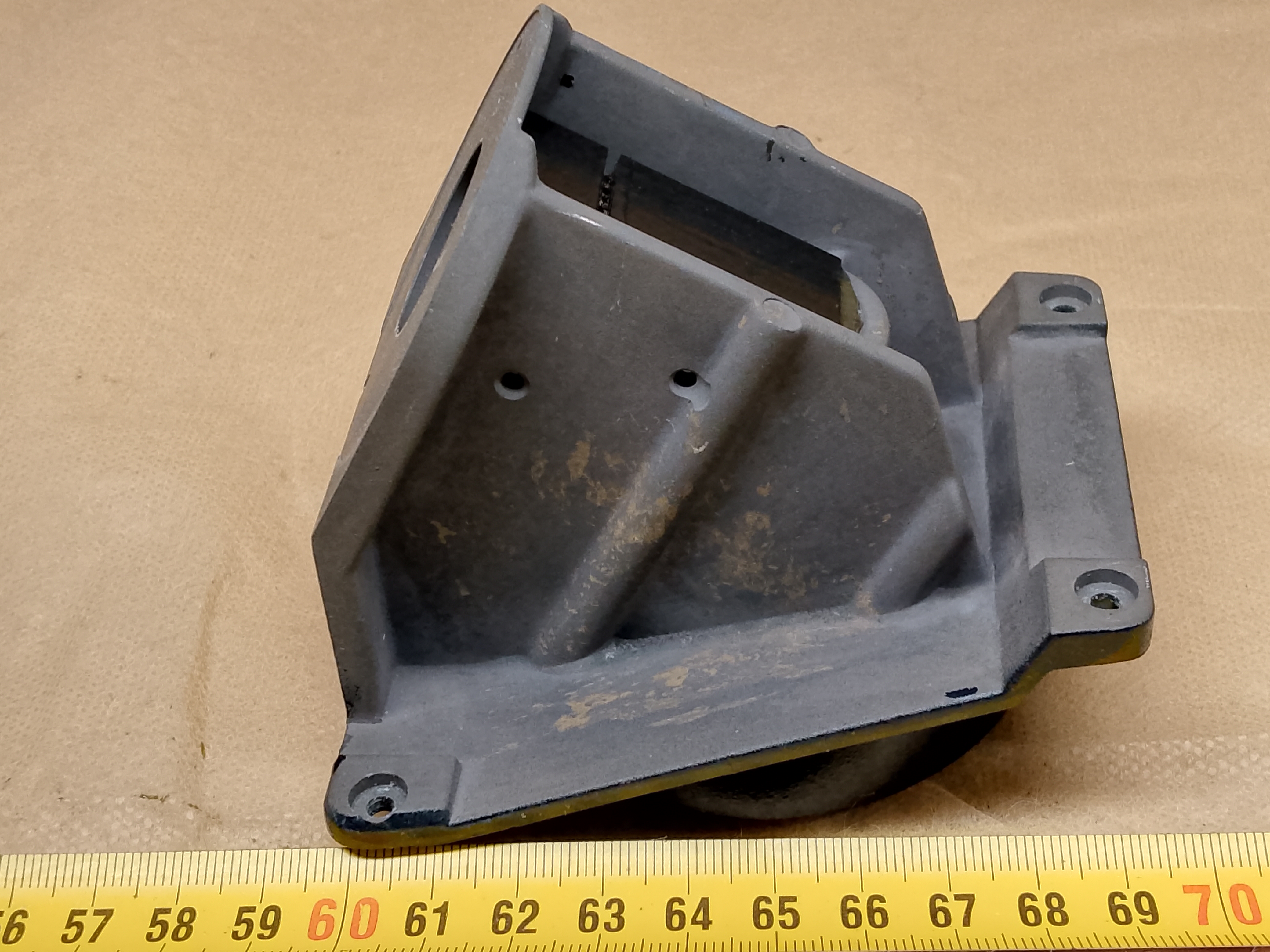

The angled tube (German: Winkeltubus) is the component visible in the last photos in the gallery. This component is mounted to the microscope stand, and the binocular head is screwed onto it at an ergonomic angle.

On this page, I offer the interior of this angled tube.
- metal internal structure
- mirror angled prism
- lower lens (as far as I know, this is a focal lens, also known as a "tube lens" for infinity correction).

If I'm correct that this lower element is a "tube lens," then it's a sought-after component:
- by macro photographers to use infinity lenses
- by people wanting to convert their 160mm/170mm microscope to be compatible with infinity-corrected lenses.

Manufacturer

Leica - (Leica Microsystems GmbH) ➔ All parts

It comes from

Leica DMLS ➔ All parts

Why do you need this?

  • if the internal metal structure has been damaged, for example, as a result of an impact
  • if the angular mirror prism has been damaged
  • if the lower lens has been damaged

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Leica - DM-serie microscope binocular PN 11505193 prism and tube lens

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Leica (Leica Microsystems GmbH)

Is this microscope component new?

NO - this item was removed from Leica DMLS microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Leica DMLS
  • Leica DMLB
  • Leica DMLM

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if the internal metal structure has been damaged, for example, as a result of an impact
  • if the angular mirror prism has been damaged
  • if the lower lens has been damaged

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Leica DM-serie microscope binocular PN 11505193 prism and tube lens (ID 00786) , just write at info@microscopeparts.eu
