More about part: Lomo Biolam P1 (R1 1973) microscope vertical focus spring cover with logo (ID: 00055)
Lomo Biolam P1 (R1 1973) microscope vertical focus spring cover with logo
Main Photo
Description

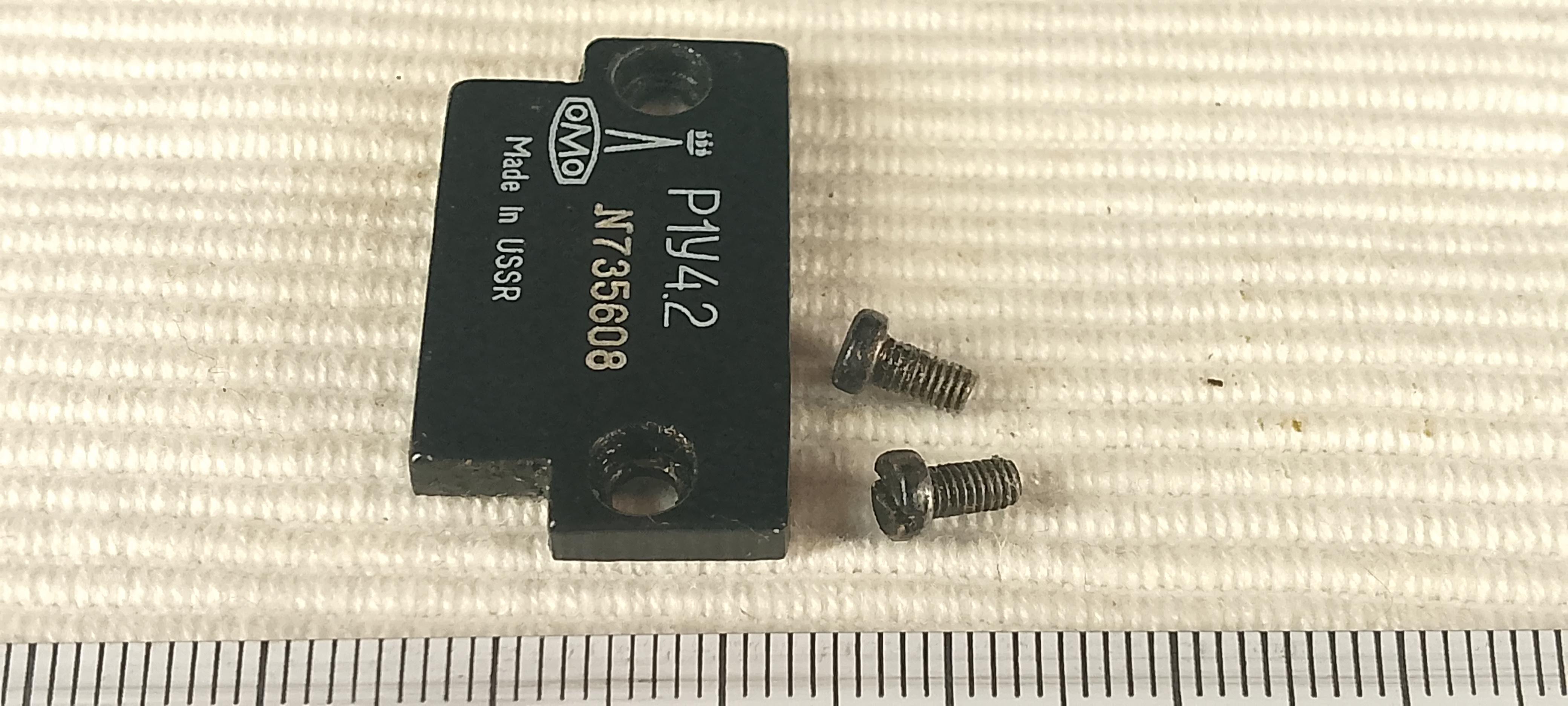

Lomo Biolam P1 (R1 1973) microscope vertical focus spring cover with logoA metal cap engraved with the manufacturer's logo and the model name "R1U4.2." Both mounting screws are included.
For model: P1 Y 4.2(Cyrillic)
In Latin: R1 U 4.2
This cap covers and holds the spring, which is part of the fine (micro) advance mechanism.
The plate also contains the serial number, which begins with the year of manufacture (here, 73).
The markings placed immediately after the model name (here Y 4.2) mean:
Y 4.2: means a microscope or a microscope part adapted for operation in rooms with moderate humidity and within a temperature range of 10°C - 35°C.
T 4.2: means a microscope or a microscope part adapted for operation in rooms with extremely dry air or with high humidity in a tropical climate and within a temperature range of 10°C - 45°C.
Y 1.1: means a microscope or a microscope part adapted for operation in rooms with moderate humidity, but with the possibility of outdoor operation within a temperature range of -10°C - 40°C.
(Source: mikroskopfreunde-nordhessen.de)
Manufacturer
Lomo - (Leningrad Optical Mechanical Association) ➔ All parts
It comes from
Why do you need this?
- On the secondary market, you can find Biolam microscopes that have been repaired in the past and are missing this part.
- Also for those who simply lost this part during microscope service.
- For those who have this plate, but it's damaged.
Compatibility
This microscope part is compatible with the following microscope models:
