More about part: Lomo Polam L-213 polarizing microscope КВ.КР.1 compensating slider | KV.KR.1 gypsum full wave quartz plate first-order red (ID: 99533)
Lomo Polam L-213 polarizing microscope КВ.КР.1 compensating slider | KV.KR.1 gypsum full wave quartz plate first-order red
Main Photo
Description
Lomo Polam L-213 polarizing microscope КВ.КР.1 compensating slider | KV.KR.1 gypsum full wave quartz plate first-order redLomo КВ.КР.1 Gypsum plate - Full-wave plate / First-order red plate for Lomo Polam polarizing microscopes

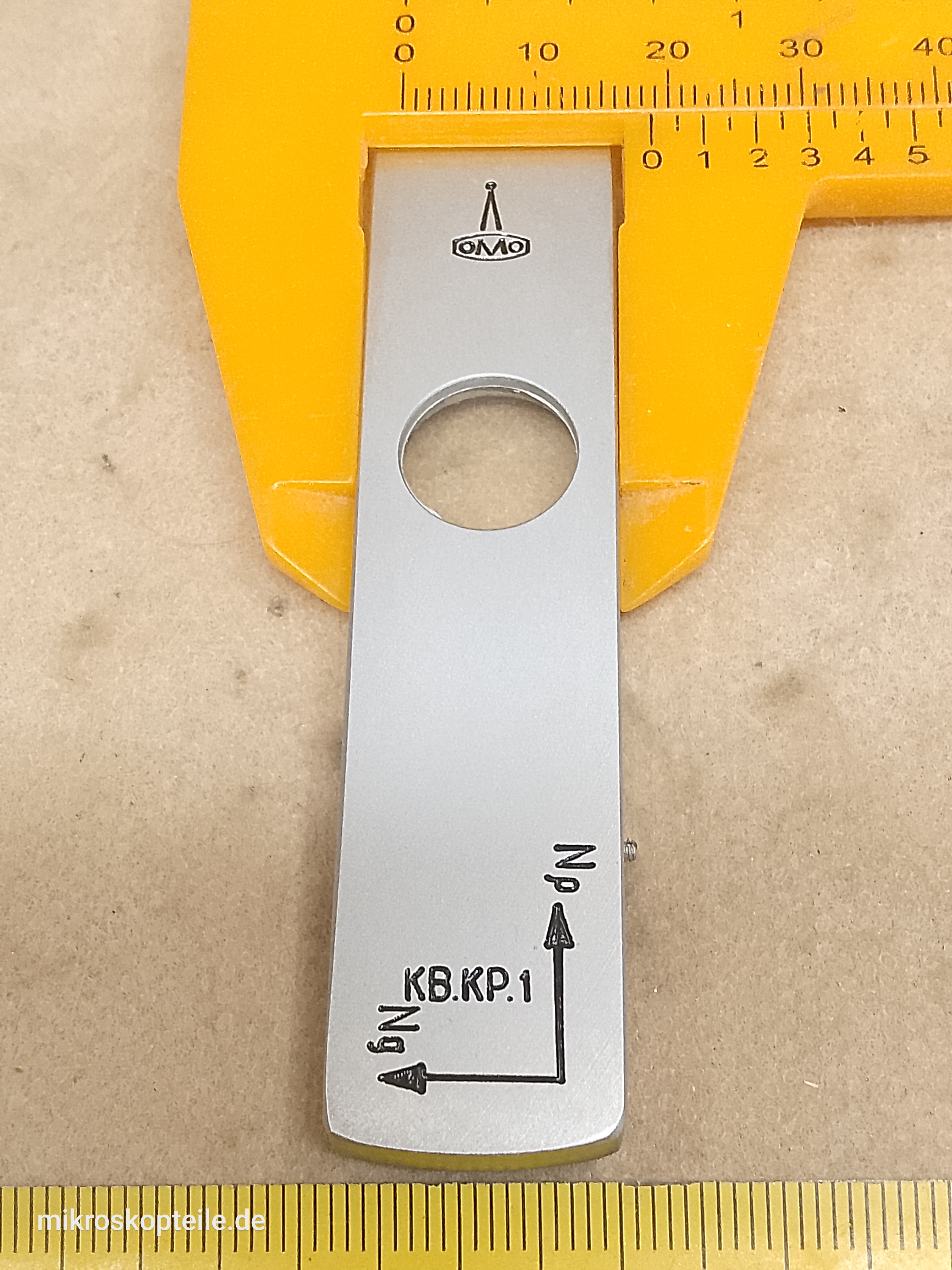

Lomo microscope compensating slider:
- Factory marking
- КВ.КР.1 (Latin alphabet transcription: KV.KR.1)
- Crystal material
- Quartz
- Optical retardation
- 1 lambda (approx. 550 nm)
- Orientation of optical axes
- perpendicular and parallel to the slider body edge
Dimensions:
- Total length
- 80 mm
- Insertion length
- 60 mm
- Width
- 19 mm
- Height
- 7,5 mm
Full-wave compensating slider (gypsum plate / first-order red plate) introducing a phase shift of one full wavelength. It produces the sensitive interference tint - the purplish-red of the first order - against which even minimal changes in the birefringence of the observed specimen become clearly visible as a shift toward blue or yellow tones. Used for identification of low-birefringence minerals and for determining the sign of elongation of crystals.
Manufacturer
Lomo - (Leningrad Optical Mechanical Association) ➔ All parts
It comes from
Why do you need this?
- If you have a polarizing microscope and you are missing this compensator on the slider
- If you have this slide, but it's damaged (e.g., delamination)
Compatibility
This microscope part is compatible with the following microscope models:
- Lomo Polam
- Lomo Polam R-113
- Lomo Polam L-211
- Lomo Polam LMPR
- Lomo Polam R-311
- Lomo Polam L-213
- Lomo Polam S-111
- Lomo Polam S-112
- Lomo Polam R-111
- Lomo Polam R-112
