More about part: Lomo Polam L-213 polarizing microscope Quartz wedge compensator slider 1st to 4th order (ID: 99535)
Lomo Polam L-213 polarizing microscope Quartz wedge compensator slider 1st to 4th order
Main Photo
Description
Lomo Polam L-213 polarizing microscope Quartz wedge compensator slider 1st to 4th orderLOMO Quartz wedge - wedge compensator with variable optical retardation for Lomo Polam polarizing microscopes
Lomo microscope compensating slider:
- Factory marking
- none (variable retardation)
- Crystal material
- Quartz
- Optical retardation
- continuously variable, from 1st to 4th order of the interference spectrum
- Orientation of optical axes
- aligned with the insertion direction (retardation increases with insertion depth)

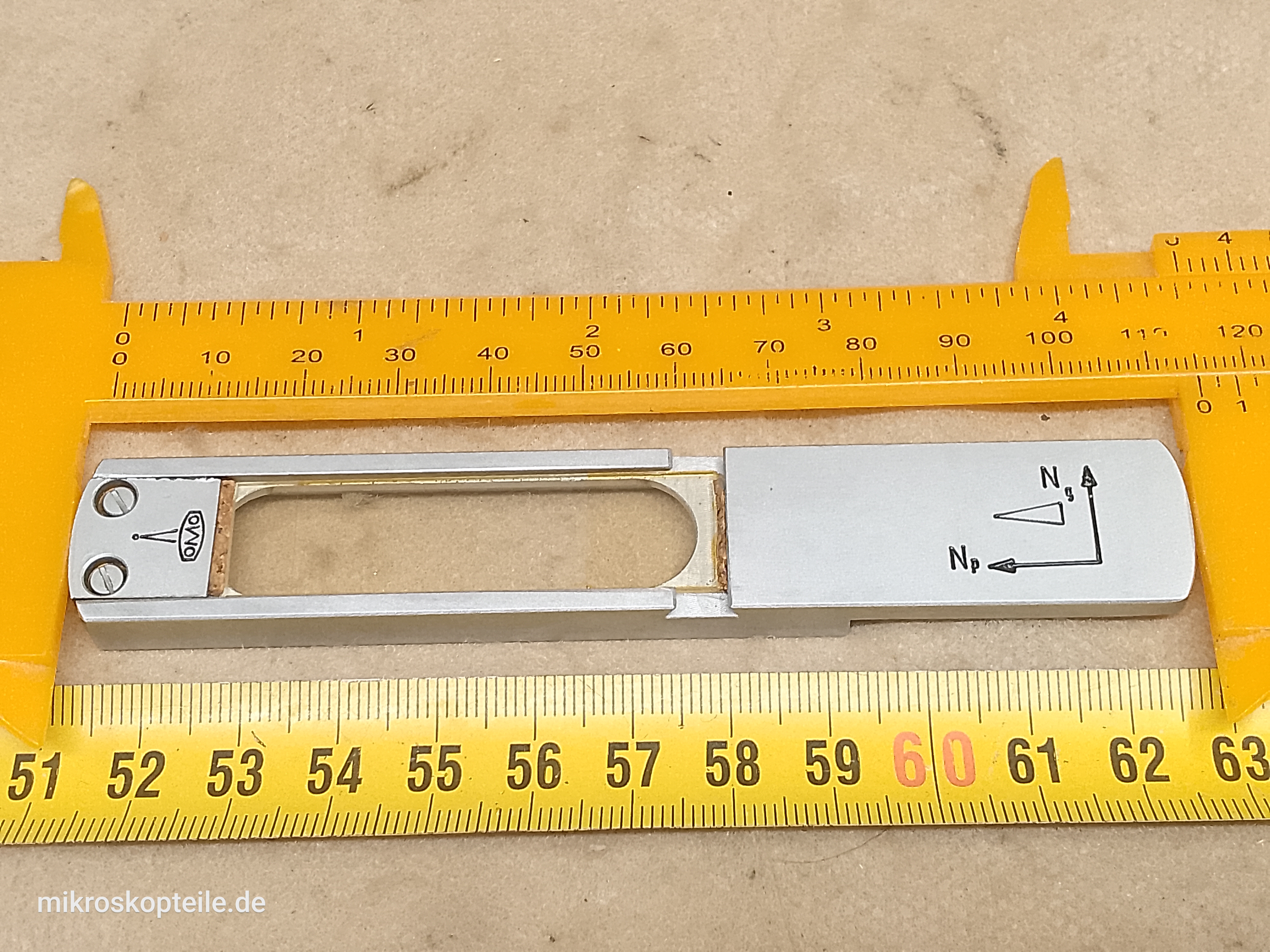

Dimensions:
- Total length
- 115 mm
- Insertion length
- 78 mm
- Width
- 19 mm
Compensating slider in the form of a quartz wedge with variable, increasing optical retardation. Allows precise, continuous adjustment of the compensation value by sliding the wedge within the microscope accessory slot. Used for accurate determination of the interference color order of observed specimens and for precise measurement of crystal birefringence.
Manufacturer
Lomo - (Leningrad Optical Mechanical Association) ➔ All parts
It comes from
Why do you need this?
- If you have a polarizing microscope and you are missing this compensator on the slider
- If you have this slide, but it's damaged (e.g., delamination)
Compatibility
This microscope part is compatible with the following microscope models:
- Lomo Polam
- Lomo Polam R-113
- Lomo Polam L-211
- Lomo Polam LMPR
- Lomo Polam R-311
- Lomo Polam L-213
- Lomo Polam S-111
- Lomo Polam S-112
- Lomo Polam R-111
- Lomo Polam R-112
