More about part: PZO K15x microscope measuring eyepiece (ID: 00757)
PZO K15x microscope measuring eyepiece
Main Photo
Description
PZO K15x microscope measuring eyepiecePrecision measuring eyepiece for biological and measurement microscopes.
The eyepiece fits any microscope from any manufacturer. It can be used with either transmitted or reflected light microscopes, as long as the eyepiece mounting diameter on the microscope head is 23.2 mm.
Manufacturer: PZO
Model: K15x
Magnification: 15x
Image: micrometer and X-crosshair
Mounting diameter: 23.2 mm

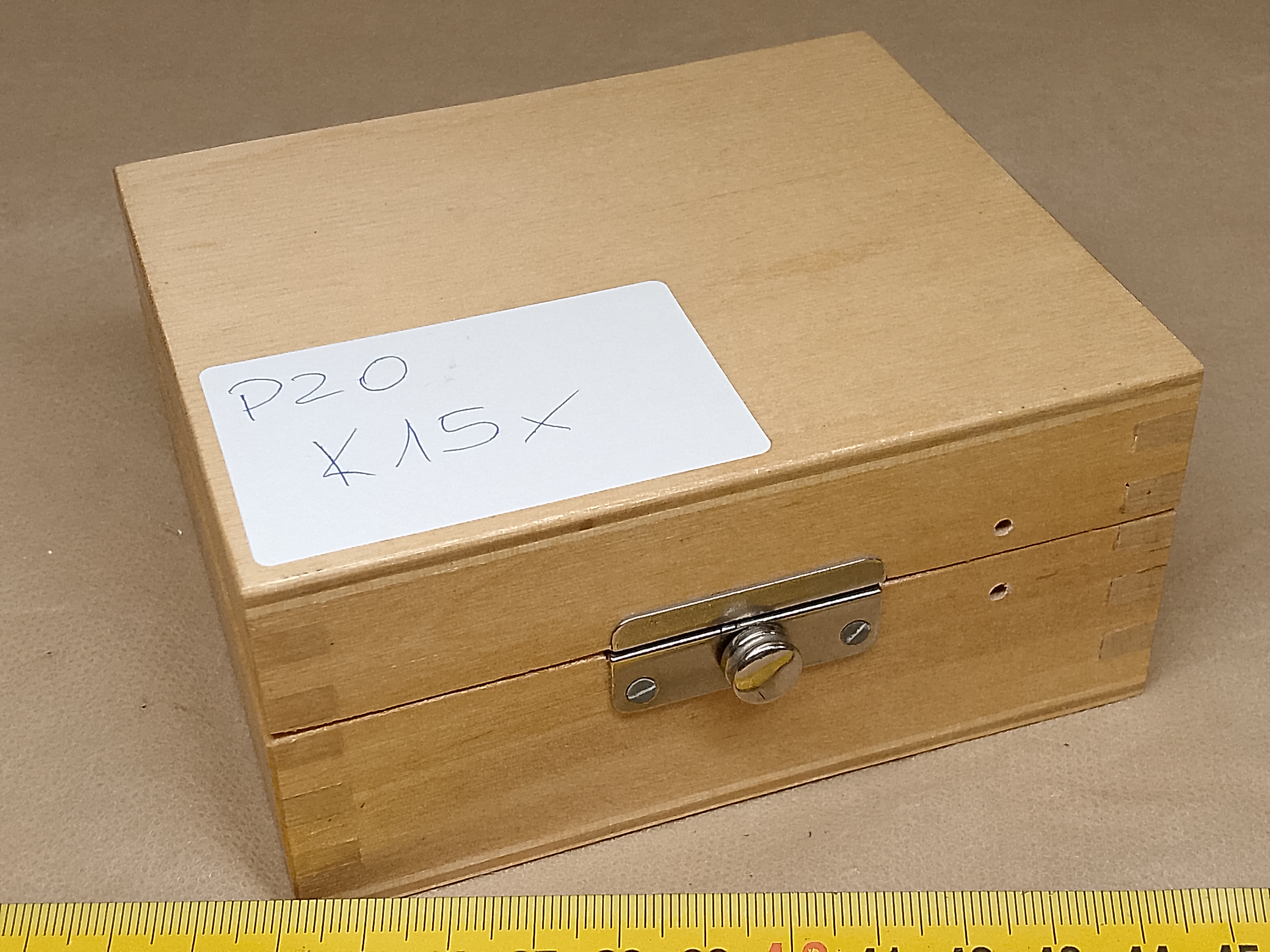

The eyepiece features diopter adjustment and image sharpness adjustment on a micrometer slide. The entire unit is housed in an original wooden box.
The kit includes a slide with a standard micrometer scale to calibrate this eyepiece at any magnification.
Identical K15x eyepieces were also made by other manufacturers, such as Lomo and Carl Zeiss Jena.
Manufacturer
PZO - (Polskie Zaklady Optyczne) ➔ All parts
It comes from
Why do you need this?
- if you need to make precise measurements on your microscope, surface defects, spores, crystals and everything else
Compatibility
This microscope part is compatible with the following microscope models:
- Carl Zeiss Jena Amplival
- Carl Zeiss Jena Vertival
- Carl Zeiss Jena Metaval
- Carl Zeiss Jena Epityp-2
- Carl Zeiss Jena Epignost
- Carl Zeiss Jena Telaval
- Carl Zeiss Jena Technival-2
- Lomo ML-2
- Carl Zeiss Jena Citoval-2
- PZO Biolar
- PZO Studar
- PZO MB-30
- PZO MET-3
- Lomo Biolam
- Zeiss Standard 14
- Zeiss Standard WL
- Zeiss Universal
- Hertel & Reuss Metall
- Will Wetzlar V300
- Leitz Laborlux S
- Leitz Laborlux 11 Pol S
- Vickers M72
