More about part: PZO MST-130 / 131 stereo microscope eyepiece tubes end cups / Carl Zeiss Jena SM-xx compatible dust protection (ID: 99553)
PZO MST-130 / 131 stereo microscope eyepiece tubes end cups / Carl Zeiss Jena SM-xx compatible dust protection
Main Photo
Description

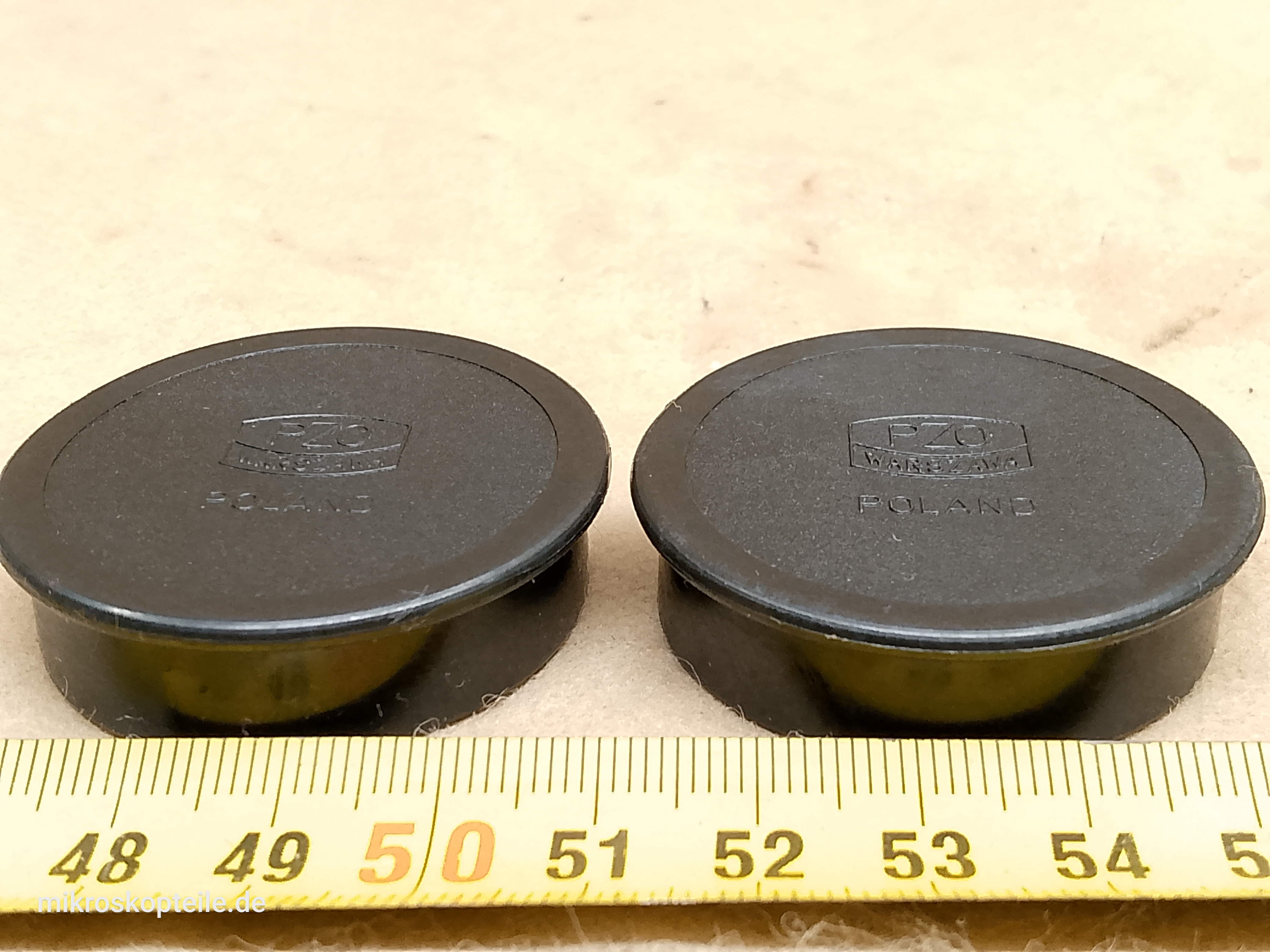

PZO MST-130 / 131 stereo microscope eyepiece tubes end cups / Carl Zeiss Jena SM-xx compatible dust protectionDust protection end caps for the eyepiece tubes of PZO stereo microscopes and colposcopes.
These end caps are designed to protect empty eyepiece tubes whenever the eyepieces are removed for transport or storage inside the wooden carrying case. Installing the caps prevents dust from entering the microscope head and reaching the internal prisms.
The offer applies to 2 (two) pieces, i.e. one pair. Each individual end cap features the original PZO logo.
These end caps fit stereo microscopes from any manufacturer, provided they use eyepieces with a mounting diameter of 34 mm:
- PZO MST-1 / MST-2
- PZO MST-130 / MST-131 / MST-132
- PZO MST ZOOM
- PZO KLP-21 / KLP-22 colposcopes
- DIY devices (e.g. queen bee insemination equipment) built using PZO MST stereo microscopes
- Meopta DM23
- Carl Zeiss Jena Stemi SM-16 / SM-20 (the so-called SM-xx series)
- medical optical instruments (e.g. ophthalmic slit lamps) manufactured by Carl Zeiss Jena and based on the SM-xx stereo microscope platform
▼ More about this microscope part
These end caps do not fit microscopes using eyepieces with diameters other than 34 mm:
- they do not fit PZO MST-110 / MST-127 stereo microscopes because these use 23.2 mm eyepieces
- they do not fit Lomo MBC-1 / MBC-2 stereo microscopes because these use 30 mm eyepieces
- they do not fit Lomo MBC-9 / MBC-10 stereo microscopes because these use 32 mm eyepieces
- they do not fit Carl Zeiss Jena Technival / Citoval stereo microscopes because these use 23.2 mm eyepieces
- they do not fit Carl Zeiss West Germany stereo microscopes because these use 30 mm eyepieces
- they do not fit Euromex E-series and Z-series stereo microscopes because these use 30.5 mm eyepieces
- they do not fit Hertel & REUSS STE-series stereo microscopes because these use 31 mm eyepieces
The FAQ section of this database explains that these are genuine original parts rather than 3D-printed reproductions. It is worth repeating here: these are original vintage PZO plastic end caps. They are not generic "no-name" caps and they are not DIY parts made on a 3D printer.
The last photographs in the gallery show an example of these end caps installed on the head of a PZO MST-130 stereo microscope.
Manufacturer
PZO - (Polskie Zaklady Optyczne) ➔ All parts
It comes from
Why do you need this?
- if you need eyepiece tube dust protection caps to prevent dust from entering the head of your stereo microscope
Compatibility
This microscope part is compatible with the following microscope models:
- PZO MST-130
- PZO MST-132
- PZO MST 2
- PZO MST 1
- PZO MST ZOOM
- PZO MST-131
- PZO KLP 21
- PZO KLP 22
- Meopta DM23
- Carl Zeiss Jena SMxx
- Carl Zeiss Jena SM-16
- Carl Zeiss Jena SM-20
