More about part: Reichert Zetopan microscope EPI reflected light angle mirror switch (ID: 99608)


Reichert Zetopan microscope EPI reflected light angle mirror switch
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

Reichert Zetopan microscope EPI reflected light angle mirror switch
Reichert Zetopan microscope EPI reflected light angle mirror switch
Photo gallery Video

Description

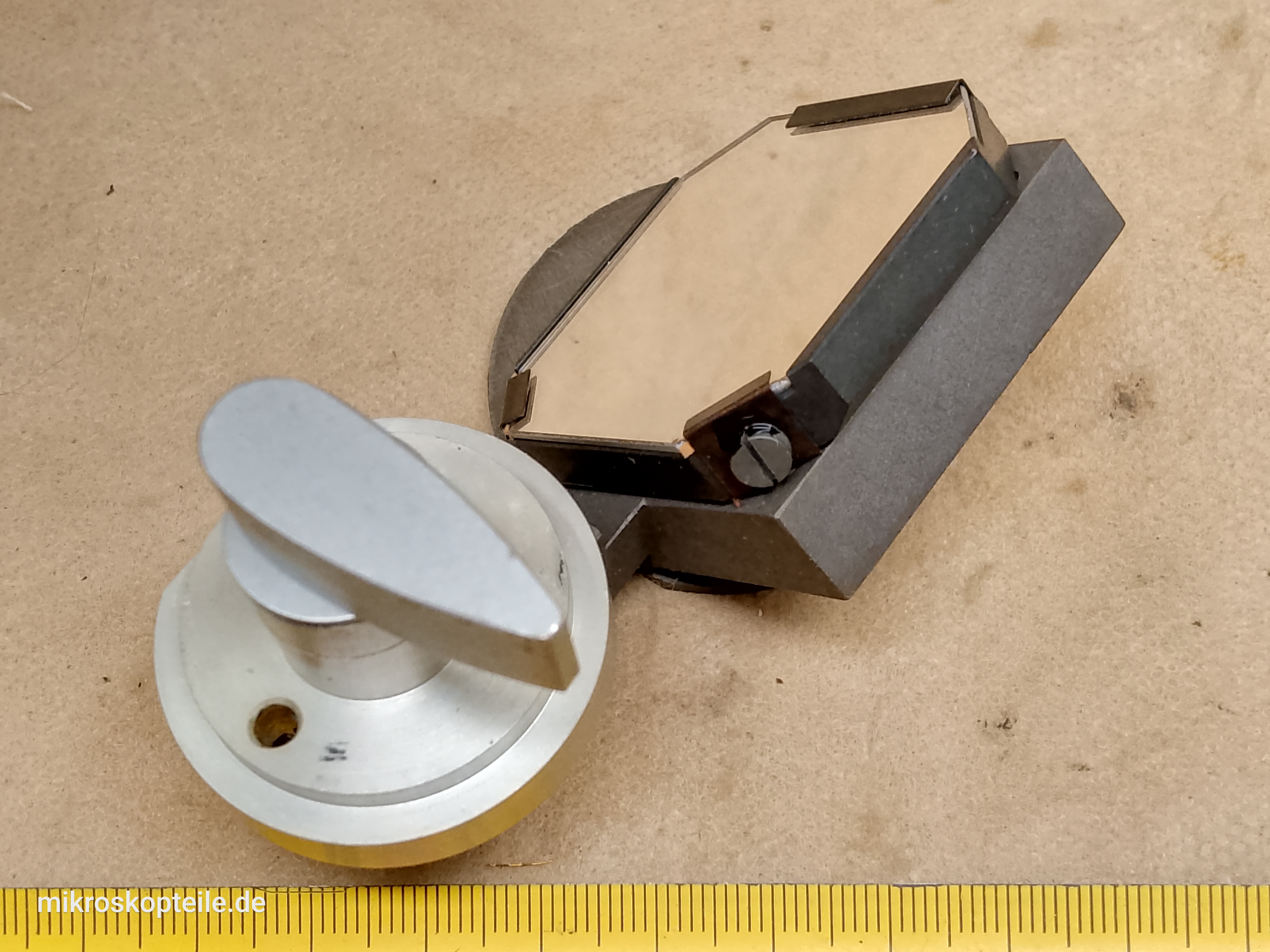

Reichert Zetopan microscope EPI reflected light angle mirror switch

EPI reflected-light angle mirror assembly for the base of the Reichert Austria Zetopan microscope.

The Reichert Zetopan microscope uses a single light source (the illuminator attached to the rear of the microscope base). This light source is shared by both transmitted light (DIA) and reflected light (EPI). Inside the microscope base there are two light-directing mirrors operated by control knobs located on the top of the base housing. These controls are marked "EPI" and "MIX". The "EPI" switch moves a mirror into the light path, directing 100% of the light into the reflected-light illumination path (vertically upward through a dedicated lens located inside the microscope base). This is exactly the assembly offered here — the EPI reflected-light angle mirror switch complete with its mirror and movement mechanism.

Information taken from the manufacturer's English-language catalogue "Zetopan Research Microscope. Price List, Effective December 1, 1976":

  • This component belongs to the microscope stand. The stand has catalogue number: 9 90 00 01


This component — or individual parts of it — is frequently damaged. Replacing it with the assembly offered here can solve, among others, the following problems:

  • if the "EPI" control knob operating the mirror has become bent or broken
  • if the light-directing mirror has cracked, chipped, become scratched due to improper cleaning, or its reflective surface has oxidised
  • if the movement mechanism, gear, spring or guide pin has been damaged


▼ More about this microscope part

The last photographs in the gallery clearly indicate, using an arrow, exactly which component is being offered and where it is located inside the microscope. This makes identification straightforward.

The video gallery also contains two videos. One demonstrates how this reflected-light angle mirror operates and moves while installed in the Reichert Zetopan microscope base. The second shows the component after removal, including close-up views from different angles and all of its moving parts.

Manufacturer

Reichert - (Reichert Austria) ➔ All parts

It comes from

Reichert Zetopan ➔ All parts

Why do you need this?

  • service replacement part used to repair the Reichert Austria Zetopan microscope by replacing the complete reflected-light angle mirror assembly if the light-directing mirror has been damaged

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Reichert - Zetopan microscope EPI reflected light angle mirror switch

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Reichert (Reichert Austria)

Is this microscope component new?

NO - this item was removed from Reichert Zetopan microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the Reichert Zetopan microscope

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • service replacement part used to repair the Reichert Austria Zetopan microscope by replacing the complete reflected-light angle mirror assembly if the light-directing mirror has been damaged
