More about part: Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder (ID: 99615)


Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder
Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder
Photo gallery Video

Description

Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder

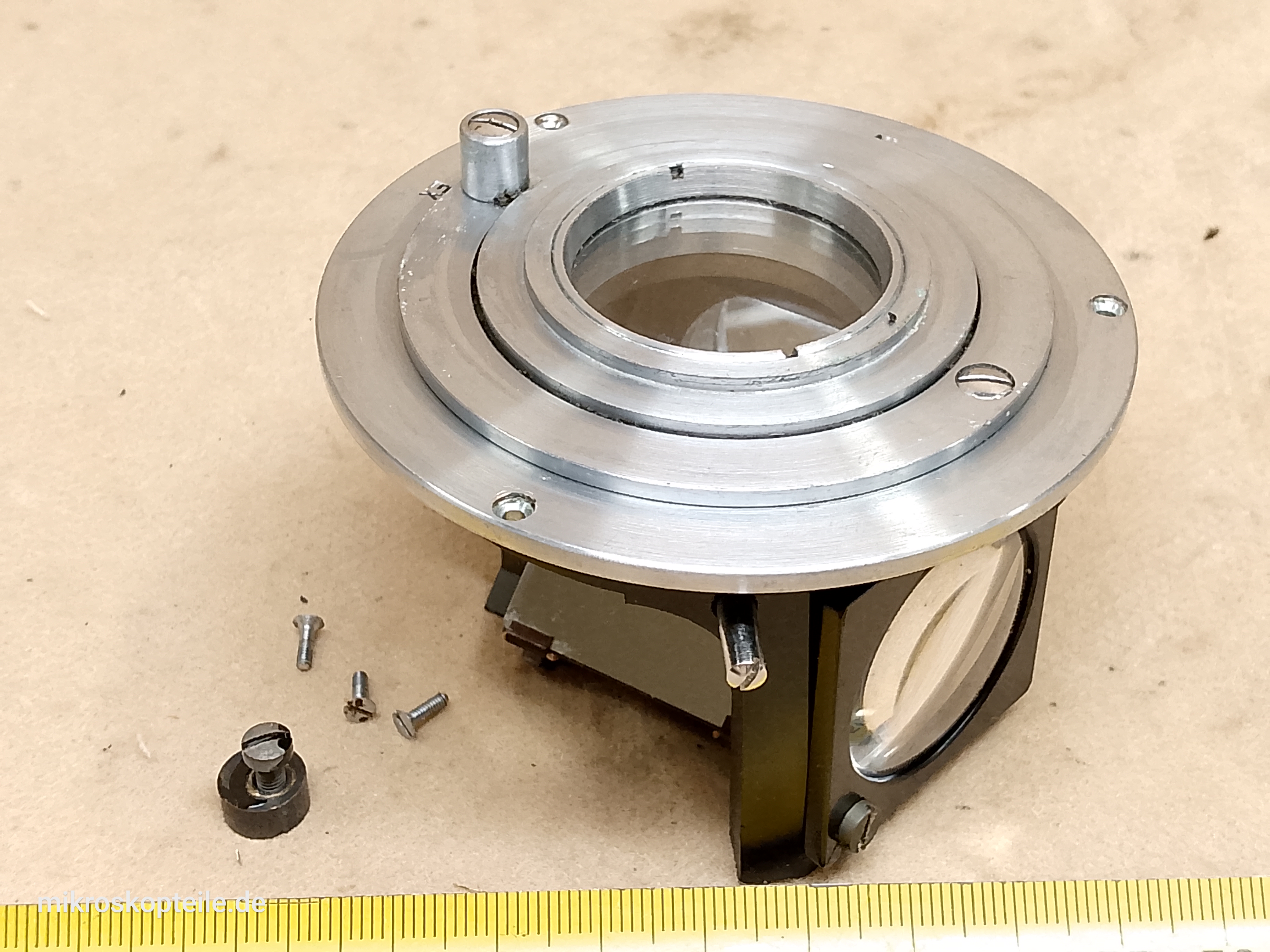

Transmitted light collector with a flip-out wide field lens and mirror prism for the Reichert Austria Zetopan microscope.

Mechanically, this collector is located inside the microscope base beneath the condenser. It is secured from above with three screws. The collector housing also incorporates a holder for 32 mm round filters.

This component performs several functions:
- it collimates the light beam
- it also serves as a holder for round filters
- it redirects the horizontal light beam coming from the lamp house vertically upwards
- the flip-out wide field lens provides even illumination of the entire specimen when using low-magnification objectives

Replacement of this collector in a Reichert Zetopan microscope may be necessary in the following situations, among others:

  • if this component is missing because someone removed it, for example during an unfinished repair
  • if the upper protective glass of the collector has been broken
  • if the mechanism operating the flip-out wide field lens has been damaged
  • if - as often happens - the mirror prism has been damaged, broken, or its reflective surface has deteriorated through oxidation


Information from the manufacturer's English-language catalogue "Zetopan Research Microscope. Price List, Effective December 1, 1976":

  • This component belongs to the microscope stand. The catalogue number of the stand is: 9 90 00 01


The last photographs in the gallery show the base of a Reichert Zetopan microscope (in this case the older black version). An arrow indicates exactly which component it is and where it is located. The collector is shown both from the outside and in its installed position inside the microscope base. This makes it easy to identify the component correctly.

Manufacturer

Reichert - (Reichert Austria) ➔ All parts

It comes from

Reichert Zetopan ➔ All parts

Why do you need this?

  • as a service replacement component when this collector in a Reichert Zetopan microscope has been damaged
  • other possible failures affecting this component are described above

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Reichert - Zetopan microscope light collector with flip-out wide field lens and filter holder

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Reichert (Reichert Austria)

Is this microscope component new?

NO - this item was removed from Reichert Zetopan microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the Reichert Zetopan microscope

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • as a service replacement component when this collector in a Reichert Zetopan microscope has been damaged
  • other possible failures affecting this component are described above

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Reichert Zetopan microscope light collector with flip-out wide field lens and filter holder (ID 99615) , just write at info@microscopeparts.eu
