Will Wetzlar V100 / V200 microscope XY stage attachment left sided / cross specimen holder | Zeiss Jena Laboval and Olympus CH compatible

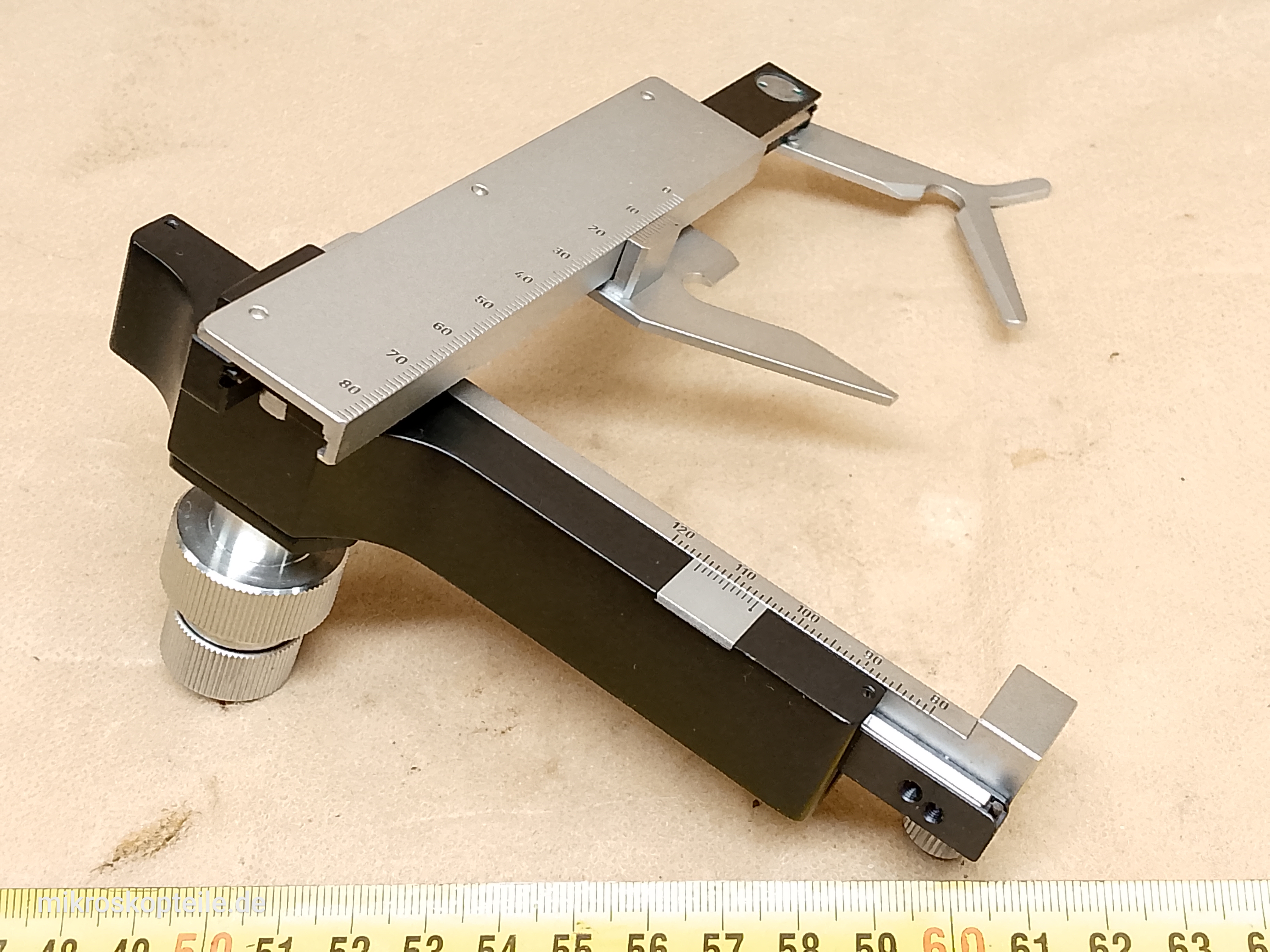

Main Photo
Description
Will Wetzlar V100 / V200 microscope XY stage attachment left sided / cross specimen holder | Zeiss Jena Laboval and Olympus CH compatibleLeft-hand XY mechanical stage attachment for Will Wetzlar microscopes and for microscopes of other makes with stages 10 to 12 mm thick. It is used for precise movement of the slide with the specimen on the microscope stage.
The simpler Will Wetzlar microscopes of the V100 and V200 series were sold with a square stage that had no integrated mechanical stage mechanism for precise movement of the specimen. Such a mechanism is a separate (and optional) part, screwed to the side of the stage - and it is exactly this accessory that is offered here.
Basic information:
- Item
- mechanical stage attachment for a microscope stage
- Manufacturer
- Will Wetzlar
- Fits
- microscopes of any make with a stage from 10 mm to 12 mm thick
- Mounting
- screwed to the side of the stage, on the left, with two screws
Once this mechanism is fitted, the coaxial knobs used to move the specimen are located on the handle on the left side of the stage.
Important note on compatibility:
Originally, attachments of this kind were used in the Will Wetzlar microscopes of the V100 and V200 series (that is, in the VM-V1xx, VB-V1xx, VM-V2xx and VB-V2xx models). I have personally fitted it to the following models as well:
- Will Wetzlar V255, V150
- Carl Zeiss Jena Eduval
- Carl Zeiss Jena Laboval-2
- Motic SFC100
- Olympus CH
- Olympus CH2
This XY mechanism also fits microscopes of other makes, provided the thickness of the stage is between 10 and 12 mm.
It is also worth remembering that microscopes made by Will Wetzlar were sold under the following names as well:
- Hund Wetzlar
- Dr. G. Schuchardt Göttingen
- Opt. Inst. G.K.E. Schröder
Microscopes carrying any of these names should therefore also be taken into account when considering the compatibility of this mechanical stage attachment.
The last photograph in the gallery shows a Will Wetzlar microscope of the V100 series, with an arrow indicating which part is meant and where it sits on the microscope. In addition, the video in the video gallery shows this attachment from various angles, together with the movement of its moving parts.
▼ More about this microscope part
At magnifications above 400x, moving the slide with the specimen by hand becomes very difficult. This is precisely why mechanical stage attachments are used: to move the specimen very precisely at, for example, 600x or at 1000x with oil immersion.
Manufacturer
Will Wetzlar - (Will Wetzlar) ➔ All parts
It comes from
Why do you need this?
- if you have a microscope with a standard stage and you need to precisely manipulate the slide with the preparation and use high magnifications
Compatibility
This microscope part is compatible with the following microscope models:
- Will Wetzlar V100
- Will Wetzlar V200
- Hund Wetzlar
- Dr. G. Schuchardt Göttingen
- Opt. Inst. G.K.E. Schröder
- Olympus CHK
- Olympus CH
- Olympus CH-2 CHT
- Olympus CH-2 CHS
- Olympus CHL
- Carl Zeiss Jena Eduval
- Carl Zeiss Jena Laboval
- Carl Zeiss Jena Laboval-2
- Carl Zeiss Jena Laboval Fluorescence
- Motic SFC 100
