Zeiss microscope 12V 100W P/N 39 25 85 power supply for HAL 100 halogen illuminator (392585 2...12V 165VA)

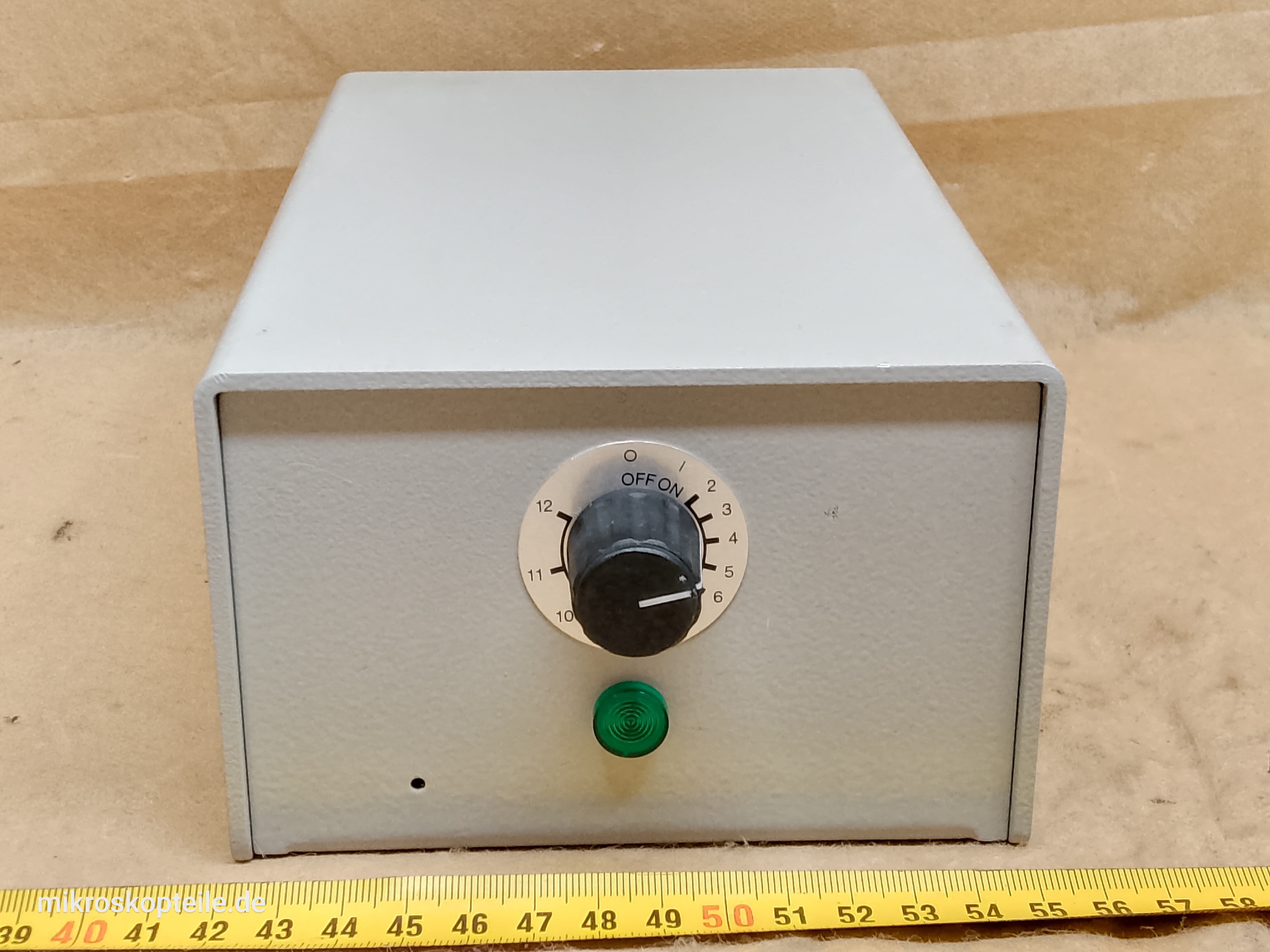

Main Photo
Description
Zeiss microscope 12V 100W P/N 39 25 85 power supply for HAL 100 halogen illuminator (392585 2...12V 165VA)Carl Zeiss power supply for microscopes using illuminators with 12 V 100 W lamps (most commonly halogen lamps).
Basic specifications of the power supply:
- Manufacturer
- Carl Zeiss
- Model
- NAG 2...12V 100W
- Catalogue number
- 39 25 85
- Input
- 100-110-120-127-220-240 V
- Output
- 12 V
- Output power
- 100 W
- Power connector
- separate computer-type power cable
- Potentiometer
- yes, smooth brightness adjustment
Designed for any microscope illuminator using a light source (lamp) rated at up to 100 W and operating at 12 V. It is most commonly used with external HAL 100 halogen illuminators (so-called Lampenhaus units), for example in reflected-light EPI illuminators.
▼ More about this microscope part
This power supply can be used with illuminators and microscopes from any manufacturer. Here are several configurations verified in practice:
- compatible with the PZO Biolar DIC microscope fitted with the PZO OH-1 halogen illuminator, replacing the PZO ZM-100 or PZO ZH-100 power supply
- if the internal power supply in the base of an Olympus BH-2 BHS microscope fails, the original halogen illuminator can be powered using this external Zeiss power supply
- compatible with the large external halogen illuminator used for reflected-light EPI illumination on Carl Zeiss Jena Amplival Pol and Vertival microscopes
- also compatible with the Reichert Zetopan microscope equipped with the LUX-US 12 V 100 W halogen illuminator
Note – different manufacturers and different illuminators may use different pin spacing in their 12 V connectors. It may therefore be necessary to modify the connector in order to connect it to this Zeiss power supply.
Manufacturer
Zeiss - (Carl Zeiss West Germany) ➔ All parts
It comes from
Why do you need this?
- if you're missing a power supply
- if your power supply is damaged
- if you're using two illuminators and need a second power supply
Compatibility
This microscope part is compatible with the following microscope models:
