More about part: Zeiss Photomicroscope / Ultraphot microscope condenser holder with toothed rack, focusing knob, centering screws and wide field lens (ID: 99606)
Zeiss Photomicroscope / Ultraphot microscope condenser holder with toothed rack, focusing knob, centering screws and wide field lens

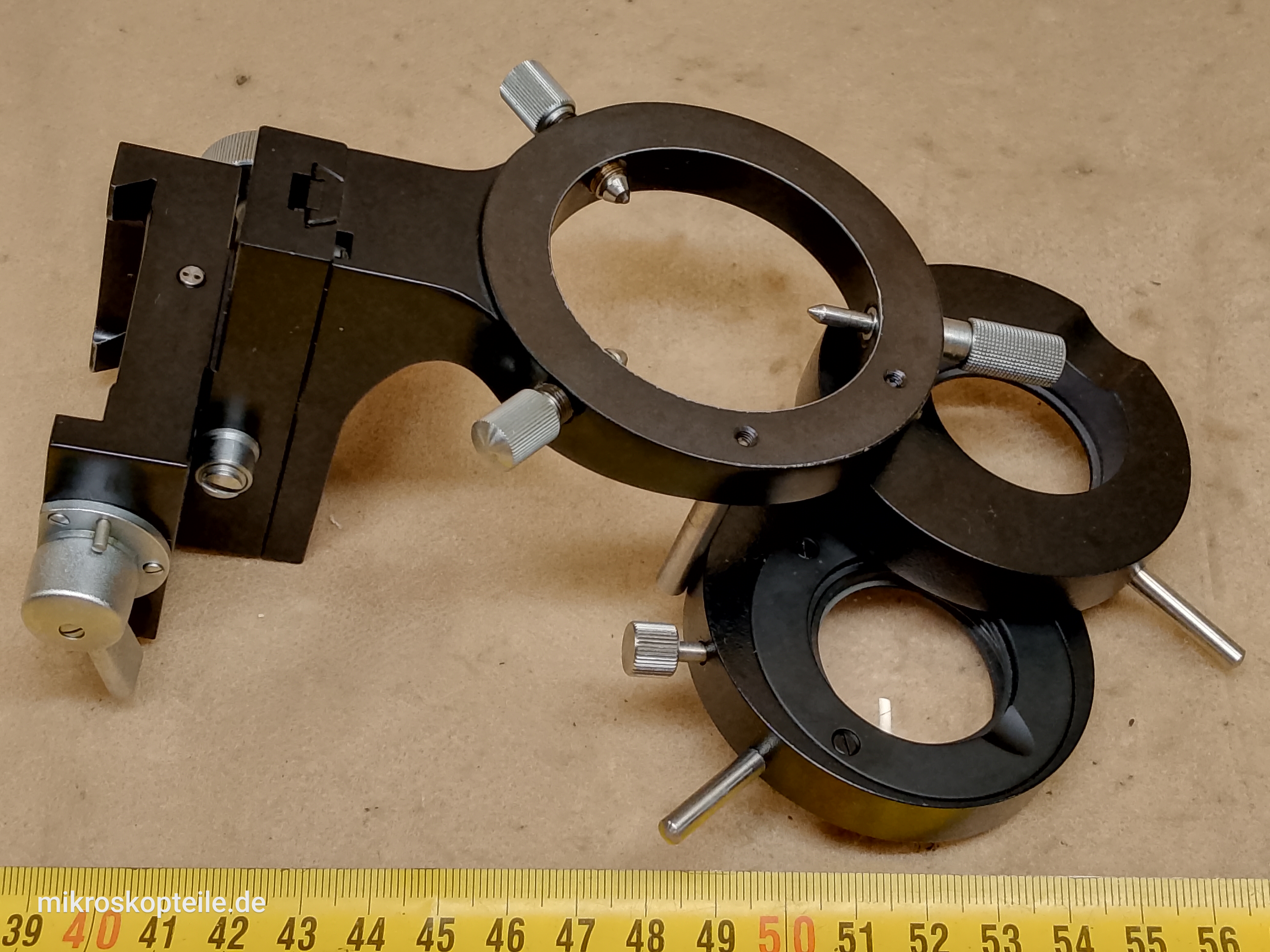

Main Photo
Description
Zeiss Photomicroscope / Ultraphot microscope condenser holder with toothed rack, focusing knob, centering screws and wide field lensComplete condenser holder assembly for Carl Zeiss microscopes.
This condenser holder assembly fits the following microscopes:
- Zeiss Photomicroscope (the so-called Zeiss Phomi)
- Zeiss Standard WL 89
- Zeiss Universal
- Zeiss Ultraphot
This complete module consists of the following parts:
- the section with the condenser focusing knob for height adjustment, mounted onto a dovetail guide using a quick-release clamping mechanism
- the condenser holder with a toothed rack, condenser retaining screw and two centering screws
- a swing-out holder for a 32 mm round filter
- a swing-out wide field lens used to provide even illumination of the specimen when observing with low-magnification objectives
This holder accepts condensers with a dovetail mount – it is not intended for condensers with a diameter of 37 mm or 39.5 mm.
▼ More about this microscope part
The Zeiss Universal, Zeiss Ultraphot, the earliest versions of the Zeiss Standard WL, and the first model of the Zeiss Photomicroscope were originally factory-equipped with this component in black.
The Zeiss Photomicroscope II, Zeiss Photomicroscope III, and the later versions of the Zeiss Standard WL were factory-equipped with this component in grey.
The colour of this component has no effect on compatibility. In other words, a component of either colour fits all of the microscope models listed above.
The component presented here is black.
If you're looking for the gray version, it's listed in this database under number 99578.
There you'll also find a video demonstrating how to disassemble this item, i.e., how to remove it from the microscope stand.
Manufacturer
Zeiss - (Carl Zeiss West Germany) ➔ All parts
It comes from
Why do you need this?
- if you have a microscope in which this holder is missing
- as a replacement part by replacing the entire damaged element
- if you have a microscope in which this element works but is of very poor quality, e.g. has bent or broken centering screws
Compatibility
This microscope part is compatible with the following microscope models:
