Hensoldt Wetzlar 10:1 E microscope objective - photo gallery
The gallery contains photos from various perspectives as well as close-ups of this microscope part. Clicking the "Open photo" button will display additional information.
Switch to video gallery SERMIK_ID: 91037

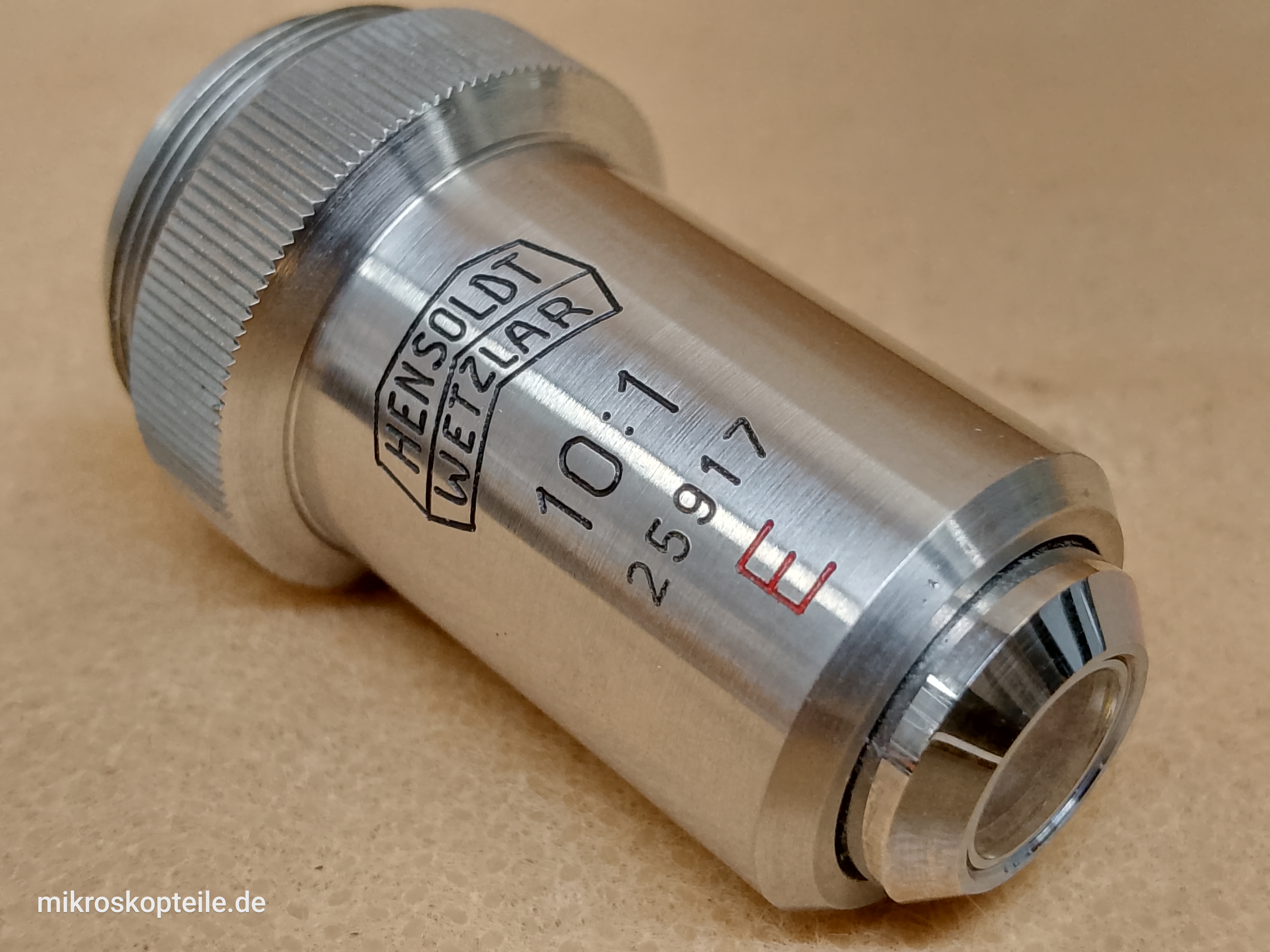

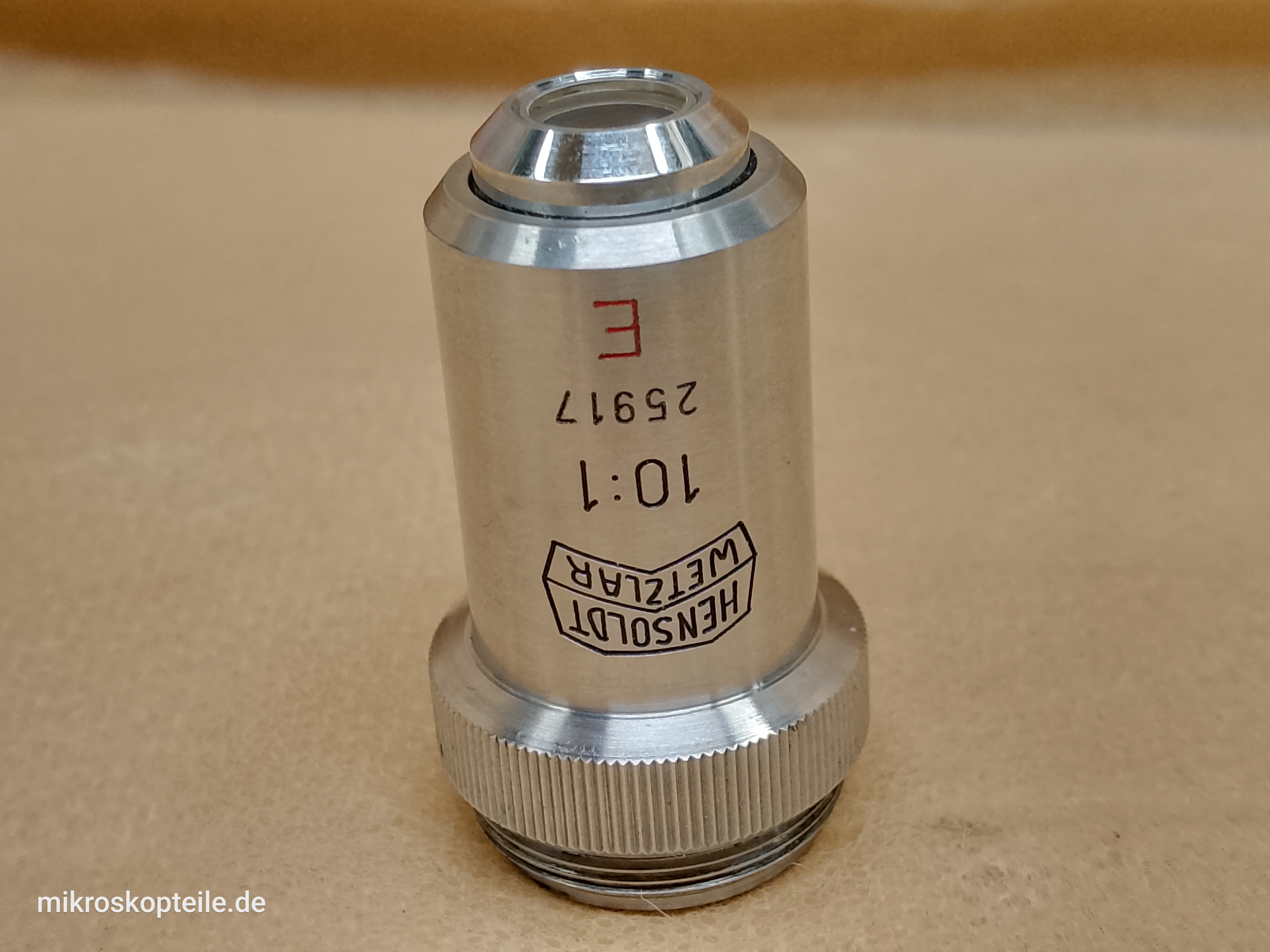

Photo #1 - Hensoldt Wetzlar 10:1 E microscope objective
Photo #2 - Hensoldt Wetzlar 10:1 E microscope objective
Photo #3 - Hensoldt Wetzlar 10:1 E microscope objective

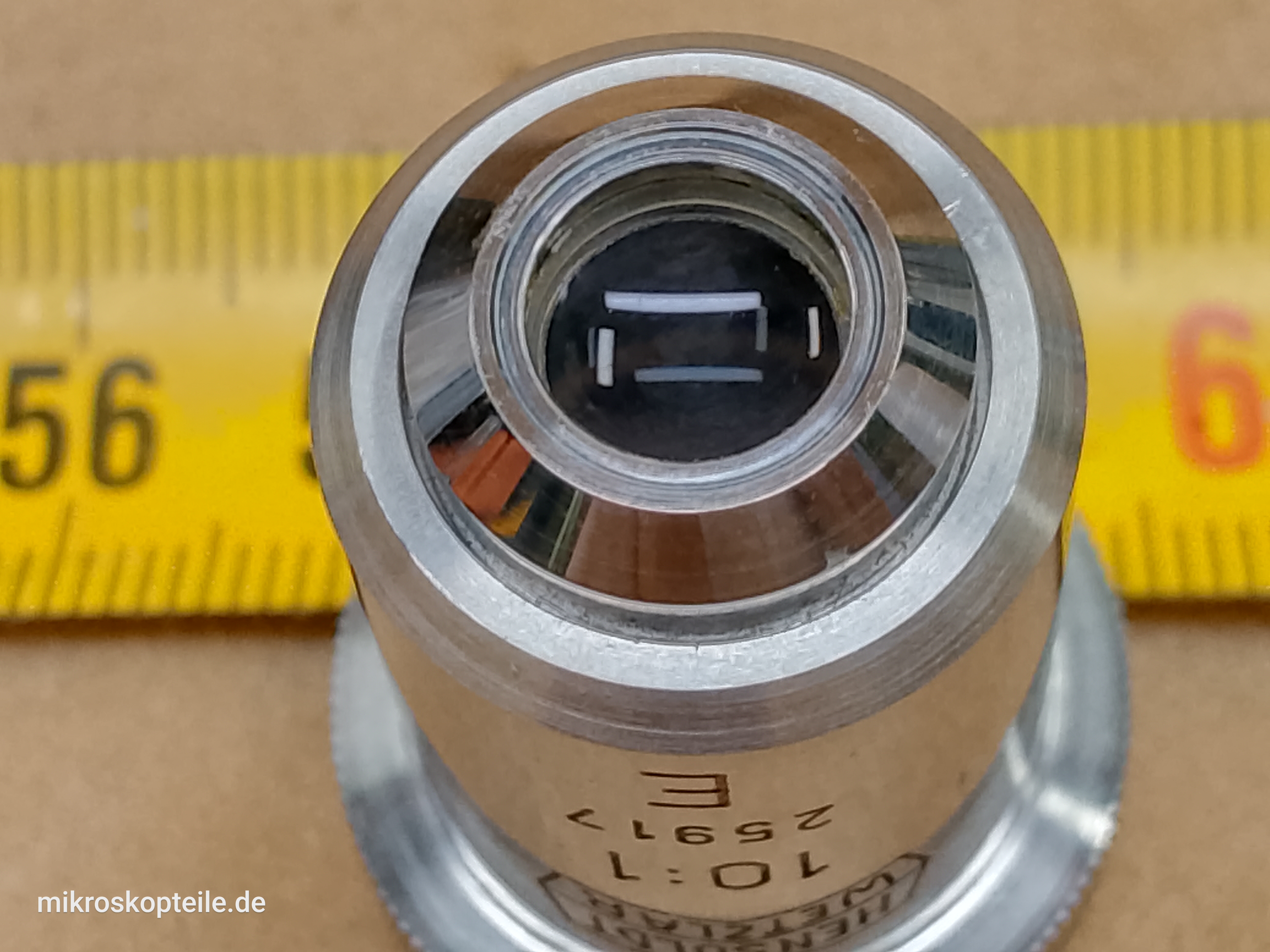

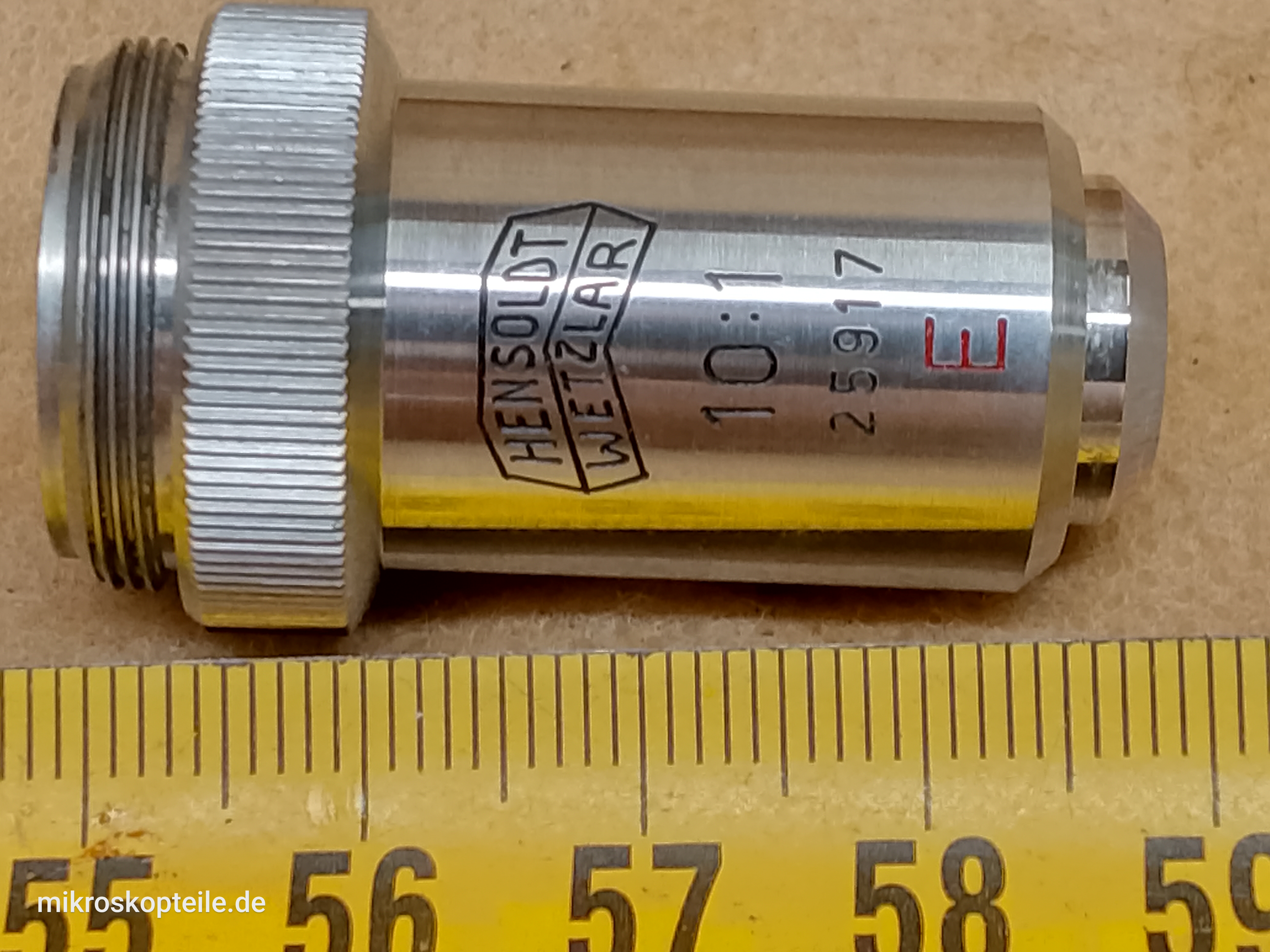

Photo #4 - Hensoldt Wetzlar 10:1 E microscope objective
This is description of this part:
Hensoldt Wetzlar microscope objective lens from the DIAMI microscope (the version with the "classic" revolver).
Manufacturer: Hensoldt Wetzlar
Model: 10:1 E
Magnification: 10x
Numerical Aperture: (?)
Cover Glass: (?)
Thread: RMS
Tube Lens: (?)
Focal Lens: 45 mm
Immersion: (?)
I have very little technical information about this objective; I don't even know what the red letter "E" stands for. If you have any information that would help me add to the description, please E-mail me.
In 1950, Hensoldt DIAMI microscopes with a star-shaped nosepiece were already using objectives with a 45 mm focal length, but they still looked like the shorter, older versions. This is already a newer version of the objective, differing among other things in that it does not have the numerical aperture value engraved on it.
In a 1950 brochure, the manufacturer states that optional equipment for reflected-light EPI work was available for the Hensoldt DIAMI microscope. Therefore, it is possible that the red letter “E” on the objective indicates an EPI objective. However, this possibility is contradicted by the fact that the 1950 model, which was designed only for transmitted-light work, had a 100x objective that also had the letter “E” engraved on it.
What is this part needed for?
- if you have such a Vintage microscope and you want to complete it using original parts
- What category does this part belong to?
- Objective [ link ] [More Objective]
- Who manufactures this part?
-
- Hensoldt Wetzlar - M. Hensoldt & Söhne Optische Werke AG Wetzlar, Germany [ link ] [More Hensoldt Wetzlar]
- What microscope does this part come from?
- Mikroskop Hensoldt Wetzlar DIAMI [ link ] [More from DIAMI]
- What microscopes or components is this part compatible with?
-
- Hensoldt Wetzlar DIAMI
- Hensoldt Wetzlar DIAMI microscope repair parts
- Hensoldt Wetzlar DIAMI
- Hensoldt Wetzlar microscope objective
- Hensoldt Wetzlar Mikroskop Objektiv
- Hensoldt Wetzlar buy spare parts
Names, descriptions, terms, and search contexts under which this part is searched.
Frequently Asked Questions (FAQ)
Below you will find answers to the most frequently asked questions (FAQ).
- What is this page?
- This is a gallery of photos showing a microscope part from various angles.
- What microscope part are these photos of?
- These photos are of the microscope part: Hensoldt Wetzlar 10:1 E microscope objective. This part has an index in the database: 91037
- Do these photos show the exact original product offered, or are they only symbolic?
- YES - these are original photos of the exact item offered for sale. They are not symbolic or sample images.
- What microscope is this part from?
- This part is from the microscope: DIAMI of company Hensoldt Wetzlar
- Where is the detailed description of this part?
- The detailed description of this microscope part is here: https://www.microscopeparts.eu/part/hensoldt-wetzlar-diami-10-1-e-microscope-objective-91037
