PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring - photo gallery
The gallery contains photos from various perspectives as well as close-ups of this microscope part. Clicking the "Open photo" button will display additional information.
SERMIK_ID: 99107

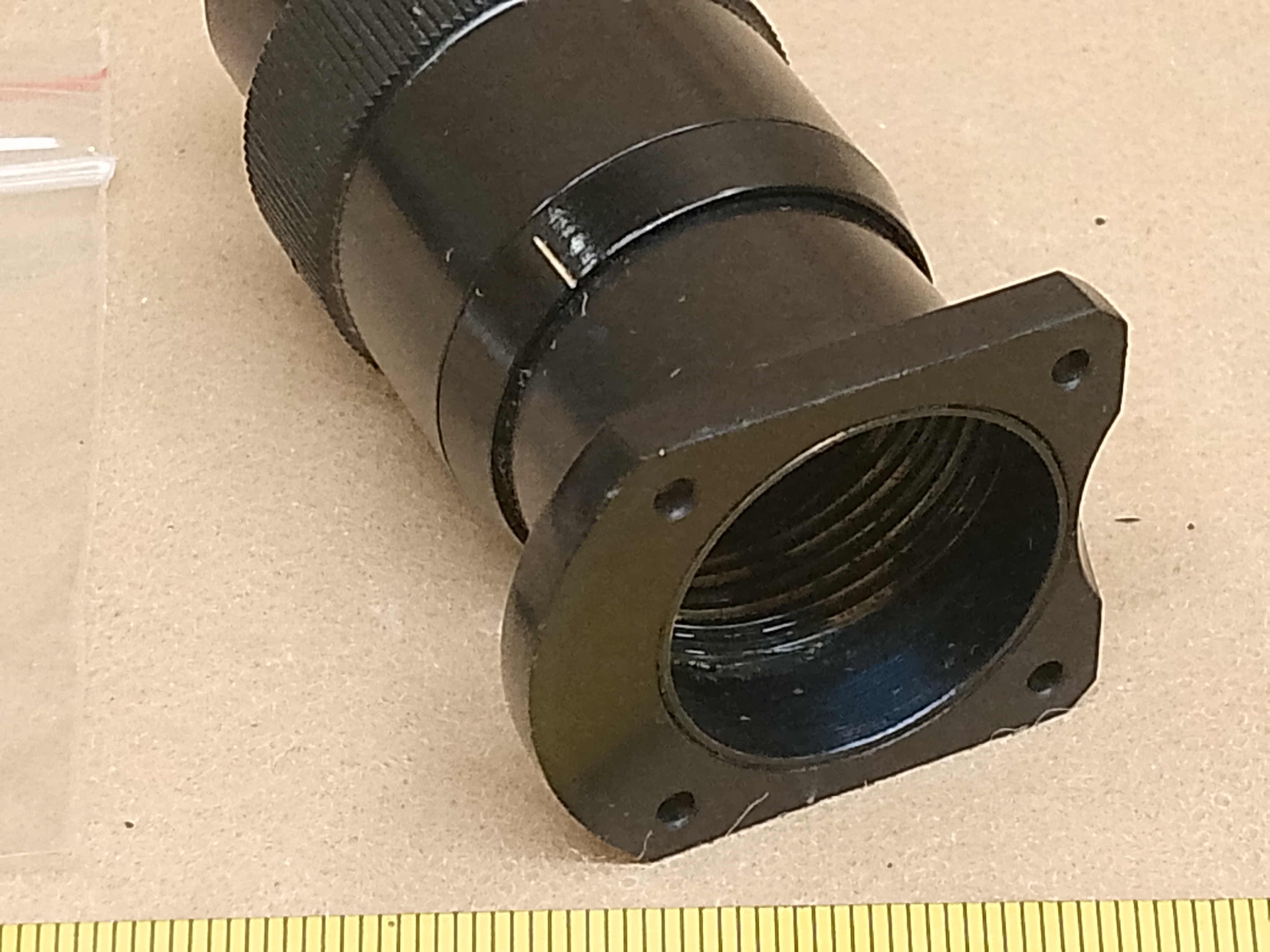

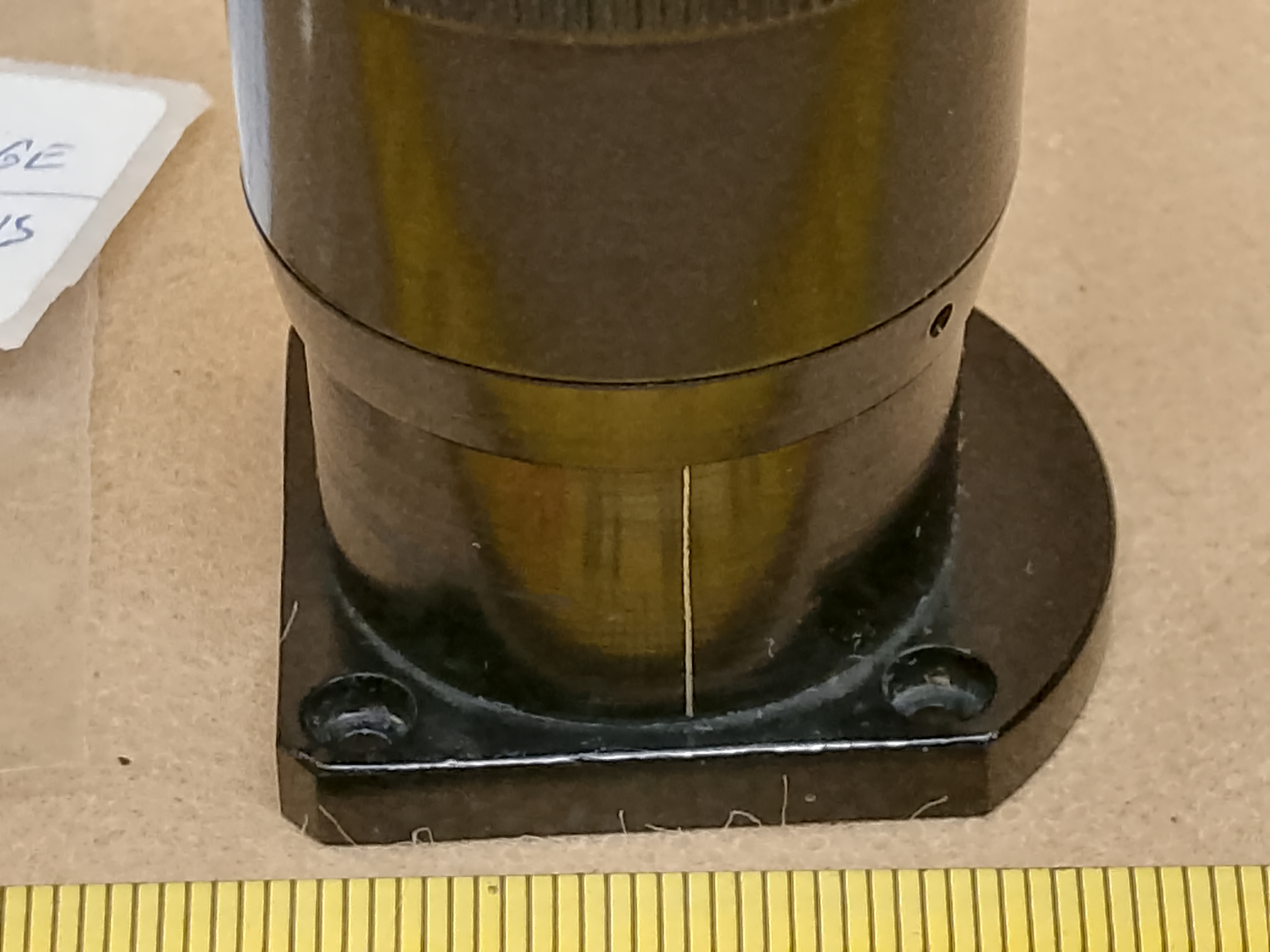

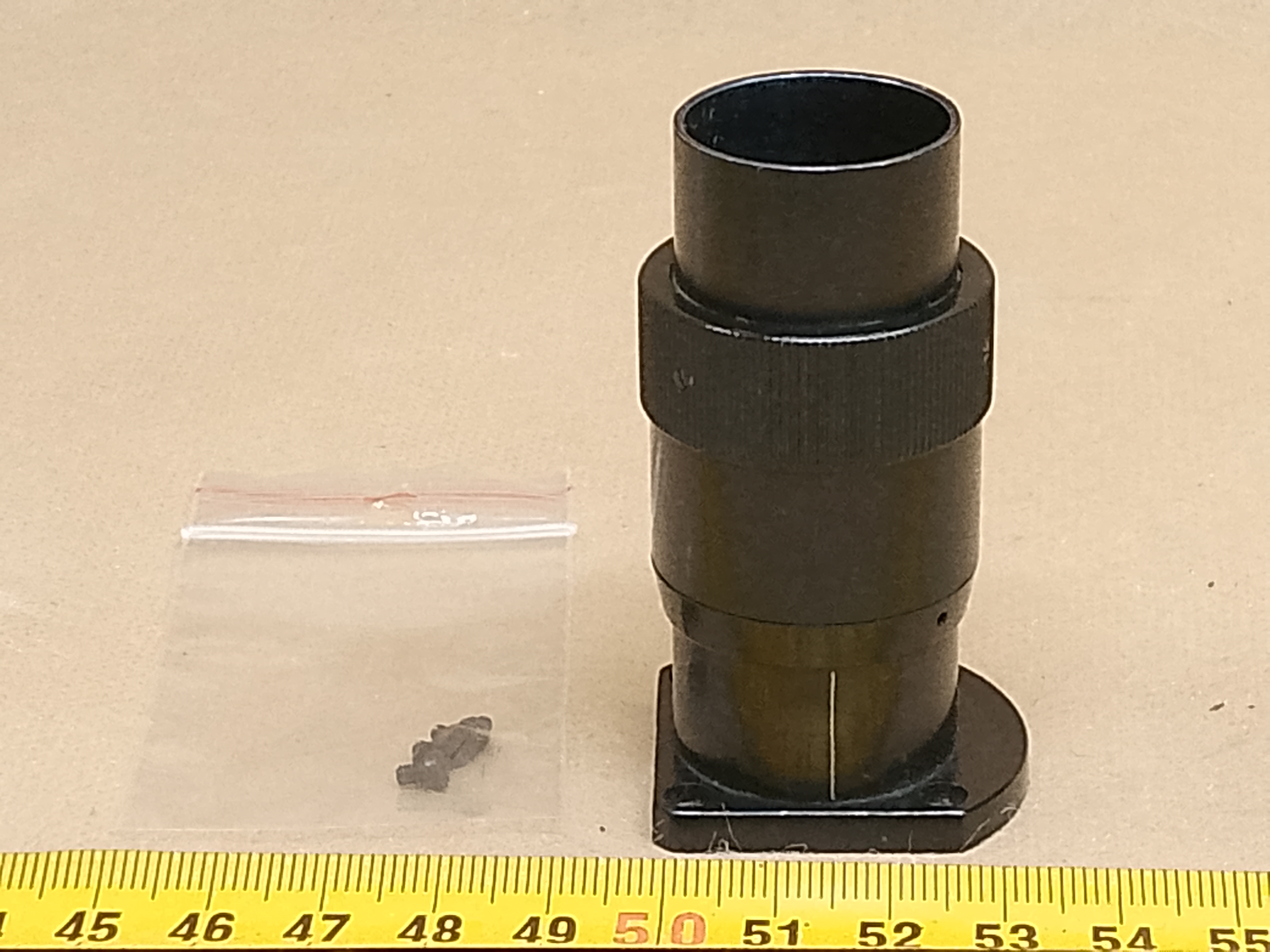

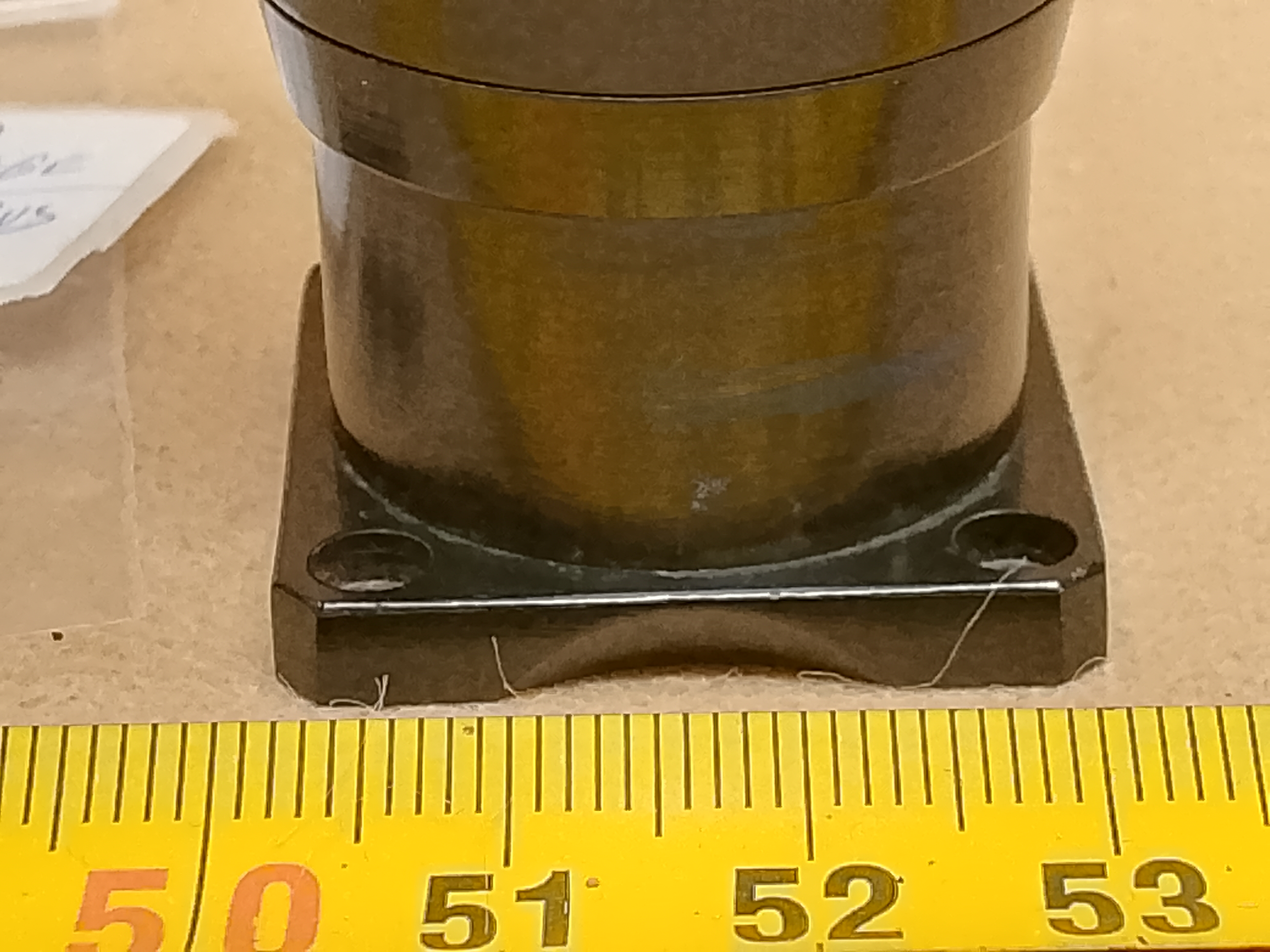

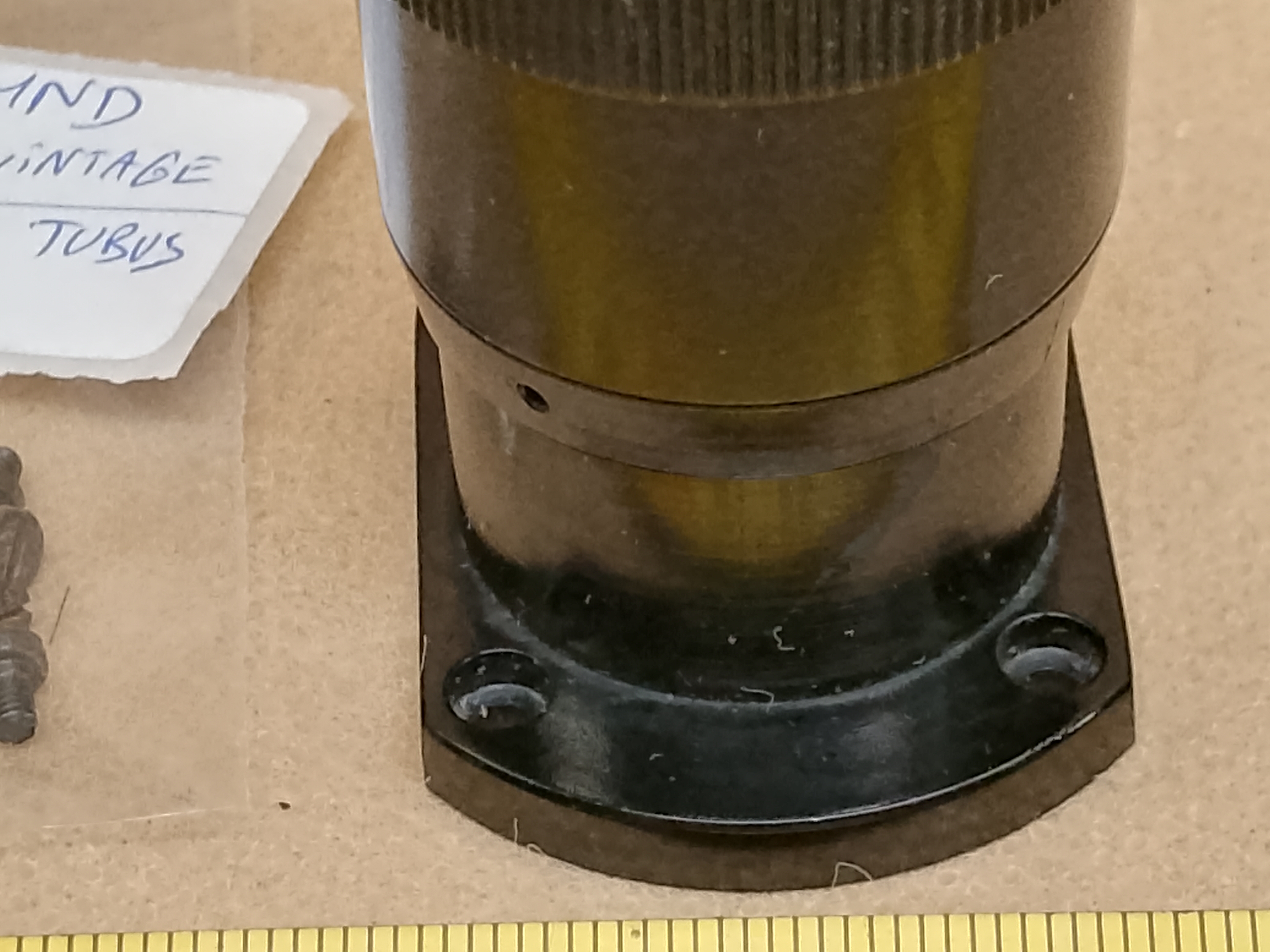

Photo #1 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #2 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #3 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #4 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #5 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #6 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #7 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #8 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #9 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #10 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo #11 - PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
This is description of this part:
Eyepiece tube for 23,2 mm eyepieces for the binocular head PZO MND-5.
This is a tube with an assembled diopter adjustment ring allowing correction of a vision defect in one eye and proper adjustment of image sharpness.
The tube is universal - there is no difference between the right and left side.
Basic parameters:
- Type: tube with diopter correction ring
- Eyepiece diameter: 23,2 mm
- Side: universal; right and left
- Color: black
This is a service element (repair part) of the PZO MND-5 binocular microscope head. Please note that this is an element (component) for a microscope part (binocular head) and not for a specific microscope model.

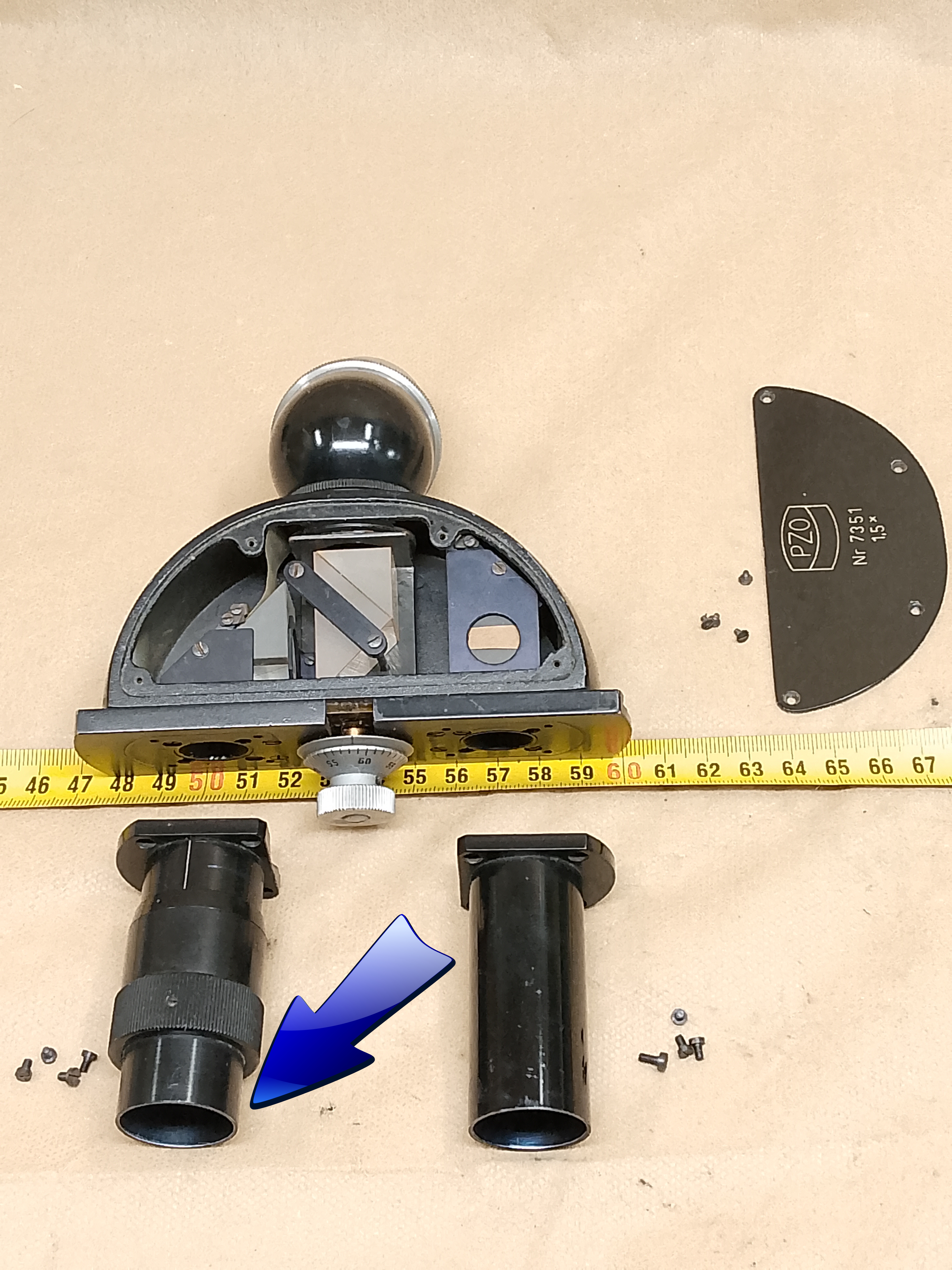

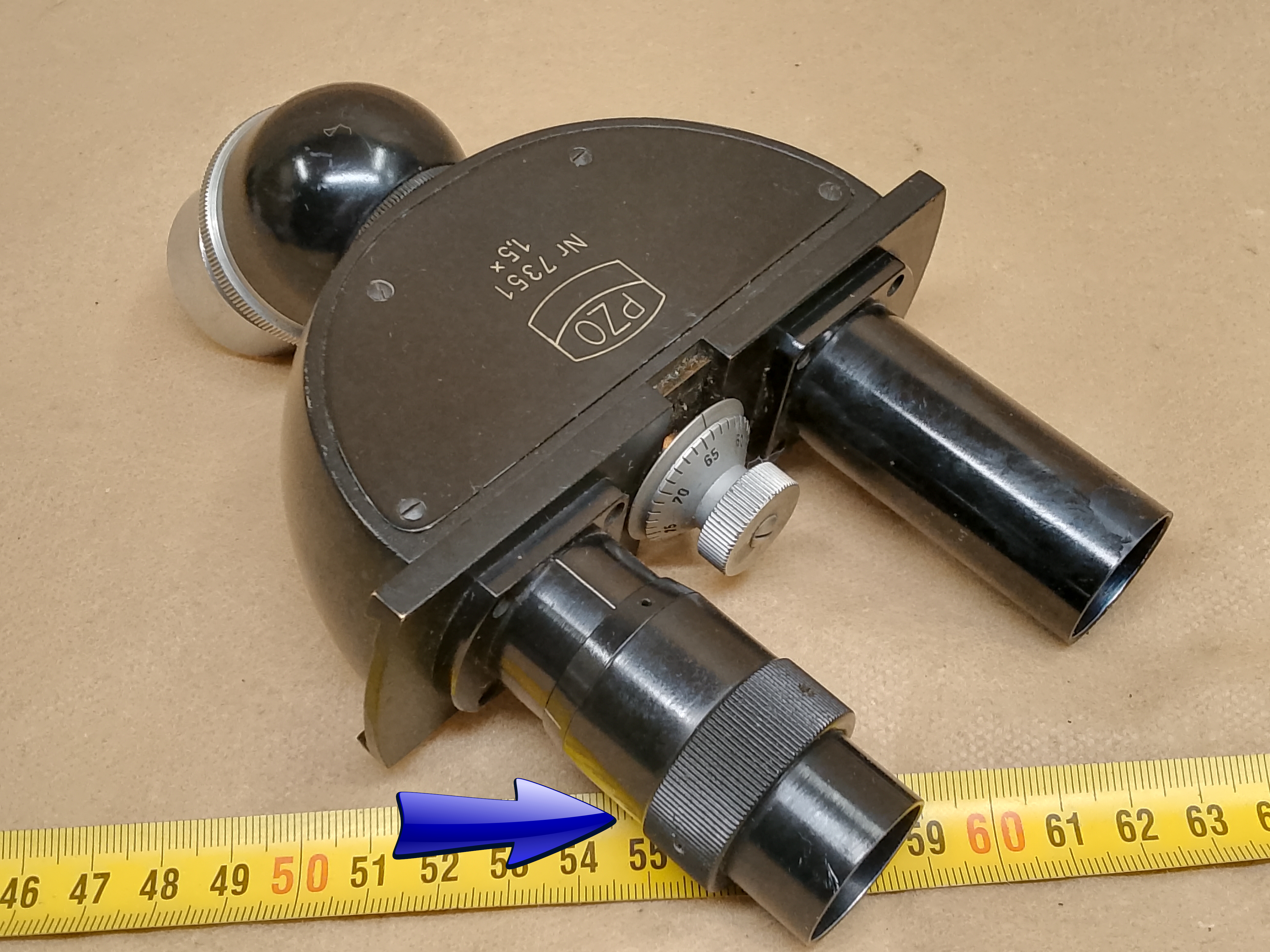

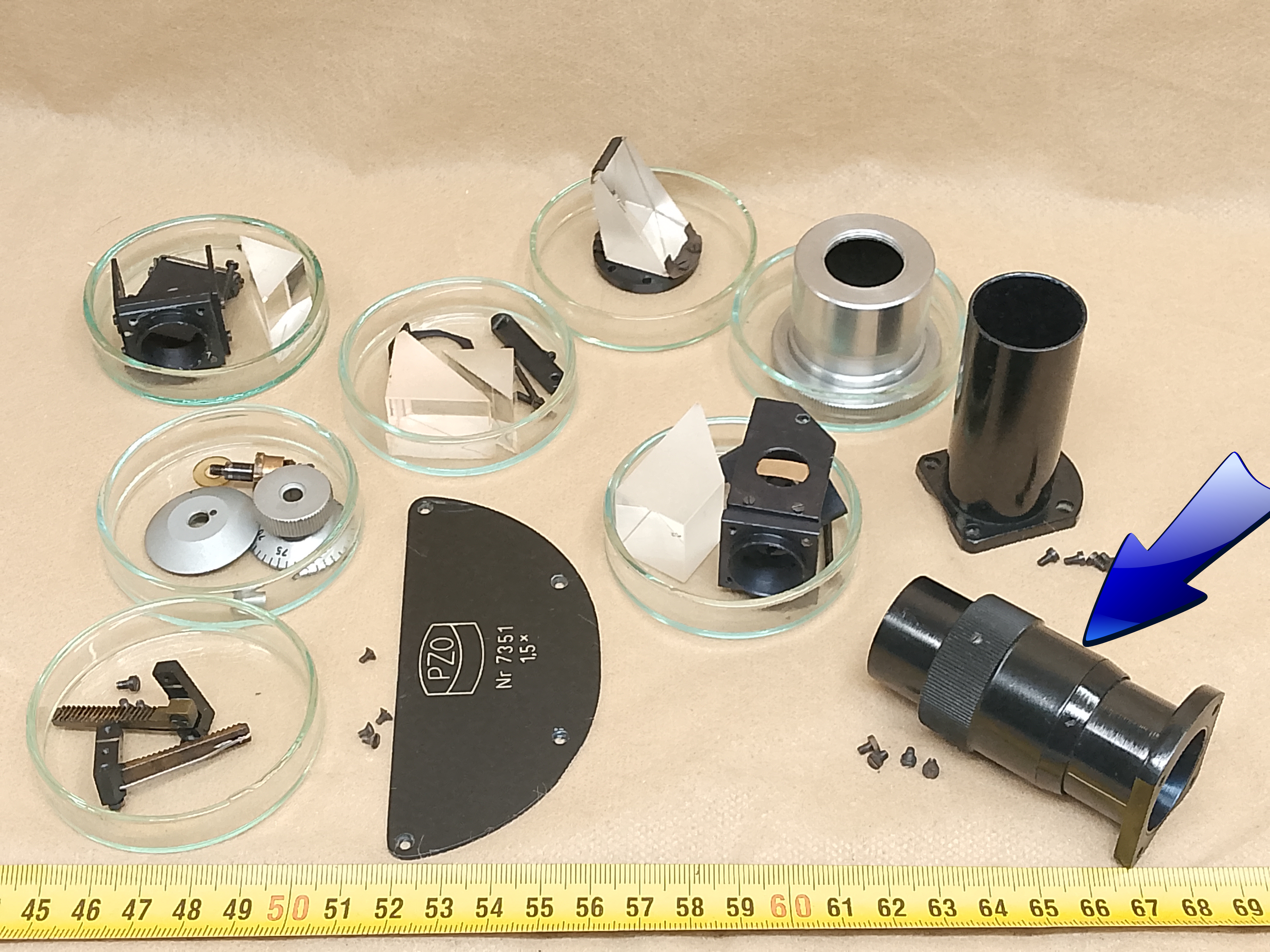

In the photos showing the complete head, an arrow indicates which element it is and where it is located in the head, in order to clearly identify this part.
What is this part needed for?
- very often this tube is dented and an eyepiece cannot be inserted
- very often the diopter adjustment ring becomes damaged and does not function
- if you want diopter adjustment on both eyepiece tubes and replace the simple tube with one equipped with an adjustment ring
- if you need a tube with precise worm adjustment for your own DIY purposes
