More about part: PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring (ID: 99107)


PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
X.com Markdown Media-Markdown

Main Photo

PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring
Photo gallery

Description

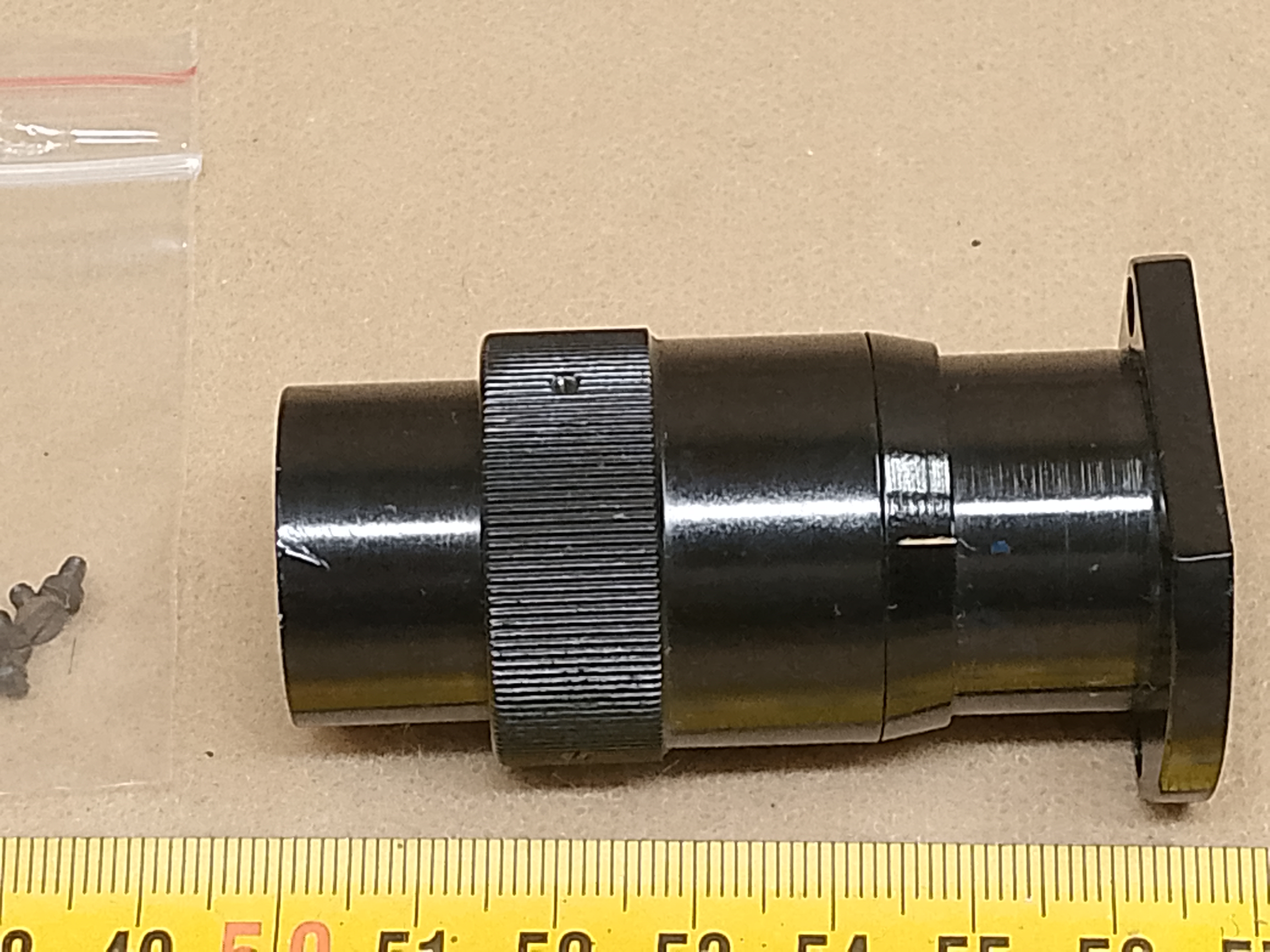

PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring

Eyepiece tube for 23,2 mm eyepieces for the binocular head PZO MND-5.

This is a tube with an assembled diopter adjustment ring allowing correction of a vision defect in one eye and proper adjustment of image sharpness.

The tube is universal - there is no difference between the right and left side.

Basic parameters:
- Type: tube with diopter correction ring
- Eyepiece diameter: 23,2 mm
- Side: universal; right and left
- Color: black


This is a service element (repair part) of the PZO MND-5 binocular microscope head. Please note that this is an element (component) for a microscope part (binocular head) and not for a specific microscope model.

In the photos showing the complete head, an arrow indicates which element it is and where it is located in the head, in order to clearly identify this part.

Manufacturer

PZO - (Polskie Zaklady Optyczne) ➔ All parts

It comes from

PZO MND-5 ➔ All parts

Why do you need this?

  • very often this tube is dented and an eyepiece cannot be inserted
  • very often the diopter adjustment ring becomes damaged and does not function
  • if you want diopter adjustment on both eyepiece tubes and replace the simple tube with one equipped with an adjustment ring
  • if you need a tube with precise worm adjustment for your own DIY purposes

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component PZO - MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is PZO (Polskie Zaklady Optyczne)

Is this microscope component new?

NO - this item was removed from PZO MND-5 , has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the PZO MND-5

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • very often this tube is dented and an eyepiece cannot be inserted
  • very often the diopter adjustment ring becomes damaged and does not function
  • if you want diopter adjustment on both eyepiece tubes and replace the simple tube with one equipped with an adjustment ring
  • if you need a tube with precise worm adjustment for your own DIY purposes

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need PZO MND-5 microscope binocular head eyepiece tubus with diopter adjustment ring (ID 99107) , just write at info@microscopeparts.eu
