More about part: Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible (ID: 99865)


Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible
X.com Facebook Youtube Markdown Media-Markdown

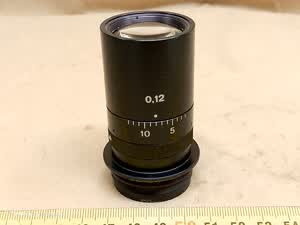

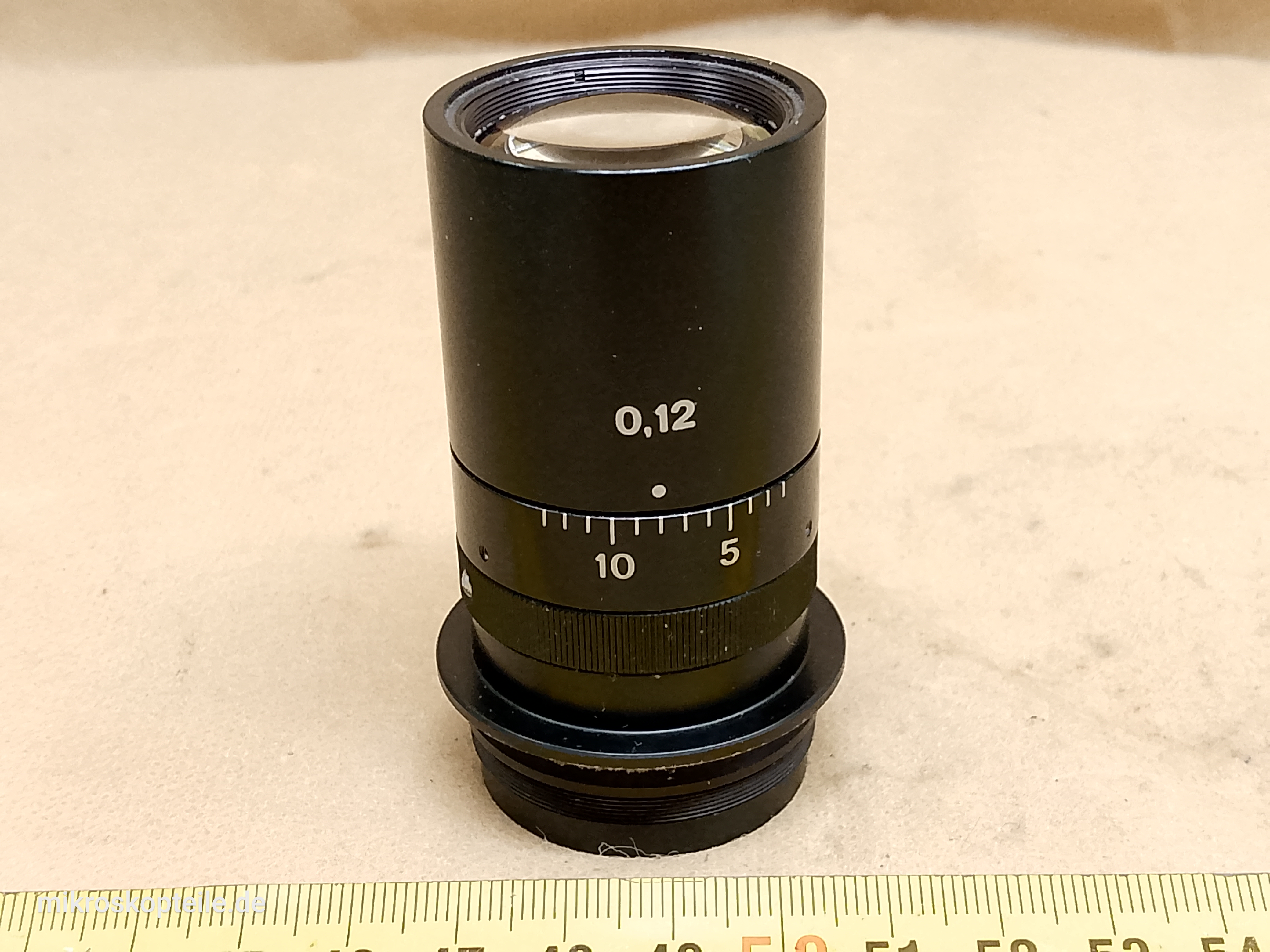

Main Photo

Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible
Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible
Photo gallery Video

Description

Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible

Aplanatic low numerical aperture condenser for the Carl Zeiss Jena Jenaval microscope.

Carl Zeiss Jena Jenaval and Jenalumar microscopes each have two condensers - a low-power survey condenser with low numerical aperture and a main condenser with high aperture. Both sit on a common carrier at the same time, which lets you switch between them. What I am offering here is the condenser alone, so without the carrier.

Parameters of this condenser:

Manufacturer
Carl Zeiss Jena
Numerical aperture N.A.
0.12
Correction
aplanatic
Mounting
the condenser screws into a dedicated carrier. The thread diameter is 36 mm.
Iris diaphragm
yes, the condenser has a ring that opens and closes the diaphragm
Removable top lens
no
Intended use
this condenser model was fitted in Carl Zeiss Jena Jenaval microscopes


This condenser can also be screwed into the carrier of Carl Zeiss Jena Jenalumar microscopes - it is the same carrier as in Jenaval microscopes. Note, however, that Jenalumar microscopes came with a 0.20 N.A. condenser as standard (you can see it here: [[ LINK ]]).

A condenser with such a low numerical aperture is intended for observation with low magnification microscope objectives (1.25x / 3.2x / 6.3x, 10x at most).

Manufacturer

Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts

It comes from

This part was removed from the following microscope:

Carl Zeiss Jena Jenaval ➔ All parts

Why do you need this?

This microscope part is typically used for the following purposes:

  • if this condenser is missing from your Carl Zeiss Jena Jenaval microscope, because someone unscrewed it, for example
  • if you have a microscope with this condenser but it is damaged - the diaphragm blades are bent or broken, for instance
  • if you have a Carl Zeiss Jena Jenalumar microscope and deliberately want to fit a 0.12 N.A. condenser in it
  • if you want to use this condenser as the only condenser in a different microscope and mount it there with your own DIY holder

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Carl Zeiss Jena - Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Carl Zeiss Jena (VEB Carl Zeiss Jena DDR (former East Germany))

Is this microscope component new?

NO - this item was removed from Carl Zeiss Jena Jenaval microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Carl Zeiss Jena Jenaval
  • Carl Zeiss Jena Jenalumar

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if this condenser is missing from your Carl Zeiss Jena Jenaval microscope, because someone unscrewed it, for example
  • if you have a microscope with this condenser but it is damaged - the diaphragm blades are bent or broken, for instance
  • if you have a Carl Zeiss Jena Jenalumar microscope and deliberately want to fit a 0.12 N.A. condenser in it
  • if you want to use this condenser as the only condenser in a different microscope and mount it there with your own DIY holder

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Carl Zeiss Jena Jenaval aplanatic N.A.0.12 low-power microscope condenser | Jenalumar compatible (ID 99865) , just write at info@microscopeparts.eu
