More about part: Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield (ID: 99585)


Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

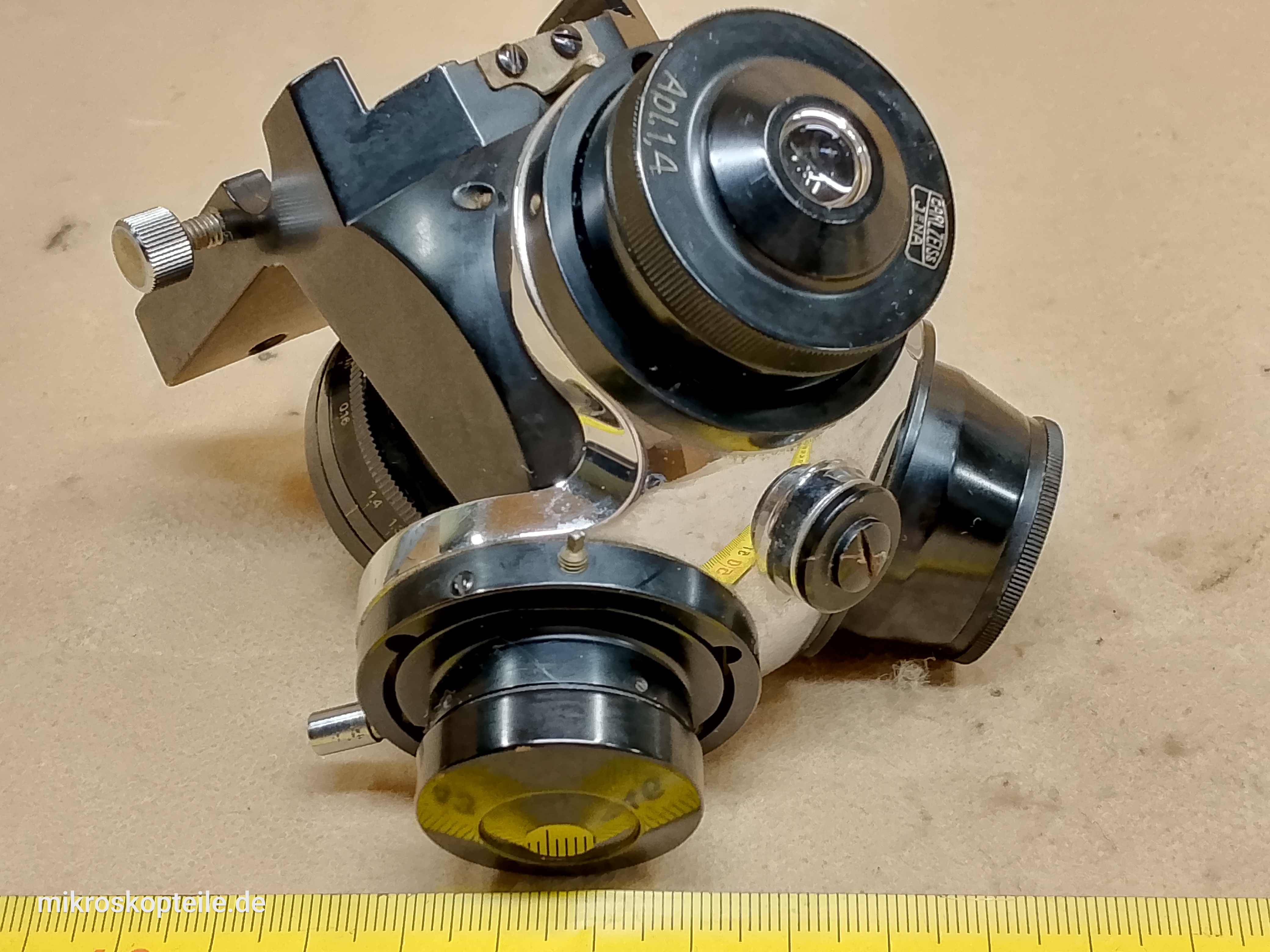

Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield
Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield
Photo gallery Video

Description

Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield

Pancratic microscope condenser for Carl Zeiss Jena Lumipan microscopes.

Basic specifications and parameters:

Manufacturer
Carl Zeiss Jena
Number of lenses
3
Numerical aperture N.A.
variable, from N.A. 0.16 to N.A. 1.4
Aperture diaphragm
no
Compatible microscope
Carl Zeiss Jena Lumipan


Mechanically, this condenser is mounted on a dovetail guide located beneath the microscope stage.

Several important notes:

  • this pancratic condenser is compatible only with the Carl Zeiss Jena Lumipan microscope
  • this condenser is not compatible with the Carl Zeiss Jena Nf or Carl Zeiss Jena Nu / Nu2 microscopes, even though the condenser used in those models is very similar
  • this condenser does not include an iris diaphragm because the Carl Zeiss Jena Lumipan microscope has its aperture diaphragm located in the microscope base, directly below the condenser


In the last photograph, an arrow indicates which component is being described and where it is located in the microscope, making it easy to identify this part. In addition, the attached video shows how the individual components of this condenser move.

▼ More about this microscope part

This condenser is often used as a "donor of parts" for DIY projects, for example:
- the Apl. 1.4 lens is often used to modify (upgrade) condensers with a lower numerical aperture N.A. in various microscopes
- the dark-field lens is very often used to build a custom cardioid condenser

Manufacturer

Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts

It comes from

Carl Zeiss Jena Lumipan ➔ All parts

Why do you need this?

  • if you own a used Carl Zeiss Jena Lumipan microscope without a condenser
  • if you already have a pancratic condenser but it is damaged or of very poor quality
  • if you need components from this condenser for your own DIY projects

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Carl Zeiss Jena - Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Carl Zeiss Jena (VEB Carl Zeiss Jena DDR (former East Germany))

Is this microscope component new?

NO - this item was removed from Carl Zeiss Jena Lumipan microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the Carl Zeiss Jena Lumipan microscope

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if you own a used Carl Zeiss Jena Lumipan microscope without a condenser
  • if you already have a pancratic condenser but it is damaged or of very poor quality
  • if you need components from this condenser for your own DIY projects

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Carl Zeiss Jena Lumipan microscope pancratic condenser Apl. 1.4 with cardioid darkfield (ID 99585) , just write at info@microscopeparts.eu
