More about part: Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x (ID: 99313)

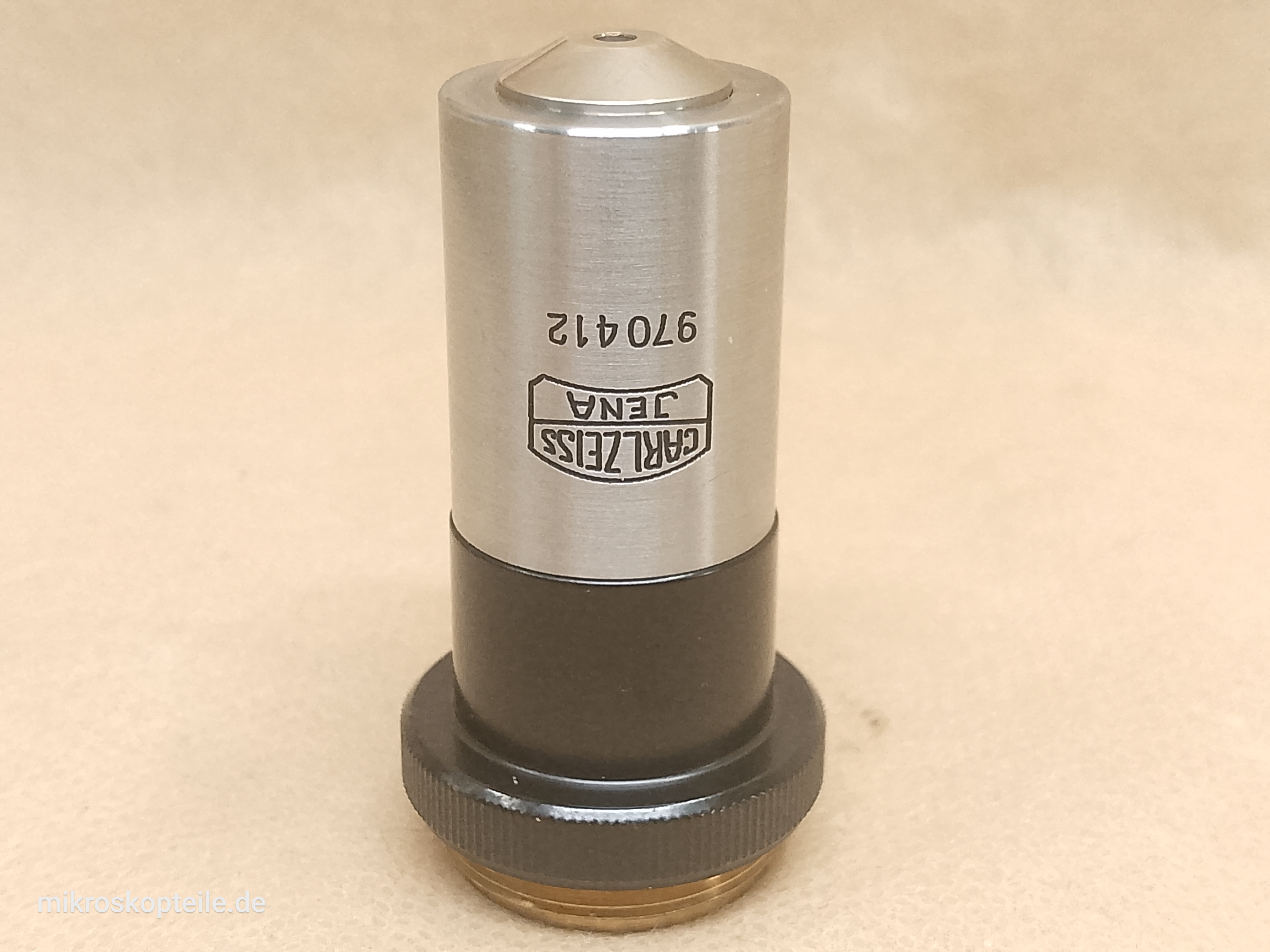

Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x
X.com Facebook Markdown Media-Markdown

Main Photo

Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x
Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x
Photo gallery

Description

Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x

Manufacturer: Carl Zeiss Jena
Model: Planachromat 20/0,40 160/0,17 Phv
Magnification: 20x
Correction: Plan-Achromat
Numerical Aperture: 0,40
Tube Length: 160 mm
Focal Length: 45 mm
Cover Glass: yes, 0,17 mm
Immersion: no
Thread: RMS
Info: Phv = phase contrast variable

It can be used with any microscope from any manufacturer, along with a compatible Phv phase contrast condenser. The microscope must be compatible, meaning it supports RMS objectives, TL = 160 mm, FL = 45 mm.

Manufacturer

Carl Zeiss Jena - (VEB Carl Zeiss Jena DDR (former East Germany)) ➔ All parts

It comes from

Carl Zeiss Jena Nf ➔ All parts

Why do you need this?

  • If you have a microscope without objectives and need to restock it using original parts
  • If you have a microscope that doesn't have an objective lens with this magnification and want to restock it
  • If you have such an objective lens, but it's of very poor quality or damaged
  • If you're cautious and want to have a spare objective lens

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Carl Zeiss Jena - Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Carl Zeiss Jena (VEB Carl Zeiss Jena DDR (former East Germany))

Is this microscope component new?

NO - this item was removed from Carl Zeiss Jena Nf microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Carl Zeiss Jena NfPk
  • Carl Zeiss Jena Eduval
  • Carl Zeiss Jena Eduval-4
  • Carl Zeiss Jena Laboval
  • Carl Zeiss Jena Laboval-2
  • Carl Zeiss Jena Laboval-3
  • Carl Zeiss Jena Laboval-4
  • Carl Zeiss Jena Phv Apl 0,9
  • Carl Zeiss Jena Amplival
  • Carl Zeiss Jena Ergaval
  • Carl Zeiss Jena Docuval
  • Carl Zeiss Jena Nf
  • Carl Zeiss Jena Lg
  • PZO Biolar

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • If you have a microscope without objectives and need to restock it using original parts
  • If you have a microscope that doesn't have an objective lens with this magnification and want to restock it
  • If you have such an objective lens, but it's of very poor quality or damaged
  • If you're cautious and want to have a spare objective lens

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need Carl Zeiss Jena Planachromat 20/0,40 160/0,17 Phv Phase Contrast microscope objective 20x (ID 99313) , just write at info@microscopeparts.eu
