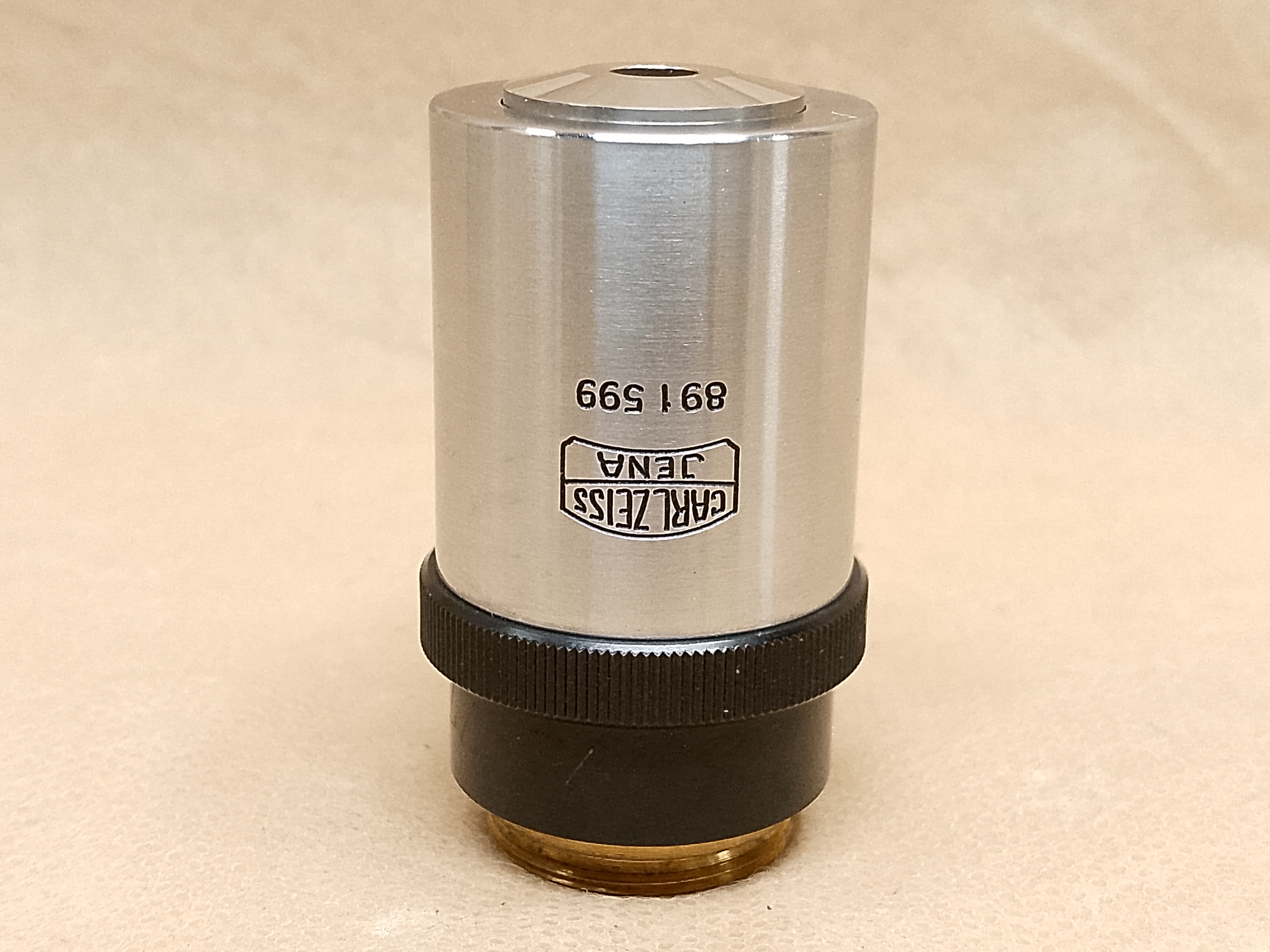

More about part: Carl Zeiss Jena NU / Amplival M19 Planachromat 25x/0,50 oo/0,17 microscope objective (ID: 99047)

Some facts about Carl Zeiss Jena objectives with M19 thread (CZJ M19) and their compatibility with various microscopes from this manufacturer:
- these objectives are most commonly used for technical applications rather than biological applications, therefore most objectives available on the secondary market are intended for use without a cover glass (designation oo/0)
- CZJ M19 objectives intended for biological applications (designation oo/0,17) are most commonly used on Carl Zeiss Jena NU / NU2 microscopes
- in Carl Zeiss Jena Nf and Lumipan microscopes, CZJ M19 objectives are used together with an EPI illuminator
- CZJ M19 objectives can be used in Carl Zeiss Jena Polmi-A microscopes, but they provide a different magnification than the nominal value
- Carl Zeiss Jena Amplival / Amplival Pol / Amplival Interphako / Peraval microscopes feature interchangeable nosepieces, and a dedicated nosepiece for M19-thread objectives was also produced for these microscopes
- Carl Zeiss Jena Metaval and Neophot microscopes use newer versions of CZJ M19 objectives (with a coarse-knurled edge and shiny housing), although many users still experiment with older M19 objectives on these microscopes
- Carl Zeiss Jena Epignost and BK 70x50 microscopes were produced in various versions with completely different configurations - and some of them operate with CZJ M19 objectives
- Carl Zeiss Jena Vertival / Epival / Nf / BK 70x50 microscopes often allow the use of CZJ M19 objectives in EPI dark-field mode
- on the Carl Zeiss Jena Epityp-2 inverted metallurgical microscope, many users employ biological objectives designed for use with a cover glass, placing the microscope slide "upside down", with the cover glass facing downward toward the objective.
