More about part: Lomo 20 0,40 P polarization microscope objective with pol RMS objective adapter (ID: 99386)

Description

Lomo microscope objective for polarization. The objective was manufactured at the Progress factory - therefore it has a different logo than standard Lomo objectives.

Manufacturer: Lomo
Magnification: 20x
Model: 20 0.40 P
Numerical aperture: 0.40
Tube length: 160 mm
Focal length: 33 mm
Cover glass: yes, 0.17 mm
Thread: RMS + Pol adapter
Info: P = Polarization

This is an objective designed for transmitted light work with a cover glass.

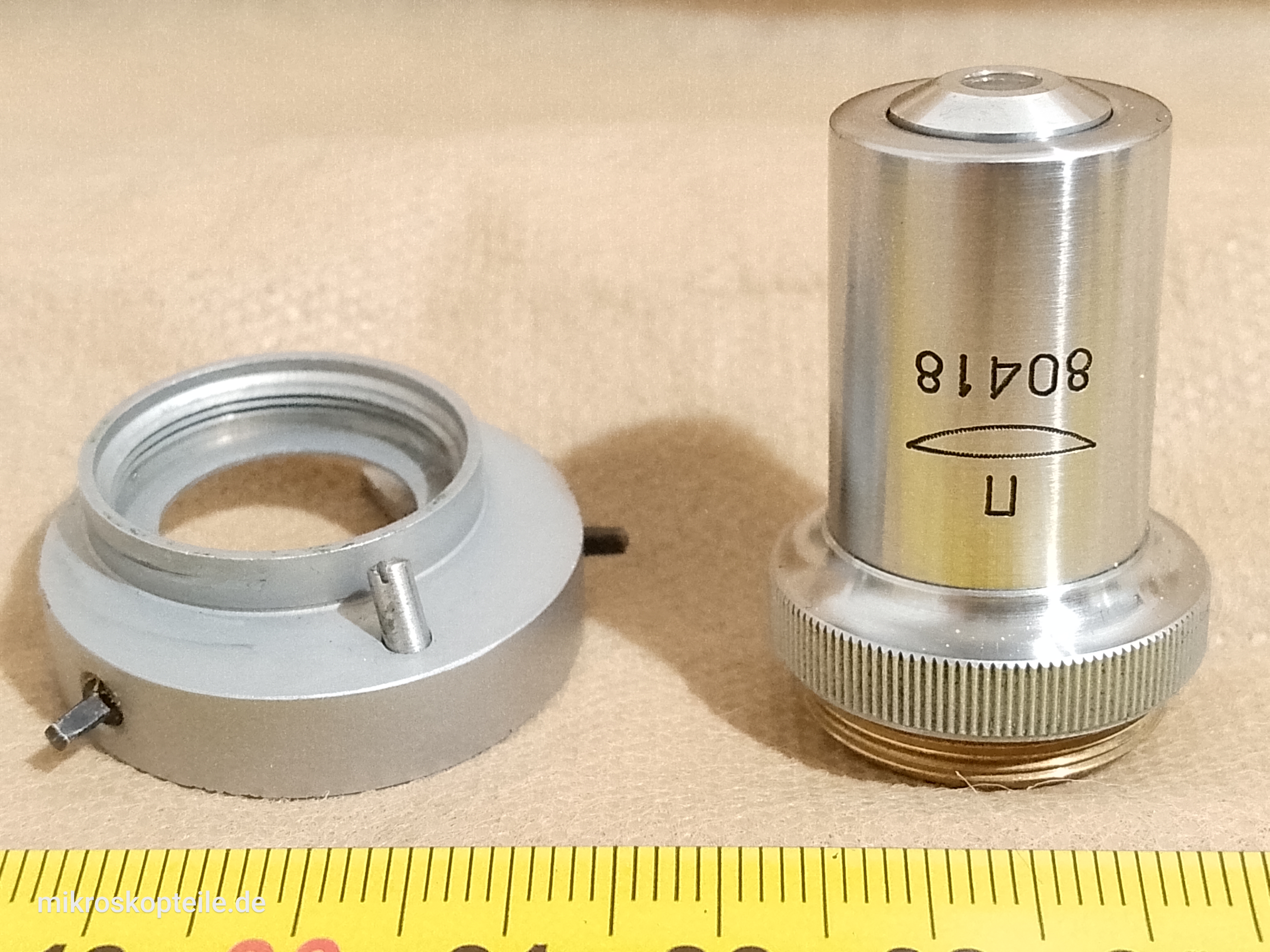

The RMS thread objective is mounted on a dedicated slide-in adapter that allows it to be used in Lomo MIN series and Lomo Polam series microscopes. Of course, the objective can be unscrewed and another objective can be mounted in the adapter.

The objective itself, once removed from the adapter, is a standard objective that can be used in virtually any microscope with an RMS thread. It is a so-called "short objective" (focal length 33 mm). When a 12 mm adapter is added, the total length becomes 45 mm, allowing it to be used with newer microscopes from any manufacturer.

Lomo polarization objectives with RMS thread can be installed in an RMS-M27 adapter and then used in microscopes such as Lomo Biolam M, Lomo Biolam I, Lomo Lumam, or Lomo ML-2. I have also frequently seen such objectives used in Zeiss Axio series microscopes with M27 thread.

The Pol adapter also allows precise centering of the objective relative to the entire optical path - this requires tools (keys / tools).

Info: I have repeatedly seen information stating that this RMS-Pol adapter is compatible with Leitz Wetzlar polarization microscopes - however, I have not personally verified this.

In summary, this objective is dedicated to Lomo MIN-1, MIN-4, MIN-5, MIN-6, MIN-8, Lomo Polam R-113, Polam L-211, Polam L-213, Polam R-311, Polam LMPR microscopes - but it is practically compatible with any microscope from any manufacturer that supports 160 mm objectives.
