More about part: Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974) (ID: 00867)

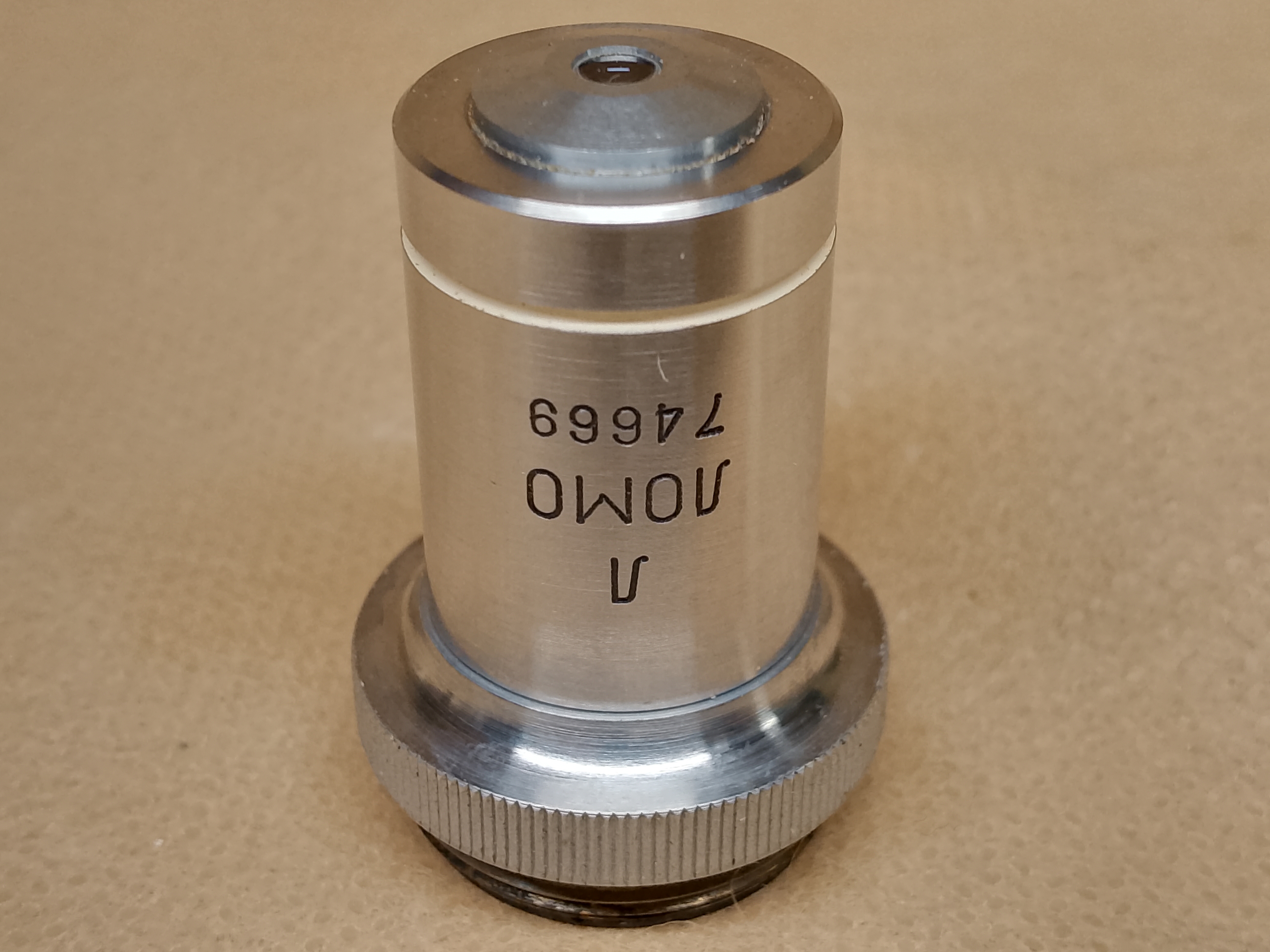

Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974)
X.com Markdown Media-Markdown

Main Photo

Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974)
Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974)
Photo gallery

Description

Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974)

Microscope objective with RMS thread and 40x magnification, featuring increased numerical aperture, designed for water immersion and optimized optical correction for fluorescence illumination.

Manufacturer: LOMO
Model: WI 40 0.75 L
Magnification: 40x
Numerical aperture: 0.75
Optical correction: achromat, optimized for fluorescence microscopy
Tube length: 160 mm
Focal length: approx. 33 mm
Immersion: water
Designation: L = luminescence
Thread: RMS
Year of manufacture: 1974

Despite the L designation, the objective can of course also be used with standard transmitted light illumination.

LOMO objectives marked with L luminescence differ from non-marked versions by:
- improved transmission in the UV and blue spectral range
- reduced autofluorescence of optical glass
- no or strongly reduced use of organic adhesives in the optical assembly

Manufacturer

Lomo - (Leningrad Optical Mechanical Association) ➔ All parts

It comes from

Lomo ML-2 ➔ All parts

Why do you need this?

  • If you want to upgrade your Lomo microscope with original parts
  • If you need a 40x water immersion objective lens for Lomo, Carl Zeiss Jena, PZO, IOR, or other microscopes requiring 33mm and 160mm lenses
  • If you have a Lomo microscope from 1974 (the serial number begins with "74") and want original-era objectives
  • If you don't like oil immersion but want better image quality than standard, dry 40x objectives

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Lomo - WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974)

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Lomo (Leningrad Optical Mechanical Association)

Is this microscope component new?

NO - this item was removed from Lomo ML-2 microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Lomo ML-2
  • Lomo Biolam
  • Lomo Biolam D11
  • Lomo MBI-1
  • Lomo MBR-3
  • IOR ML-4M
  • Carl Zeiss Jena Lg
  • Carl Zeiss Jena Lumipan
  • Lomo MBB-1

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • If you want to upgrade your Lomo microscope with original parts
  • If you need a 40x water immersion objective lens for Lomo, Carl Zeiss Jena, PZO, IOR, or other microscopes requiring 33mm and 160mm lenses
  • If you have a Lomo microscope from 1974 (the serial number begins with "74") and want original-era objectives
  • If you don't like oil immersion but want better image quality than standard, dry 40x objectives

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need Lomo WI 40 0.75 L microscope objective (fluorescence water immersion, RMS 40x / 1974) (ID 00867) , just write at info@microscopeparts.eu
