More about part: Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2 (ID: 99435)


Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2
X.com Facebook Markdown Media-Markdown

Main Photo

Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2
Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2
Photo gallery

Description

Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2

Special diaphragm in holder for the polarizing condenser of the Lomo Polam microscope.

Together with the Lomo Polam polarizing microscope, a set of five such special diaphragms was supplied. The set included phase contrast diaphragms and dark field diaphragms.

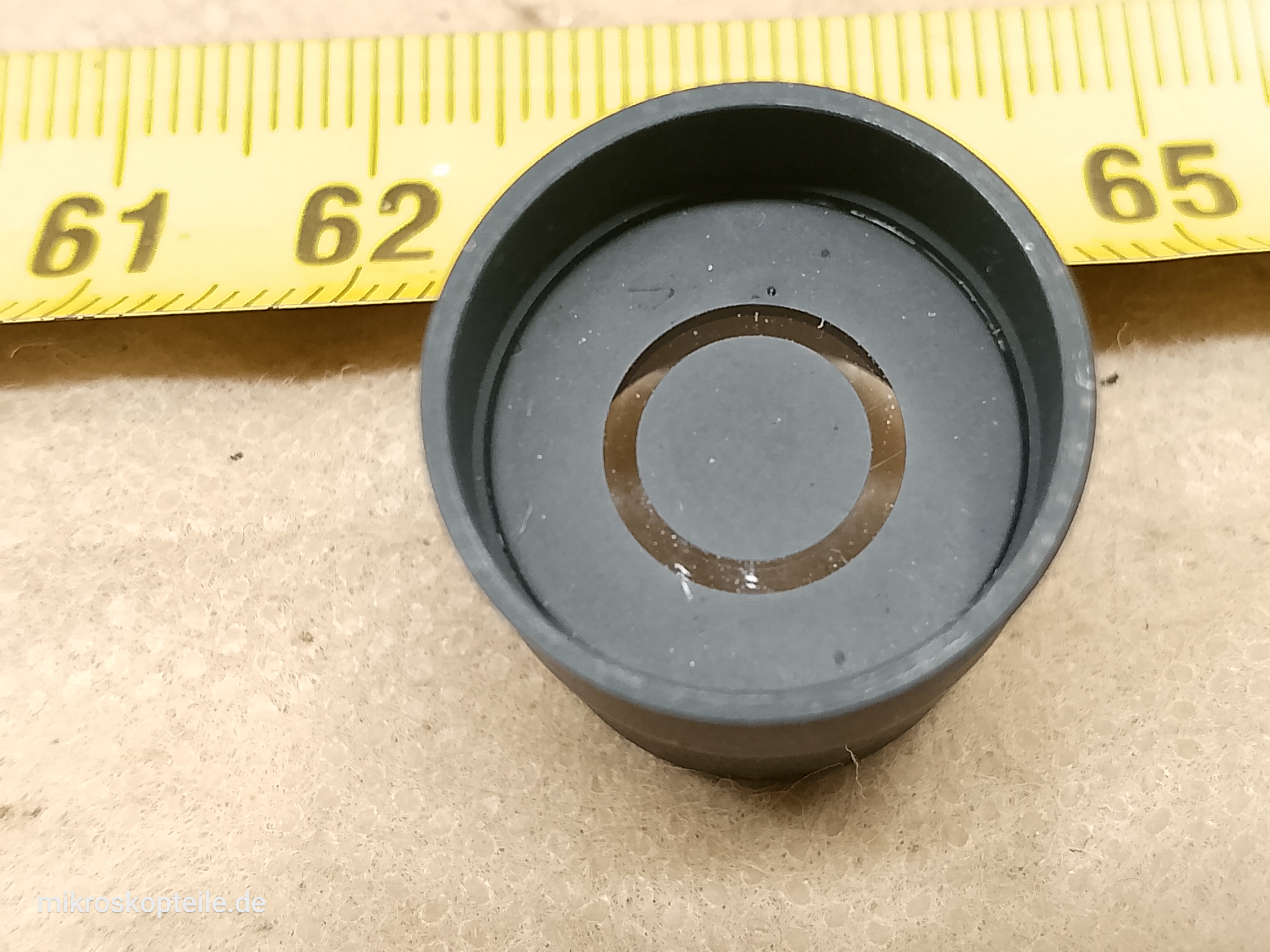

Note - I am showing and offering here one single diaphragm in holder - exactly the one visible in the photos. This is a phase contrast diaphragm (phase annulus). The complete set for the Lomo Polam microscope contains 5 diaphragms.

Important note:
Such diaphragms in a special holder, supplied as a set of five diaphragms, were an accessory for the Lomo Polam polarizing microscope. These diaphragms are mounted onto the polarizing microscope condenser in order to combine these observation techniques and obtain a phase image in polarized light. Please note that the same condensers can also be used in Lomo MIN series polarizing microscopes (for example Lomo MIN-6 or Lomo MIN-8 models) and in Lomo MIK series infrared microscopes (for example Lomo MIK-4). This means that there is nothing preventing the use of these phase annuli in those microscopes as well.


The newest version of the Lomo Polam microscope, namely the Lomo Polam LMPR model, no longer requires this accessory. The Lomo Polam LMPR already has a special polarizing phase contrast disc condenser (somewhat similar to the Lomo KF-4 condenser).

In the last photo in the gallery you can see a page from the Lomo Polam microscope manual where this element is shown. In the manual it is shown in figure number 6, element number 65.
The complete instruction manual for the Lomo Polam microscope is available here: [[ LINK ]]

Manufacturer

Lomo - (Leningrad Optical Mechanical Association) ➔ All parts

It comes from

Lomo Polam L-211 ➔ All parts

Why do you need this?

  • if you have a compatible Lomo condenser and want to use this special phase contrast diaphragm
  • if you want to combine several observation techniques, for example polarization and phase contrast at the same time

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Lomo - Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Lomo (Leningrad Optical Mechanical Association)

Is this microscope component new?

NO - this item was removed from Lomo Polam L-211 microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Lomo Polam R-113
  • Lomo Polam L-211
  • Lomo Polam L-213
  • Lomo Polam R-311
  • Lomo MIN-8
  • Lomo Lumam R1
  • Lomo MIN-6
  • Lomo MIN-1
  • Lomo MIN-5
  • Lomo MIN-4
  • Lomo MIK-1
  • Lomo MIK-4

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if you have a compatible Lomo condenser and want to use this special phase contrast diaphragm
  • if you want to combine several observation techniques, for example polarization and phase contrast at the same time

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need Lomo Polam / MIN-8 polarizing microscope condenser phase contrast annuli, model 65-2 (ID 99435) , just write at info@microscopeparts.eu
