More about part: Lomo MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter (ID: 00822)


Lomo MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter
X.com Markdown Media-Markdown

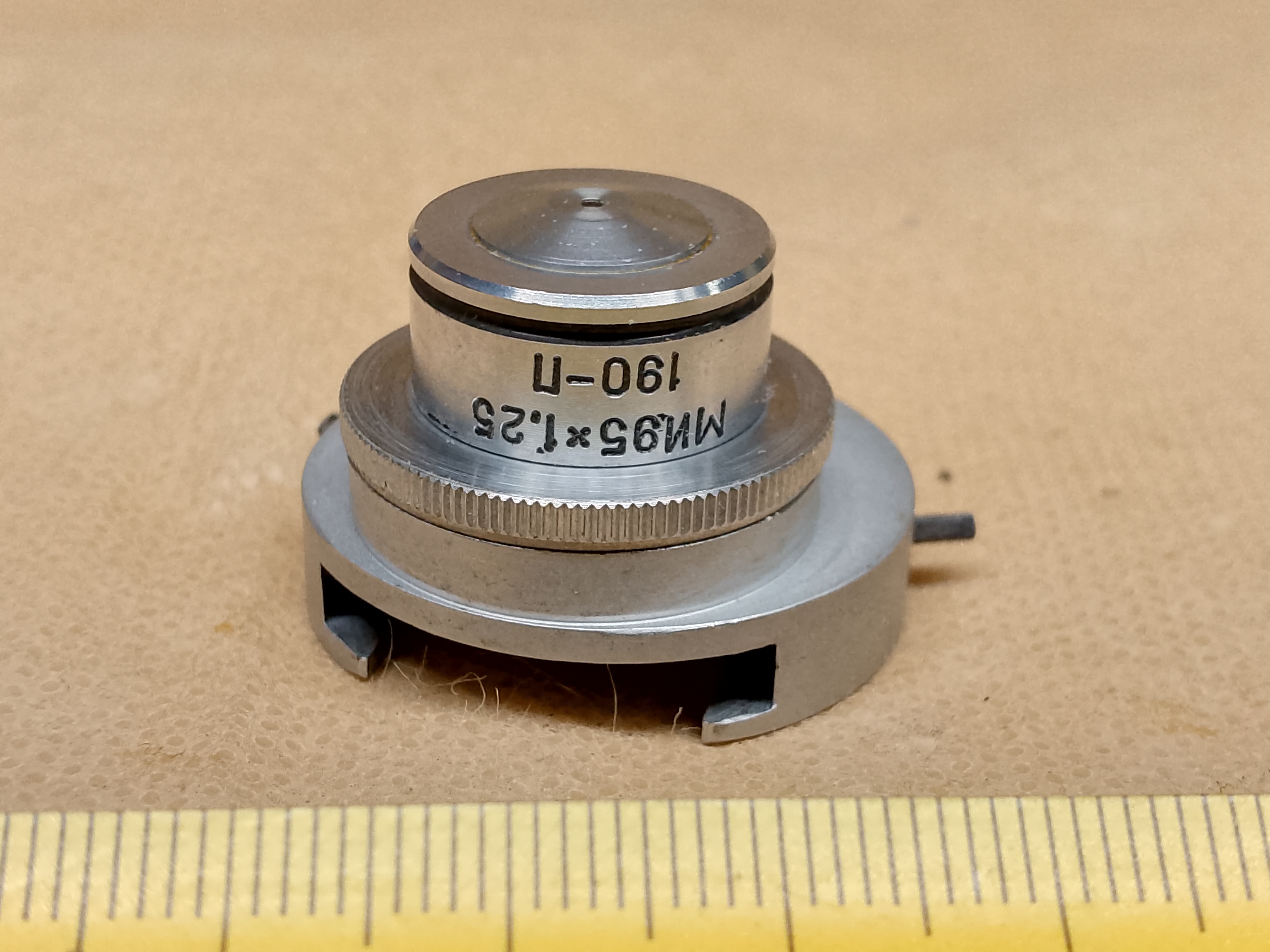

Main Photo

Lomo MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter
Lomo MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter
Photo gallery Video

Description

Lomo MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter

Lomo microscope objective for polarization.

Ideal external condition and perfect optical condition. It is not easy to find an objective in this condition on the second-hand market.

Manufacturer: Lomo
Magnification: 95x
Model: MI 95x 1,25 190-P
Numerical Aperture: 1,25
Tube length: 190 mm
Focal length: (?)
Cover slip: yes, 0,17 mm (?)
Thread: RMS + Pol adapter
Marking: "P" = Polarization
Marking: "MI" = Oil immersion

This objective is for use with transmitted or reflected light with a cover slip (although I am not sure if it definitely requires a cover slip).

This specific item was used with the Lomo Polam P-312 microscope, i.e., with an EPI reflected light illuminator.

The RMS-thread objective is mounted on a suitable sleeve that allows using the objective in Lomo MIN-6 / Lomo MIN-8 / Lomo MIN-1 / Lomo Polam microscopes. Of course, the objective can be unscrewed and another objective can be screwed into the sleeve.

The Pol adapter also allows centering the objective relative to the entire optical path - this requires tools (wrenches / tools).

Info: I have repeatedly seen information stating that this RMS-Pol adapter is compatible with Leitz Wetzlar polarization microscopes - but I have not personally checked this.

Manufacturer

Lomo - (Leningrad Optical Mechanical Association) ➔ All parts

It comes from

Lomo Polam R-311 ➔ All parts

Why do you need this?

  • If you have a polarisation microscope and need an objective lens with this magnification
  • If you only need a slider to use with other objectives

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Lomo - MI 95x 1,25 190-P polarisation microscope oil objective with pol RMS objective adapter

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Lomo (Leningrad Optical Mechanical Association)

Is this microscope component new?

NO - this item was removed from Lomo Polam R-311 microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Lomo Polam R-311
  • Lomo MIN-8
  • Lomo Polam L-213
  • Lomo MIN-6
  • Lomo MIN-1
  • Lomo Polam R-113
  • Lomo Polam L-211
  • Lomo Polam LMPR
  • Lomo MIN-5
  • Lomo MIN-4

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • If you have a polarisation microscope and need an objective lens with this magnification
  • If you only need a slider to use with other objectives

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
