More about part: Swift (Japan) M100x 0,8 210/- RMS metallurgical microscope objective (ID: 90159)


Swift (Japan) M100x 0,8 210/- RMS metallurgical microscope objective
X.com Facebook Markdown Media-Markdown

Main Photo

SWIFT (Japan) M100x 0,8 210/- RMS metallurgical microscope objective
SWIFT (Japan) M100x 0,8 210/- RMS metallurgical microscope objective
Photo gallery

Description

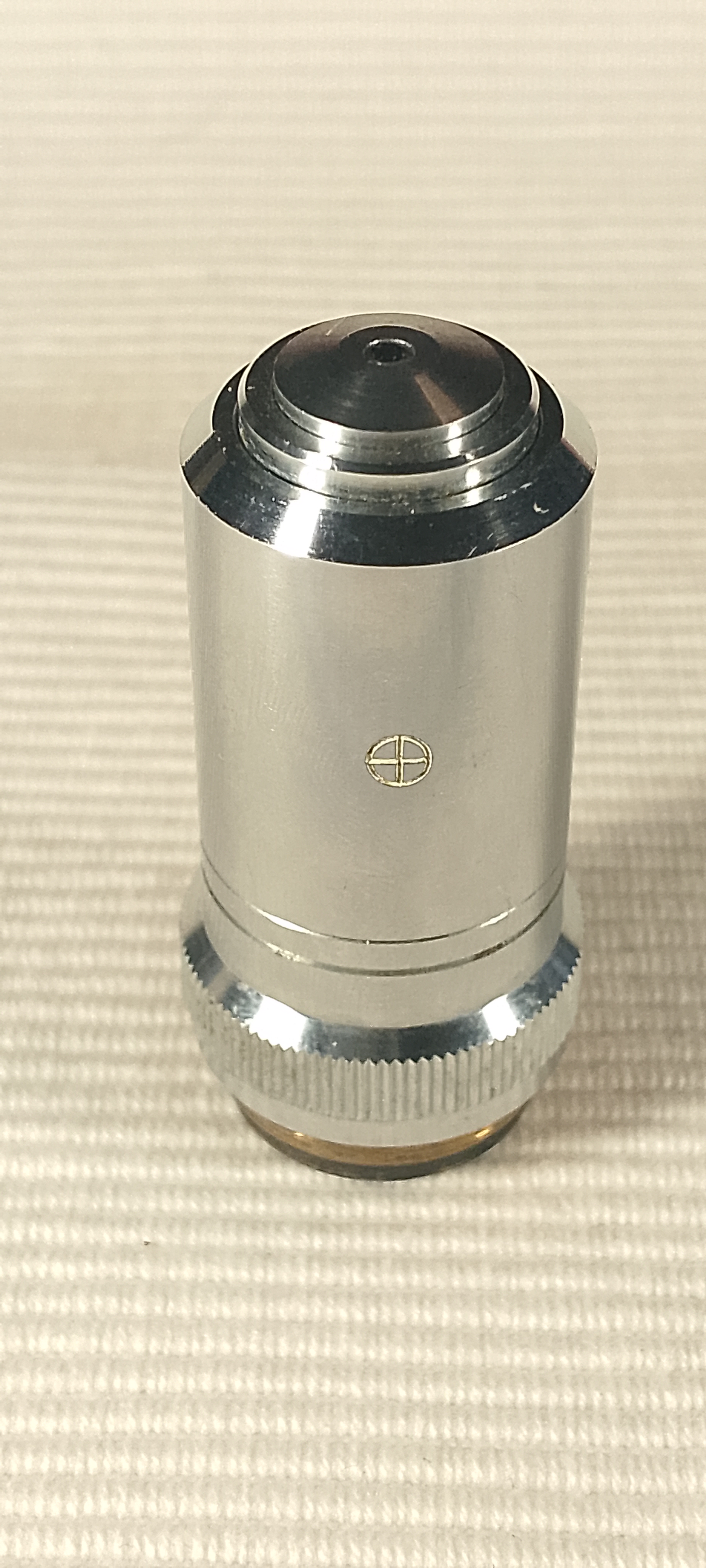

SWIFT (Japan) M100x 0,8 210/- RMS metallurgical microscope objective

Unfortunately, I don't know the name of the microscope model this microscope objective fits. This objective has the Swift logo and a typeface used by Swift (Japan) before the Chinese company Motic took over the manufacturer. I assume this objective is from around the 1970s.

Item: Microscope Objective
Type: Metallurgical Objective
Manufacturer: Swift Japan
Model: M100x 0.8 210/-
Magnification: 100x
Correction: Achromat
Numerical Aperture: 0.8
Tube Length: 210 mm
Focal Length: 45 mm
Cover Glass: No
Immersion: No
Thread: RMS

210 mm is the typical tube length for EPI metallographic objectives. This is most often calculated as a microscope with a 160 mm tube and a 50 mm EPI illuminator. The "M" designation stands for "Metallurgical" and allows for operation without a coverslip.

This may be an objective lens that was part of a reflected light setup and was not mounted on a dedicated metallographic microscope, but on a standard biological microscope (e.g., Swift M1000) with an additional EPI illuminator.

Manufacturer

SWIFT (Japan) - (Swift Optical Instruments (Japan)) ➔ All parts

It comes from

SWIFT (Japan) Metallurgical ➔ All parts

Why do you need this?

  • if you need a lens for working without a cover glass
  • if you need a 100x objective for non-oil immersion work
  • if you need a lens for extreme macro photography

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component SWIFT (Japan) - M100x 0,8 210/- RMS metallurgical microscope objective

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is SWIFT (Japan) (Swift Optical Instruments (Japan))

Is this microscope component new?

NO - this item was removed from SWIFT (Japan) Metallurgical microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the SWIFT (Japan) Metallurgical microscope

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • if you need a lens for working without a cover glass
  • if you need a 100x objective for non-oil immersion work
  • if you need a lens for extreme macro photography

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.
Contact details
If you need Swift (Japan) M100x 0,8 210/- RMS metallurgical microscope objective (ID 90159) , just write at info@microscopeparts.eu
