Webpage www.microscopeparts.eu - sale of original, used and refurbished service, repair, and replacement parts for student, biological, laboratory, measuring, toolmakers, and stereo microscopes. Mail order.


More about part: Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x (ID: 91020)


Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x
X.com Facebook Youtube Markdown Media-Markdown

Main Photo

Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x
Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x
Photo gallery Video

Description

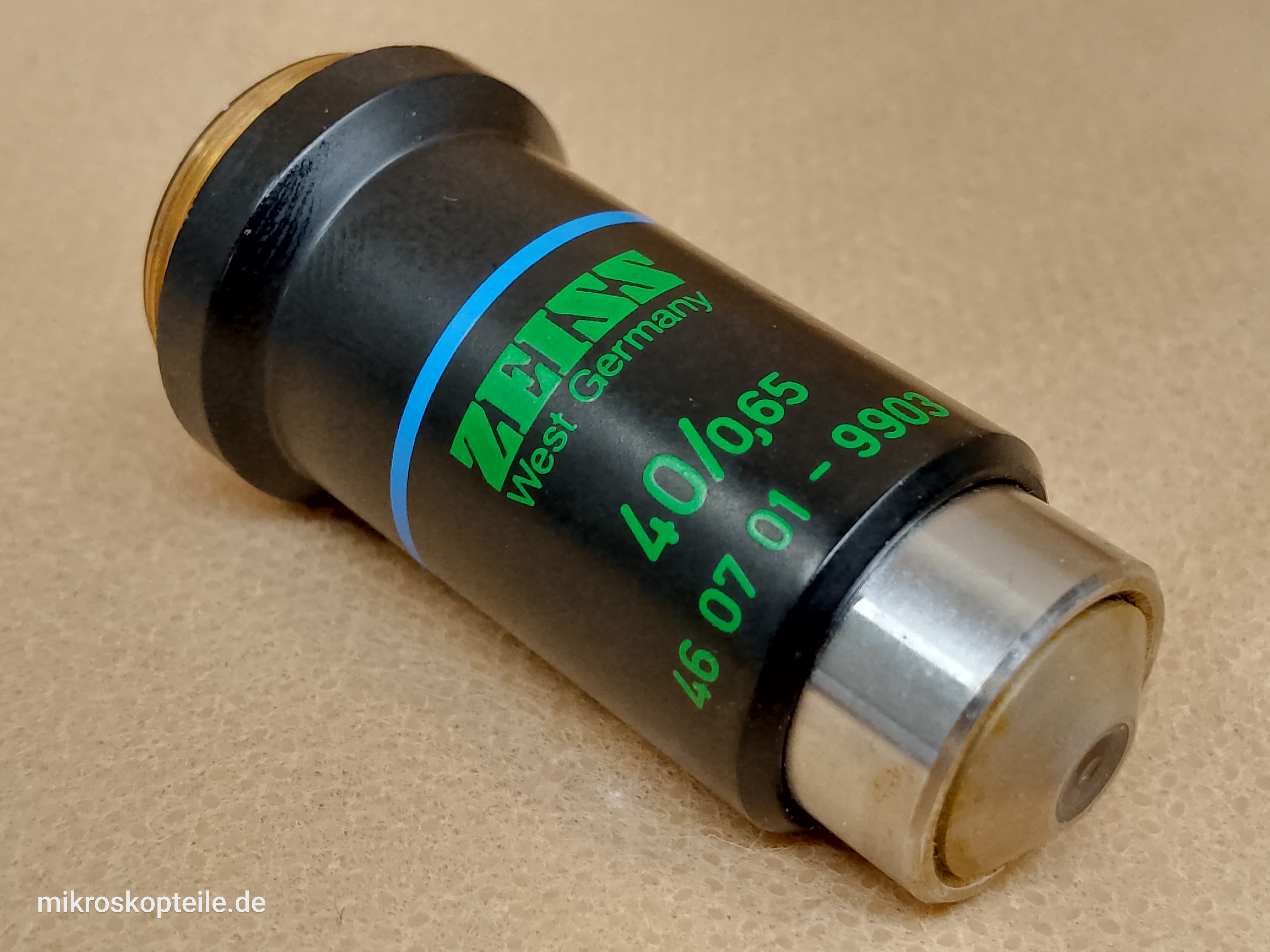

Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x

Carl Zeiss (West Germany) microscope objective for phase contrast.

Basic parameters:

Manufacturer
Zeiss
Designation
Ph2 40/0.65 160/0.17
Manufacturer's number
46 07 01 - 9903
Magnification
40x
Correction
achromatic
Numerical aperture N.A.
0.65
Tube length
160 mm
Focal length
45 mm
Cover glass
yes, 0.17 mm
Immersion
no
Thread
RMS
Ph2
phase contrast


This particular specimen was used in a Zeiss KM microscope, but I have also seen this objective model in Zeiss KF-2 ICS and Zeiss Axiostar microscopes. It fits many microscope models from this manufacturer; some examples are listed in the "compatibility" section.

It can be used with any microscope from any manufacturer together with a suitable phase-contrast condenser (or a phase-ring slider). Of course, the microscope must be compatible, i.e. support RMS objectives, TL=160 mm and FL=45 mm.

Manufacturer

Zeiss - (Carl Zeiss West Germany) ➔ All parts

It comes from

Zeiss KM ➔ All parts

Why do you need this?

  • If you have a microscope without objectives and need to restock it using original parts
  • If you have a microscope that doesn't have an objective lens with this magnification and want to restock it
  • If you have such an objective lens, but it's of very poor quality or damaged
  • If you're cautious and want to have a spare objective lens

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Zeiss - KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Zeiss (Carl Zeiss West Germany)

Is this microscope component new?

NO - this item was removed from Zeiss KM microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Zeiss KM
  • Zeiss Axiovert 25
  • Zeiss Axiostar
  • Zeiss Standard 14
  • Zeiss Standard GFL
  • Zeiss Standard WL
  • Carl Zeiss Jena model
  • Zeiss Universal
  • Zeiss Photomicroscope
  • Zeiss Axiolab
  • Zeiss Standard Junior
  • Zeiss KF 2
  • Zeiss Ultraphot
  • Zeiss Photomicroscope II
  • Zeiss Photomicroscope III RS

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • If you have a microscope without objectives and need to restock it using original parts
  • If you have a microscope that doesn't have an objective lens with this magnification and want to restock it
  • If you have such an objective lens, but it's of very poor quality or damaged
  • If you're cautious and want to have a spare objective lens

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Zeiss KM / KF2 microscope Ph2 40/0,65 160/0,17 PN 460701-9903 phase contrast microscope objective 40x (ID 91020) , just write at info@microscopeparts.eu
