More about part: Zeiss Plan 2,5/0,08 160/- microscope objective RMS 2,5x (ID: 00779)

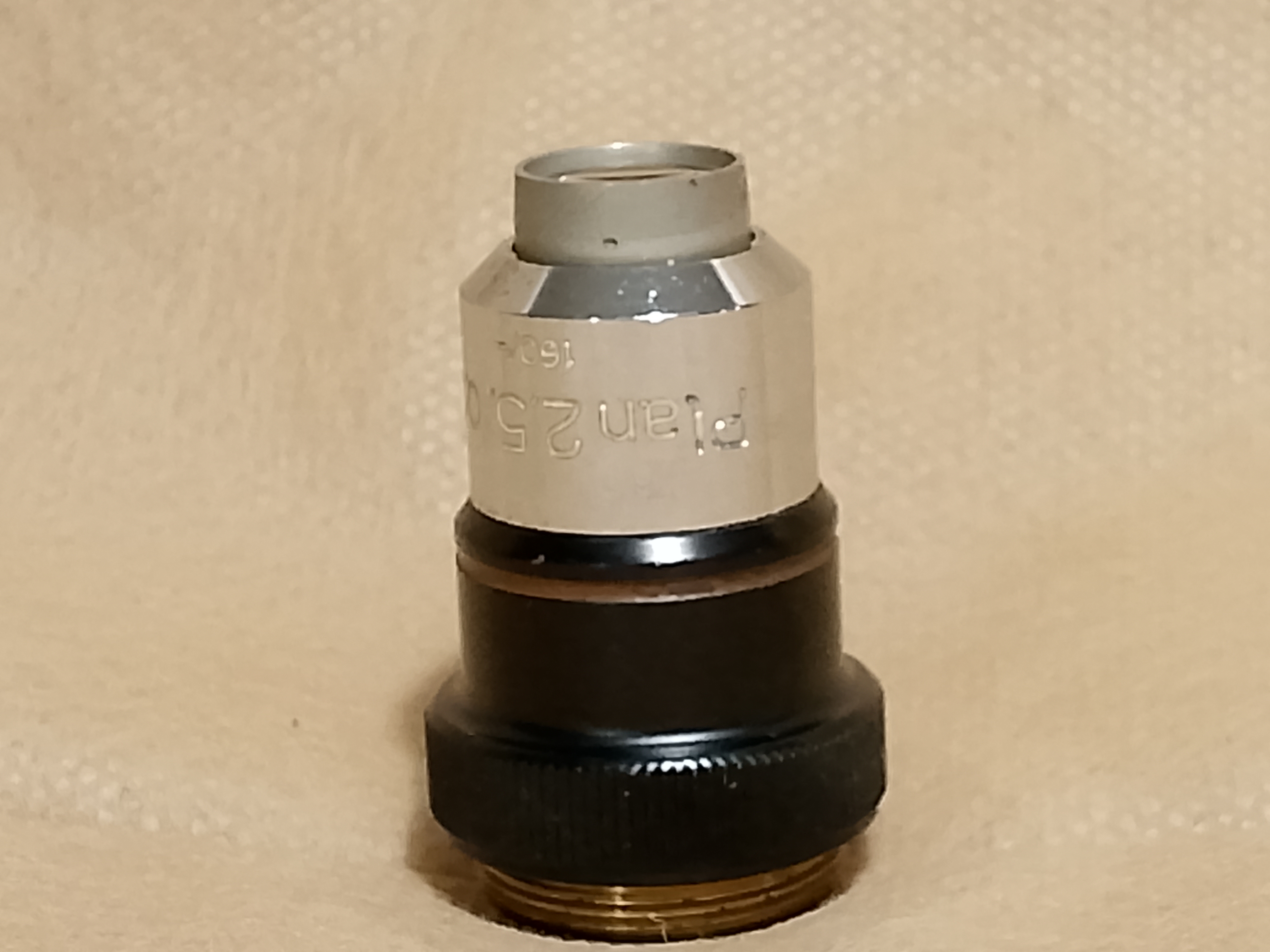

Zeiss Plan 2,5/0,08 160/- microscope objective RMS 2,5x
Main Photo
Description
Zeiss Plan 2,5/0,08 160/- microscope objective RMS 2,5xCarl Zeiss (Germany) microscope objective.
Technical parameters:
- Manufacturer
- Carl Zeiss (Germany)
- Magnification
- 2,5x
- Model
- Plan 2,5/0,08 160/-
- Color correction
- Planachromat
- Numerical aperture
- 0.08
- Tube length
- 160 mm
- Focal length
- 45 mm
- Cover glass
- no
- Immersion
- no
- Thread
- RMS
This lens provides an excellent, wide image, and because it doesn't require a cover glass, it's often used for macro photography and stacking.
Important - this lens is not suitable for taking photos using the "direct-projection" technique, as it requires plan-compensation optics.
A microscope objective with such low magnification is used, among others, in the following fields:
- tissue overview examination in pathomorphology
- observation of insects
- observation of minerals
- observation of inclusions in amber
- handwriting analysis
- observation of micromollusks
- and many others
Manufacturer
Zeiss - (Carl Zeiss West Germany) ➔ All parts
It comes from
Why do you need this?
- If you have a microscope from any brand that lacks an objective lens with this magnification
- If you have such a lens, but it is of very poor quality or damaged
- If you are cautious and want to have such a lens on hand
Compatibility
This microscope part is compatible with the following microscope models:
- Zeiss Standard WL
- Carl Zeiss Jena Nf
- Carl Zeiss Jena Ng
- Carl Zeiss Jena Amplival
- Carl Zeiss Jena Ergaval
- Carl Zeiss Jena Docuval
- Carl Zeiss Jena Eduval
- Carl Zeiss Jena Eduval-4
- Carl Zeiss Jena Laboval
- Carl Zeiss Jena Laboval-2
- Carl Zeiss Jena Laboval-3
- Carl Zeiss Jena Laboval-4
- Carl Zeiss Jena Laboval Pol
- Carl Zeiss Jena Laboval Fluorescence
- Carl Zeiss Jena Fluoval-2
- Olympus BH-2 BHS
- Olympus CK2
- Olympus BHA
- Olympus CH-2 CHT
- Olympus BH-2 BHTU
- PZO Biolar DIC
- PZO Biolar
- PZO Studar
- PZO MB-30
- PZO MS4
- PZO ML4
- PZO ML5
- PZO ML6
- PZO MS6
- PZO Biolar FL
- PZO MB 30S
- Vickers Patholette
- Lomo MICMED-2
- Lomo MIN-8
- Lomo MBB-1
- Lomo Biolam
- Lomo Polam R-113
- Lomo Polam L-211
- Lomo Polam LMPR
- Lomo Polam R-311
- Lomo Biolam D11
- Lomo Polam L-213
- Lomo MBP-1
- Lomo Erudit
- Lomo Biolam 70
- Zeiss Standard 14
- Zeiss Standard GFL
- Zeiss Standard WL
- Zeiss Standard 16
- Zeiss Universal
- Zeiss Photomicroscope
- Zeiss KF 2
- Zeiss Ultraphot
- Meopta DRU-3
- Meopta RU2
- IOR Biorom
- IOR ML-4M
- IOR MC-7
- Hertel & Reuss Studio C
- Hertel & Reuss CN-fl
- Hertel & Reuss Primus
- Hertel & Reuss Superpan
- Hertel & Reuss Labopan
- Hertel & Reuss Metall
- Hertel & Reuss Studio II
- Will Wetzlar V200
- Will Wetzlar V100
- Will Wetzlar V300
- Leitz HM-LUX 3
- Leitz Laborlux S
- Leitz Laborlux 11 Pol S
- Leitz SM-LUX
- Leitz Ortholux II
- Leitz Orthoplan
- Leitz Diaplan
- Reichert Neozet
- Reichert Zetopan
- Reichert Biopan
- Reichert Neopan
- Eschenbach Kolleg SH45
- SWIFT (Japan) M2240
- SWIFT (Japan) Collegiate 400
- SWIFT (Japan) M4000-D
- Watson Microsystem 70
- Vickers M72
- Vickers M70
- Vickers Patholux
- Vickers Patholette
- Olympus CH
- Zeiss Photomicroscope II
- Zeiss Photomicroscope III RS
- Zeiss KM
