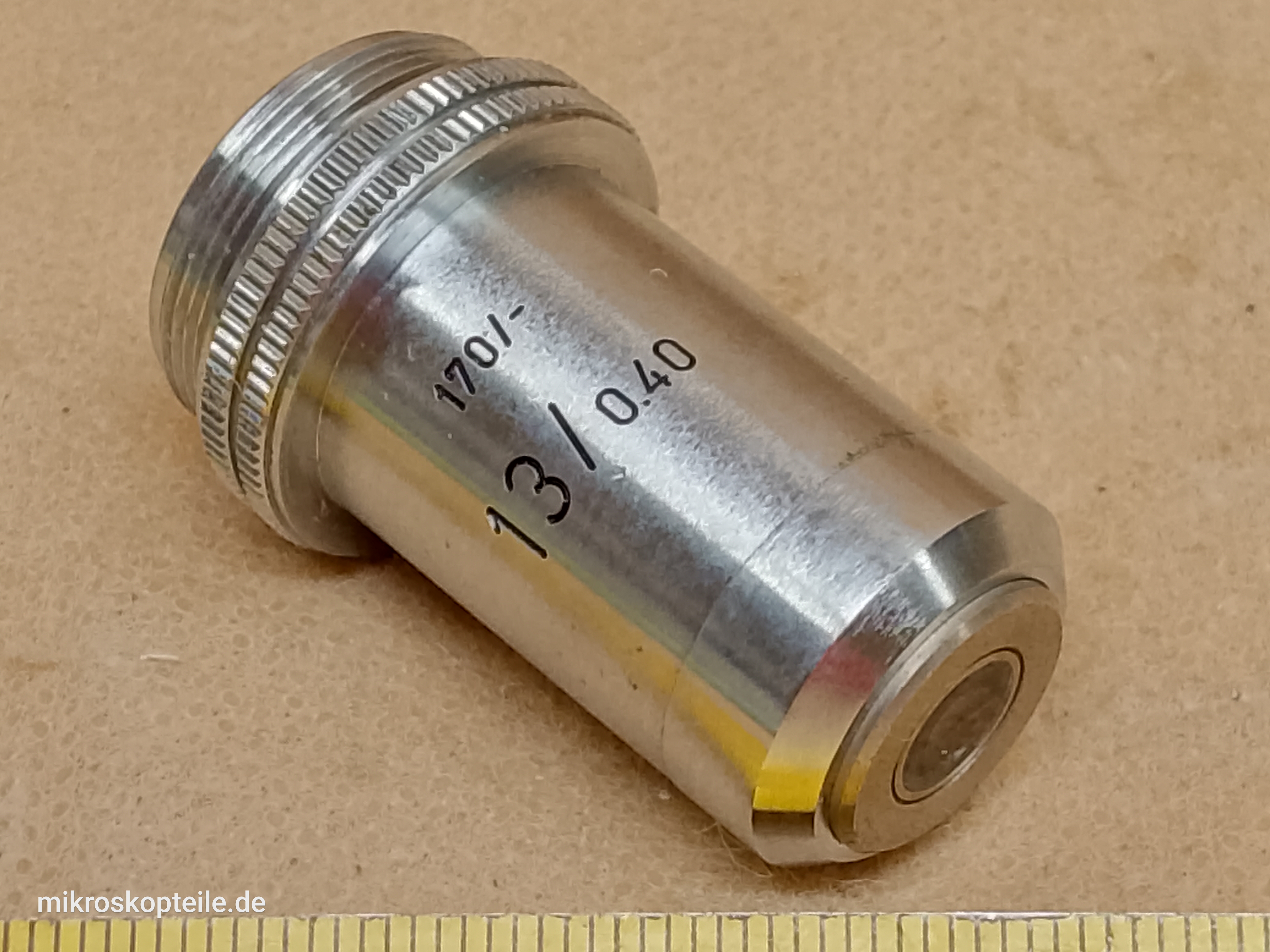

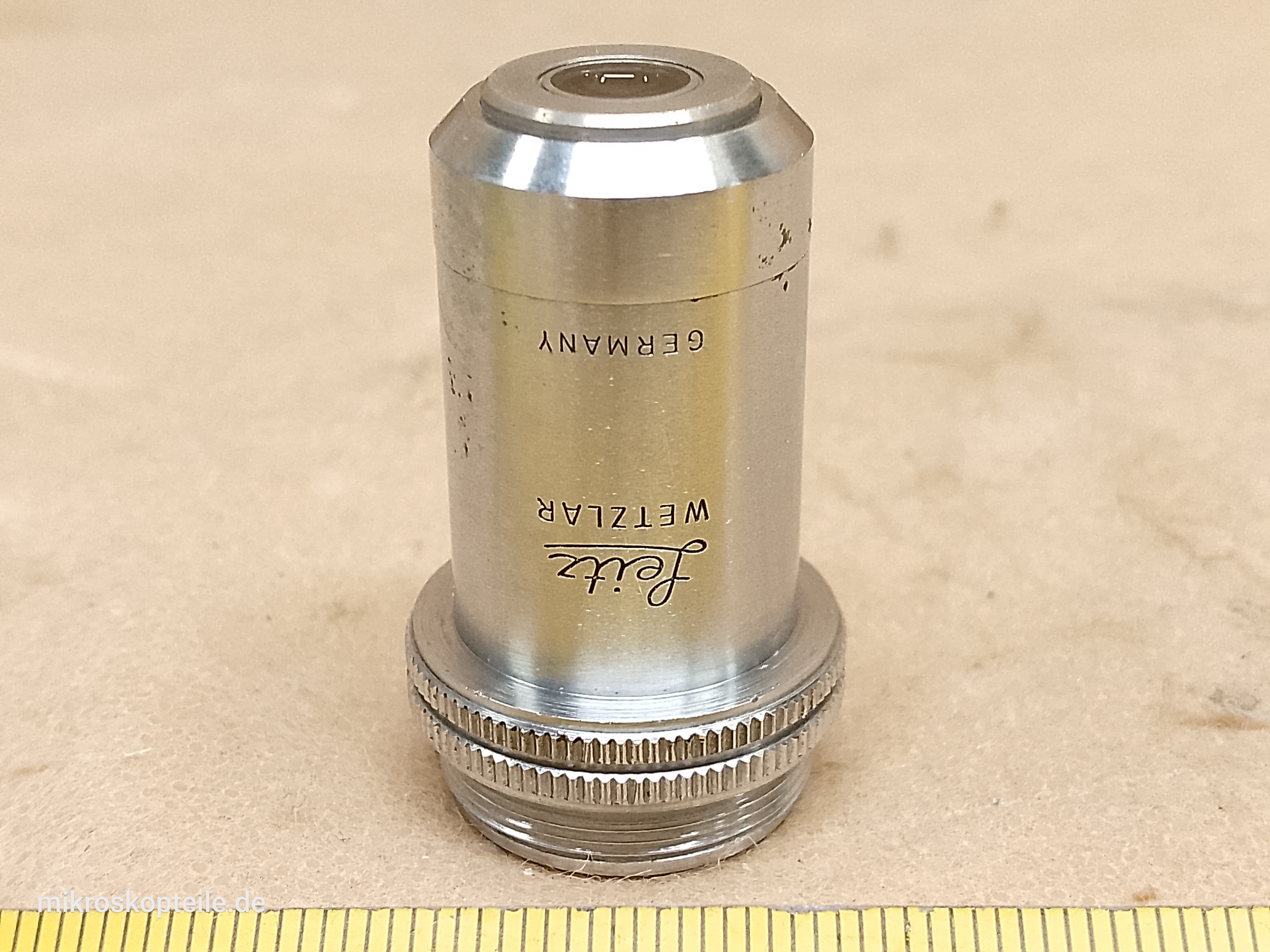

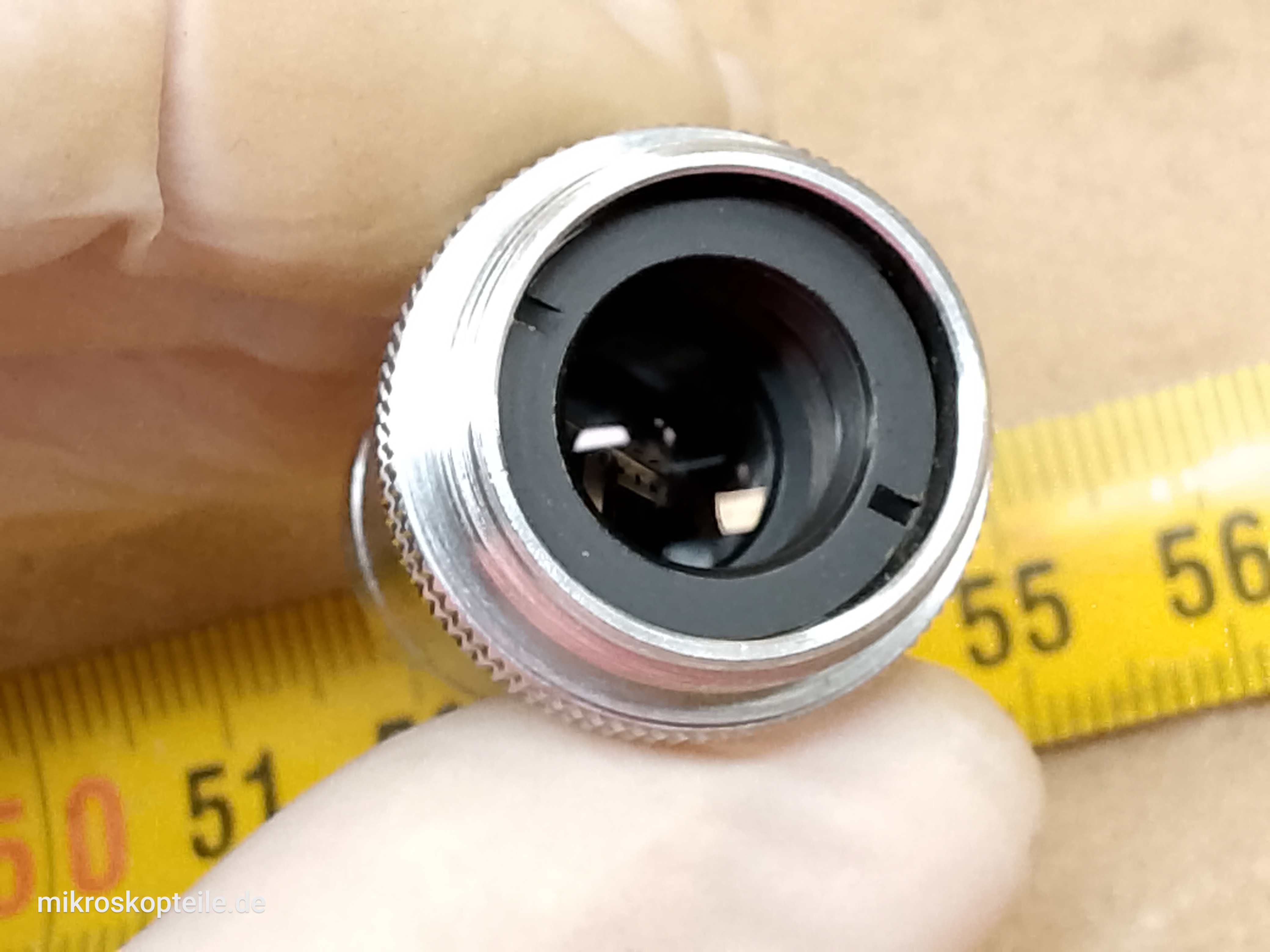

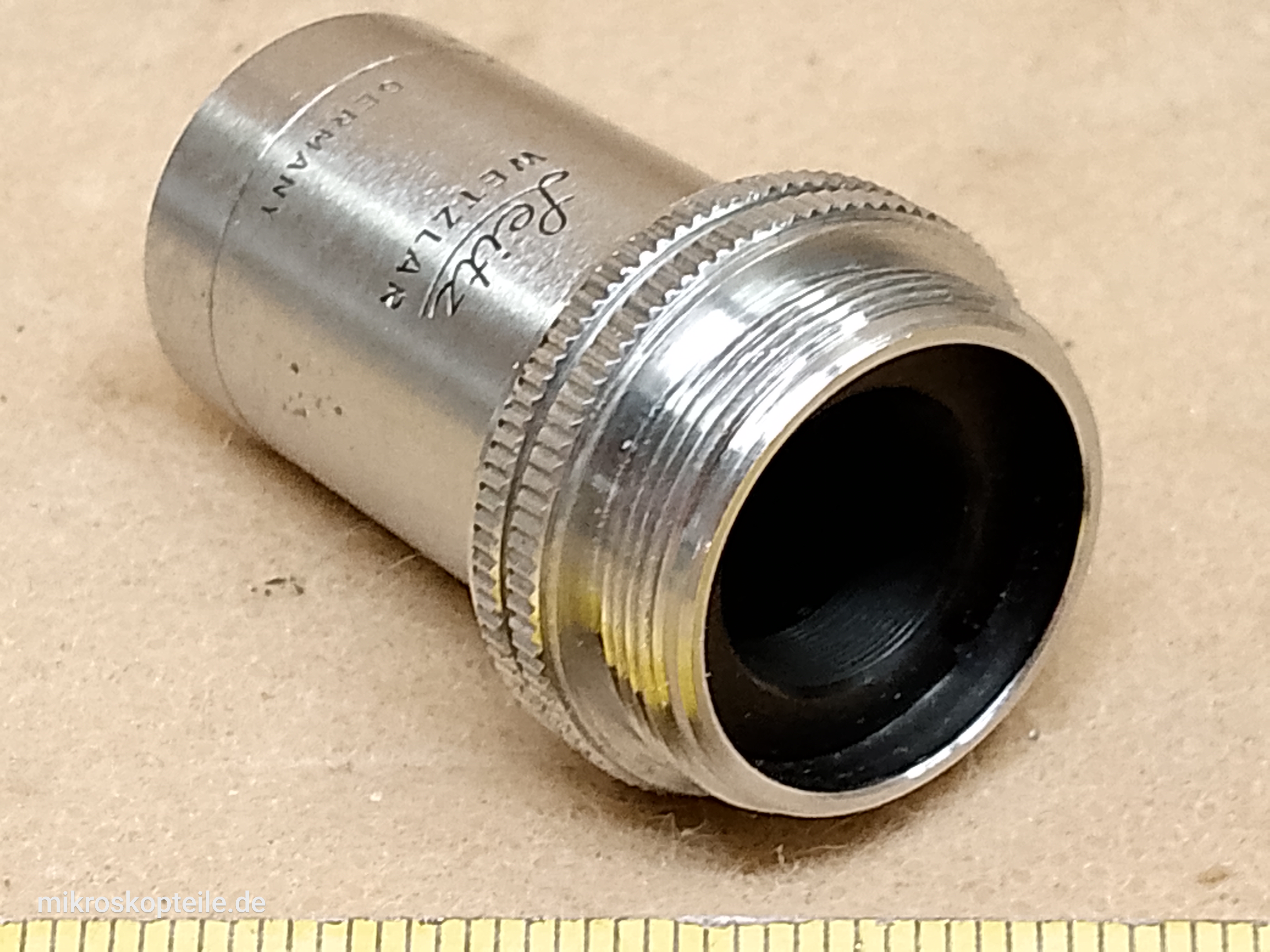

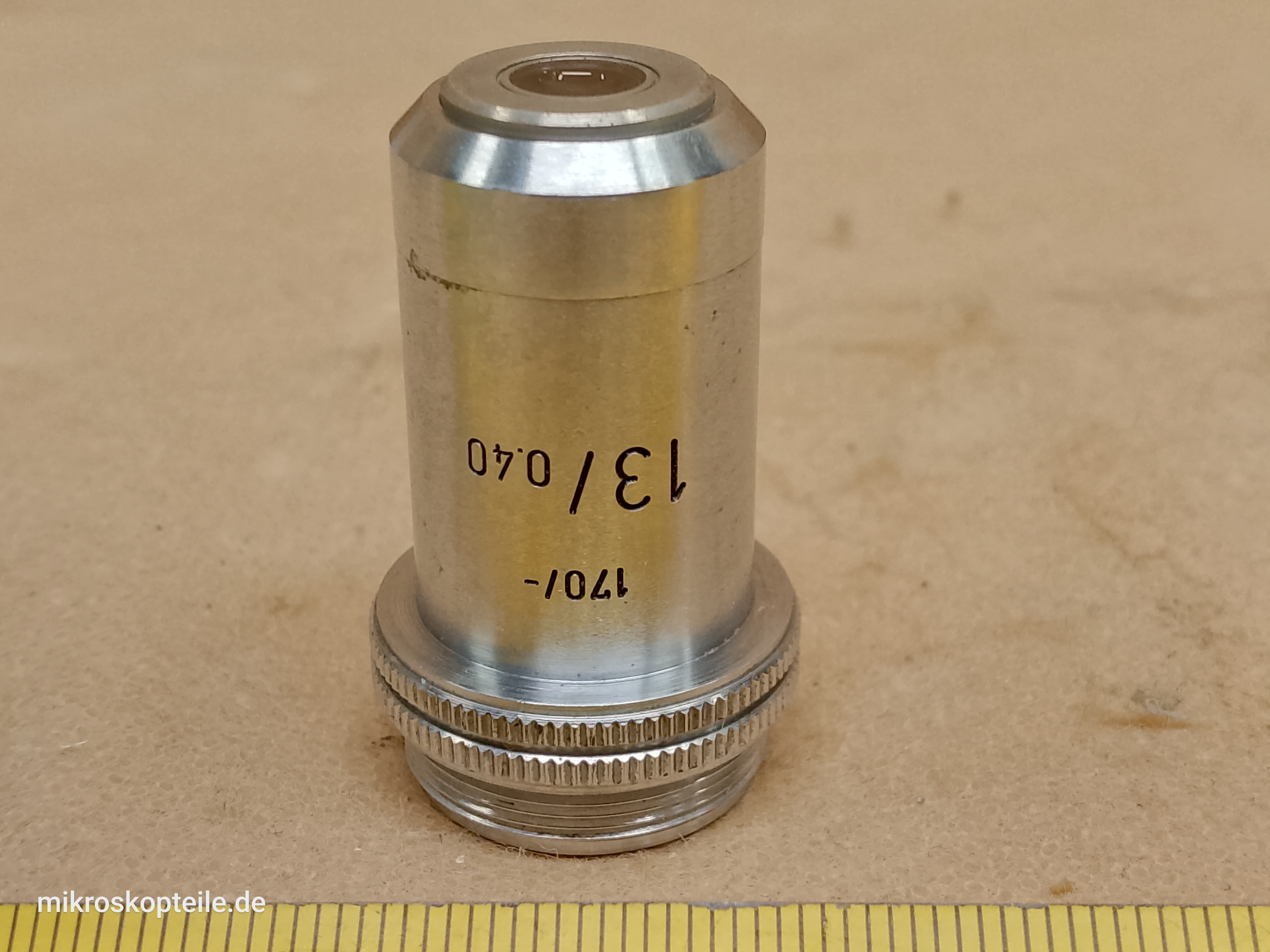

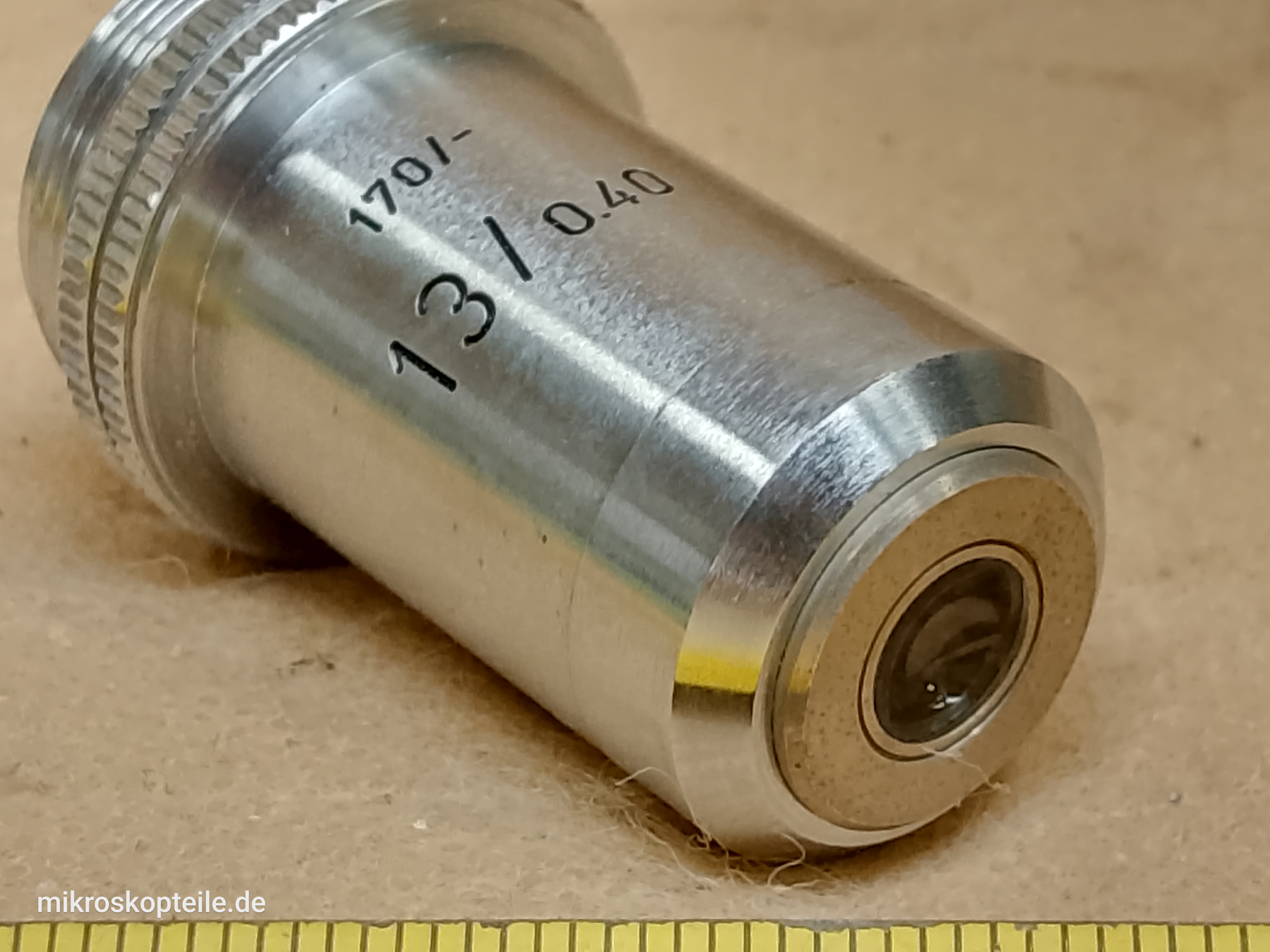

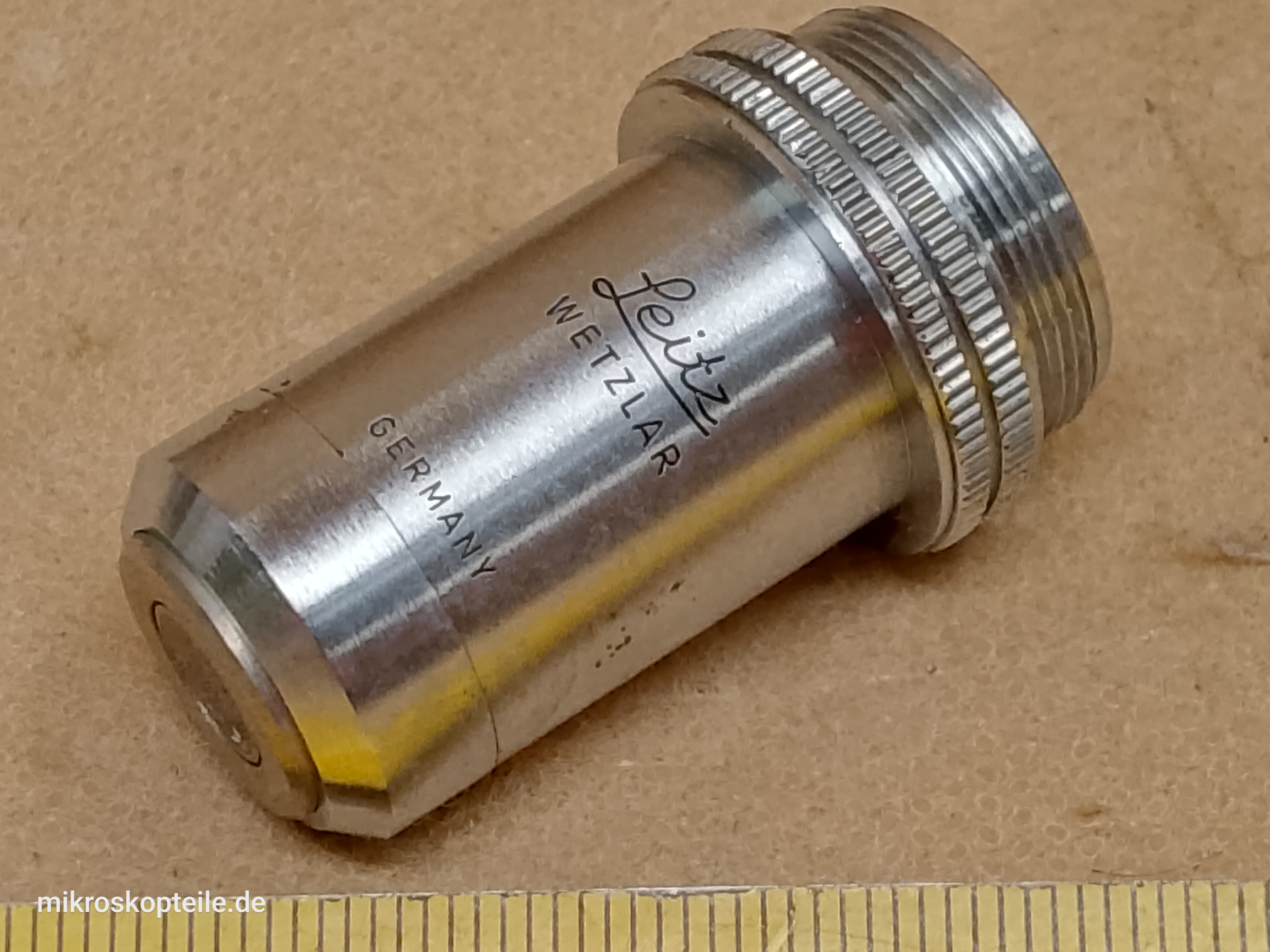

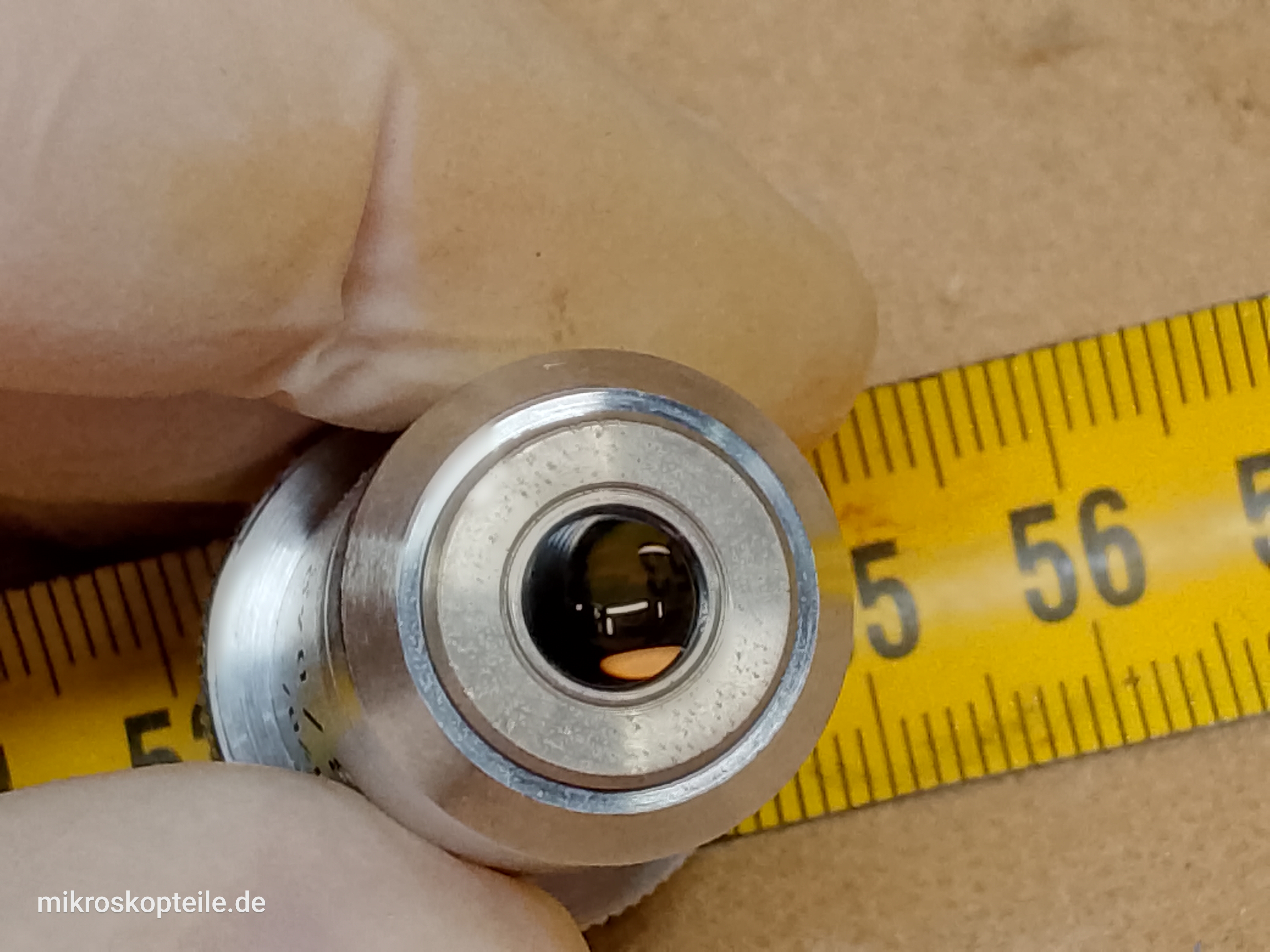

Leitz Wetzlar 13/0.40 170/- RMS 13x microscope objective PN 519237 - photo gallery

This is description of this part:

Leitz Wetzlar microscope objective with a unique 13x magnification.

Manufacturer: Leitz Wetzlar
Magnification: 13x
Color correction: achromat
Number in the manufacturer's 1967 catalog: 519 237 (alternative notation: 519237)
Numerical aperture N.A.: 0.40
Tube length: 170 mm
Parfocal length: 37 mm
Working distance: 3.4 mm
Cover glass: either - the objective works both without and with a cover glass
Immersion: no (dry objective)
Thread: RMS

Because it works without a cover glass and has a high numerical aperture N.A., this objective can be attractive for macro photographers. It allows projection directly onto the camera sensor - without any intermediate optics.

This objective was removed from a Leitz SM microscope, but it fits most Leitz Wetzlar microscopes made before roughly 1980 (SM, SM-D, SM-Lux, Dialux, Ortholux, Orthoplan, etc.).

Some useful information about Leitz Wetzlar objectives with TL=170 mm and 37 mm parfocal length:
- most Leitz microscopes made before roughly 1980 accept objectives for both 160 mm and 170 mm tube length
- many Leitz microscopes accept objectives with both 37 mm and 45 mm parfocal length
- with an 8 mm RMS extension adapter, such an objective gets a parfocal length of 45 mm. Leitz made such adapters under the name "Plezy" - but many users make their own, from metal or on 3D printers

Like a large share of microscope objectives made in Germany in the 1960s and 1970s, this objective has a 37 mm parfocal length and a 170 mm tube length. For this reason it is often used as a replacement objective for other German microscopes, e.g.:
- Steindorff Berlin
- Kremp Wetzlar
- Hertel & Reuss
- Steinmar Berlin
- CBS Beck Kassel
- ROW Rathenow

This objective fits practically any microscope from any manufacturer, as long as it has an RMS thread and accepts objectives with TL=170 mm and a parfocal length of 33 / 37 mm (or 45 mm with a suitable adapter). Some examples of such microscopes are listed in the "compatibility" section, but this list is not complete.

What is this part needed for?

• if you own a Leitz Wetzlar microscope and this is exactly the objective missing from your set
• if you already have such an objective in your microscope, but it is in very poor condition or damaged
• if you want to keep such an objective as a spare
• if you want to use this objective on another, compatible microscope
• if you want to use this objective for macro photography at a 13:1 reproduction ratio

What category does this part belong to?

Objective [ link ] [More Objective]

Who manufactures this part?

• Leitz - Leitz Wetzlar [ link ] [More Leitz]
• Leitz Wetzlar, West Germany
• E. Leitz Wetzlar GmbH
• Ernst Leitz Wetzlar

What microscope does this part come from?

Mikroskop Leitz SM [ link ] [More from SM]

What microscopes or components is this part compatible with?

• Leitz Dialux
• Leitz SM
• Leitz Ortholux II
• Leitz Orthoplan
• Leitz SM-D
• Hertel & Reuss Studio C
• Hertel & Reuss CN-fl
• Steinmar Berlin Binocular biological
• Steindorff Berlin Model S
• Steindorff Berlin Model M.Y.
• Steindorff Berlin Model C.Y.N.
• Leitz Wetzlar microscope
• Steindorff Berlin Model B.Y.
• Steindorff Berlin Microbe Hunter
• Kosmos Binocular
• Kosmos Humboldt
• Kosmos Modell C
• Hertel & Reuss Metall
• Hertel & Reuss Studio II
• Hertel & Reuss CN-hf
• Will Wetzlar V200
• Will Wetzlar V100
• Leitz SM-LUX
• CBS CBS monocular biological microscope
• Eschenbach Kolleg SH45
• ROW UFD 121
• ROW UFD 122
• CBS Binocular Model 01
• CBS AS 2
• CBS Binocular Model 02
• CBS Trinokular Model 01
