Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head - photo gallery
The gallery contains photos from various perspectives as well as close-ups of this microscope part. Clicking the "Open photo" button will display additional information.
SERMIK_ID: 99898

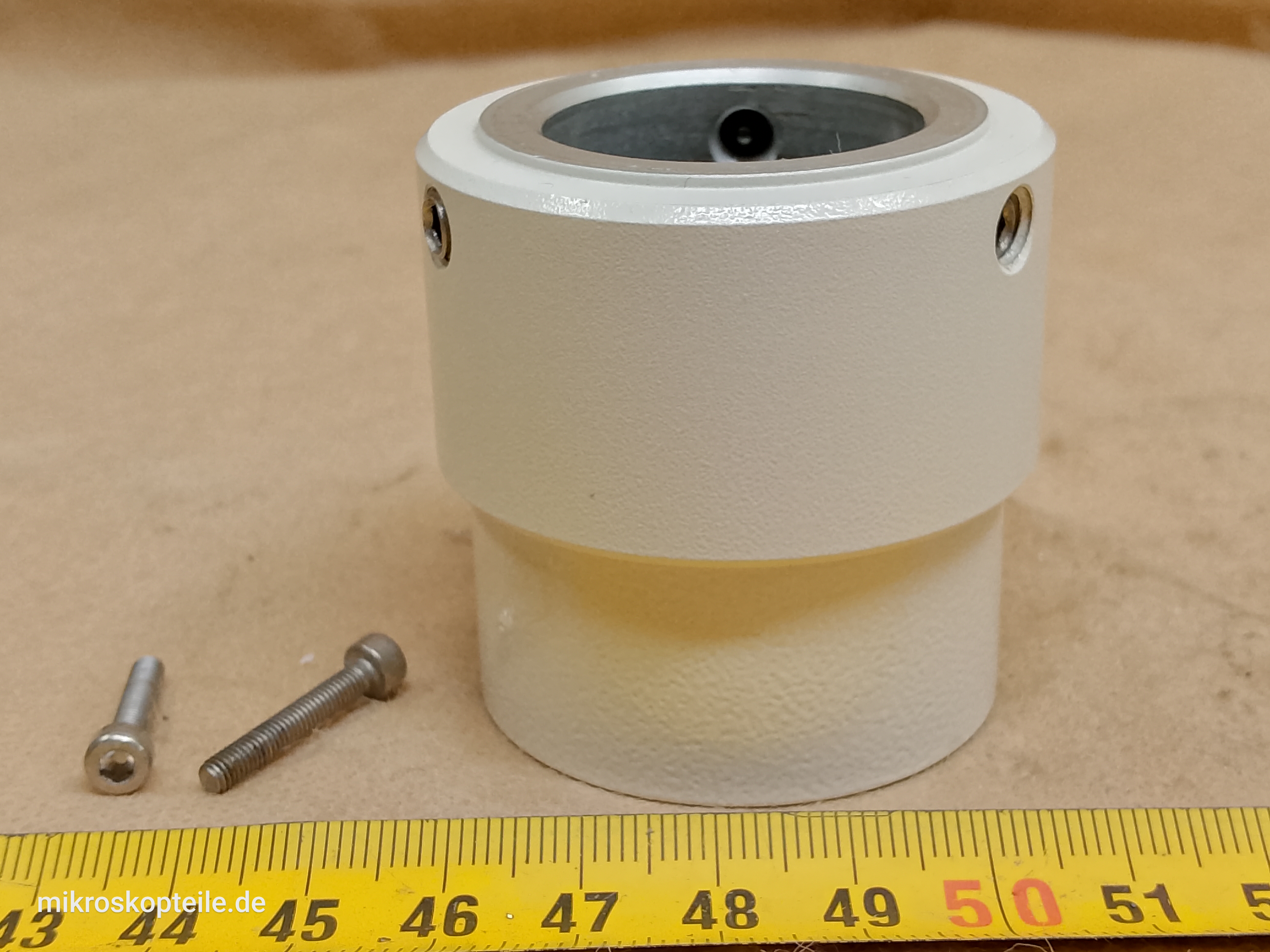

Photo #1 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
Photo #2 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
Photo #3 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
Photo #4 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head

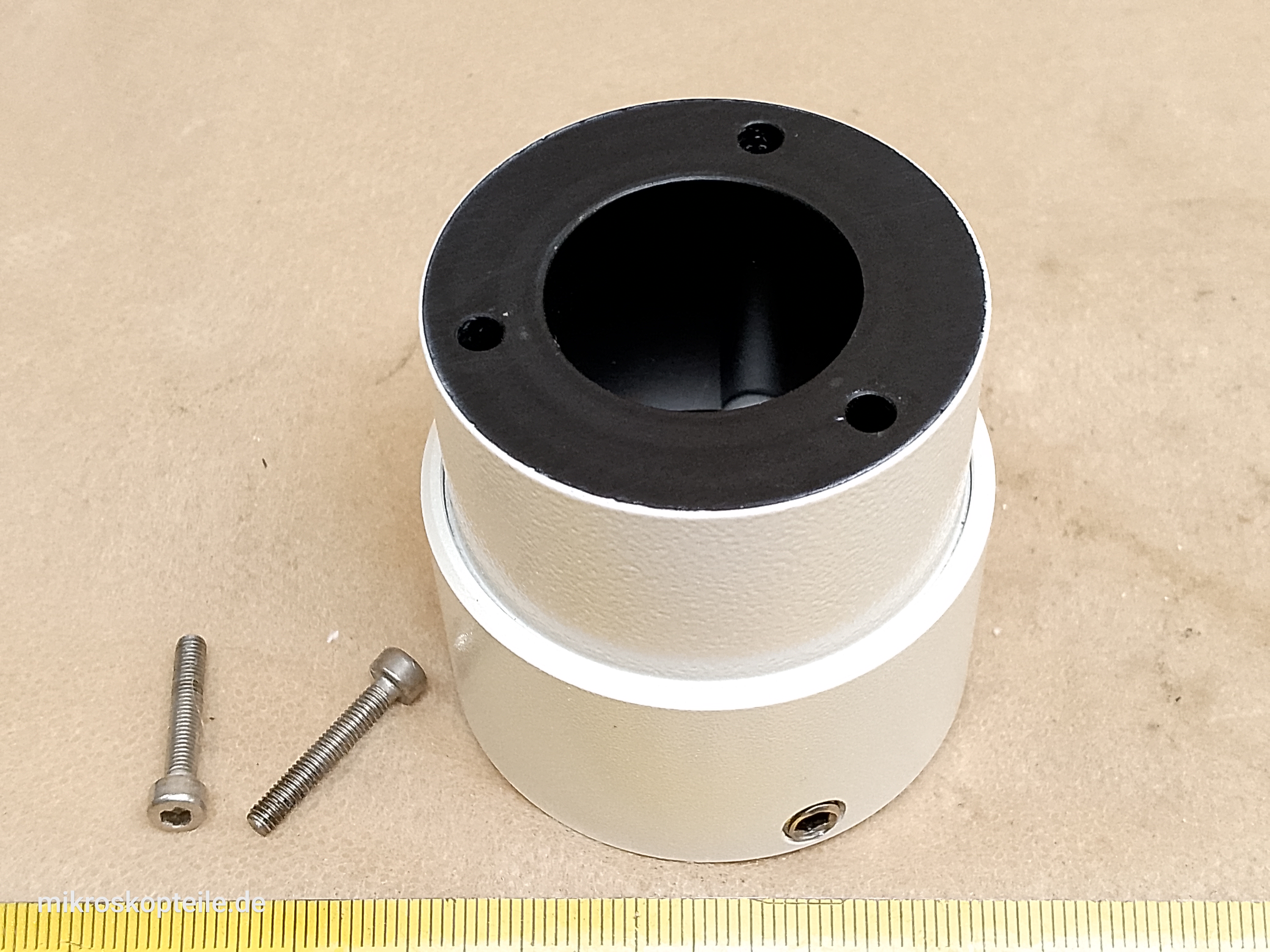

Photo #5 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
Photo #6 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
Photo #7 - Zeiss Axioplan 2 microscope 30mm photo eyepiece tube for 452143 trinocular head
This is description of this part:
Tube for mounting the photo projection eyepiece in the Carl Zeiss 45 21 43 trinocular head and similar ones.
This particular photo eyepiece holder was removed from a Zeiss 452143 microscope head - but most probably it also fits other heads of the Zeiss AIM systems and of Zeiss Axioplan 2 microscopes, for example:
- Zeiss 452142
- Zeiss 452143
- Zeiss 452145
- Zeiss 452146
These photo-trino heads which I listed above are used, directly or through suitable adapters, among others in the following microscopes:
- Zeiss Axioplan 2
- Zeiss Axioskop 2
- Zeiss Axiophot 2
- Zeiss AIM
- Zeiss Axiotech
- and probably others
Basic parameters of this tube:
Mounting to the trinocular head: with 3 screws
Overall length: 50 mm
Length protruding above the housing of the head: approx. 25 mm

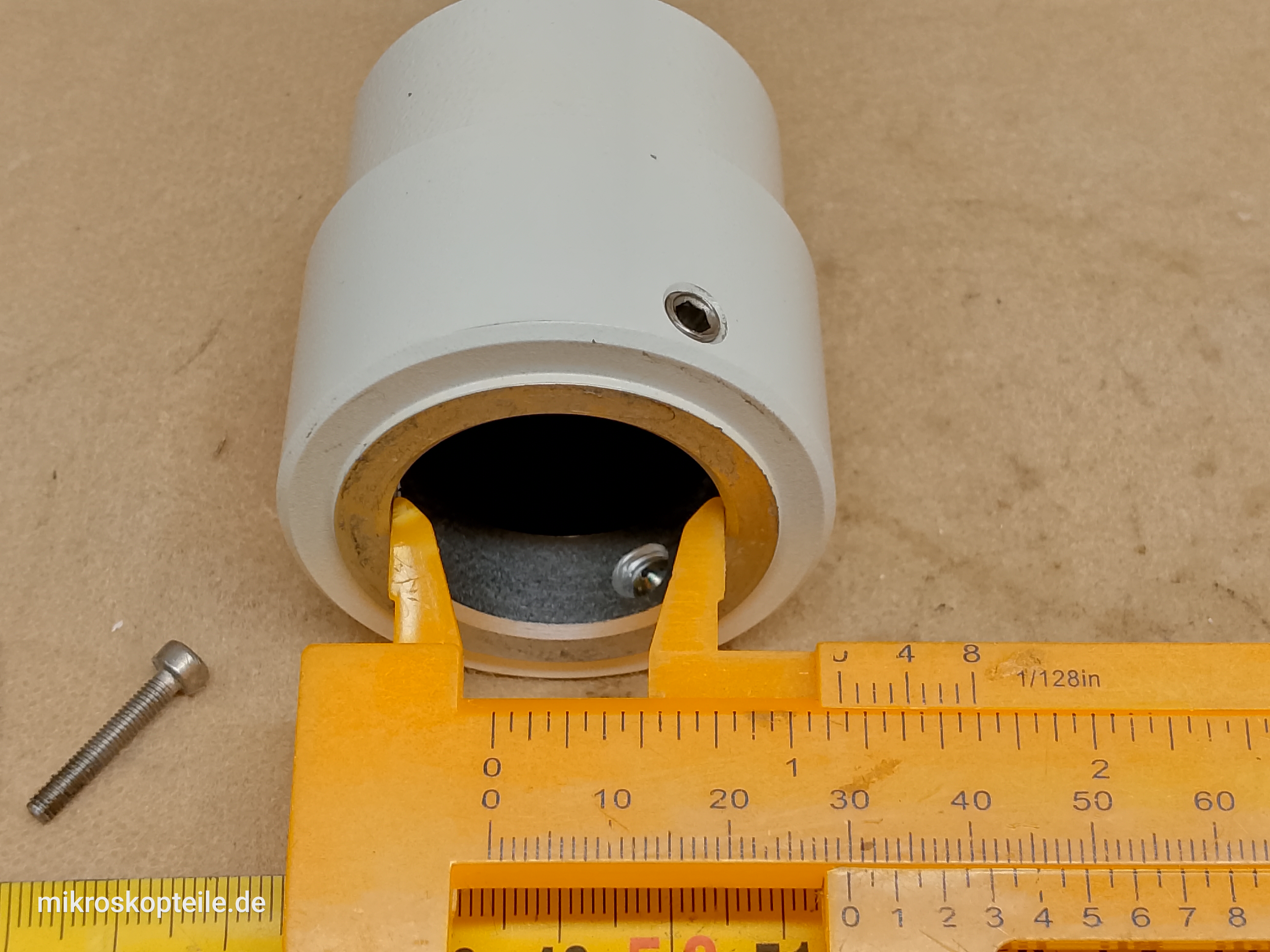

Inner diameter: 30 mm - for use with photo / projection eyepieces of this diameter
Camera installation possible: yes, a so-called USB eyepiece can be mounted in this tube
Centering: yes, the mounted camera or eyepiece can be centered with three centering screws
VERY IMPORTANT: this short tube (it can also be called a holder of the photo projection eyepiece) is screwed to the head with 3 (three) screws. In the photo only 2 (two) are visible - and this is exactly the item I am offering here, because I lost one of the screws. It is a minor thing - but it has to be mentioned.

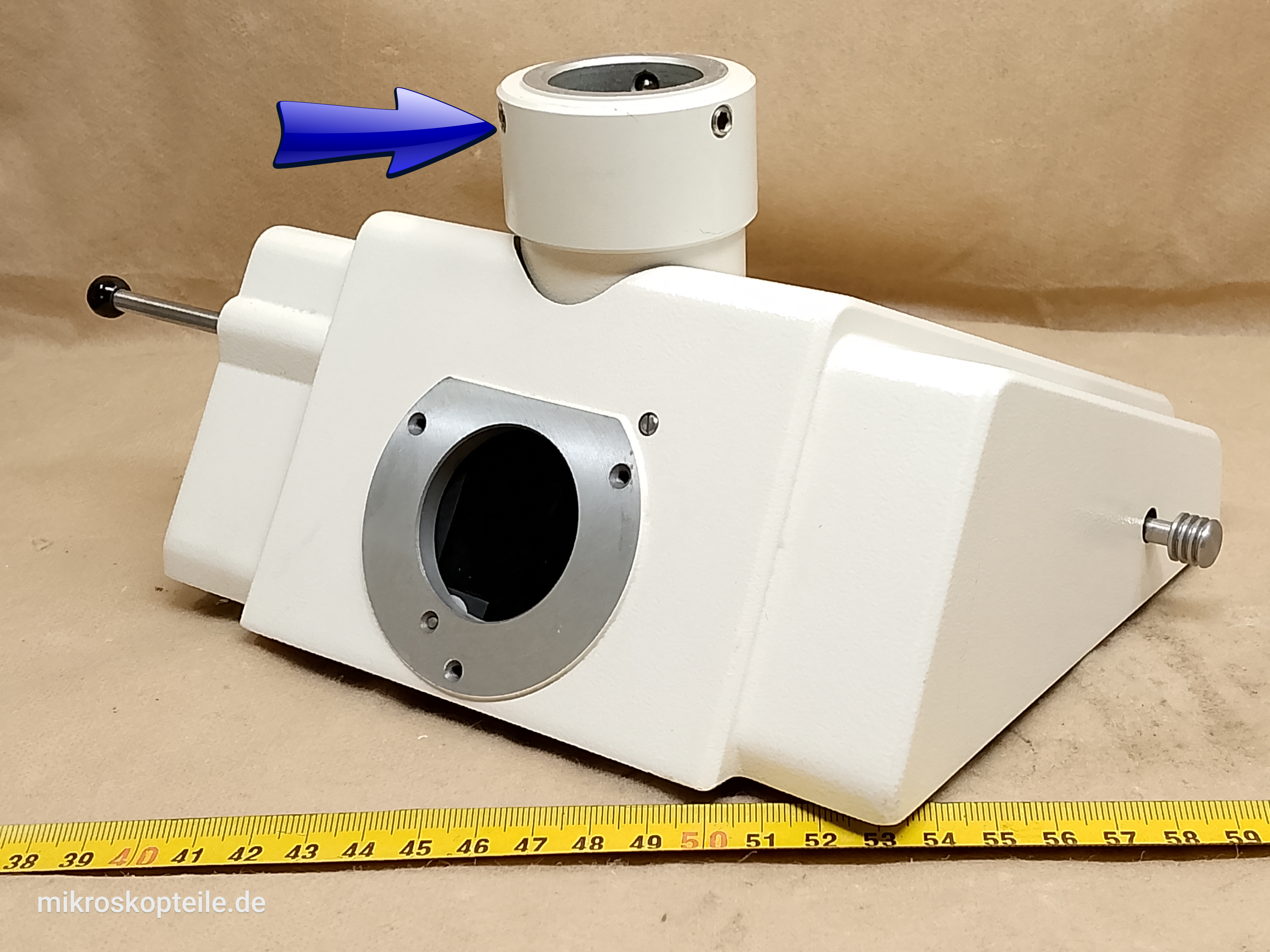

In the last photo an arrow shows where this part is located in the head, so that it can be identified without any doubt.
