More about part: Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser (ID: 99069)


Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser
X.com Facebook Youtube Markdown Media-Markdown

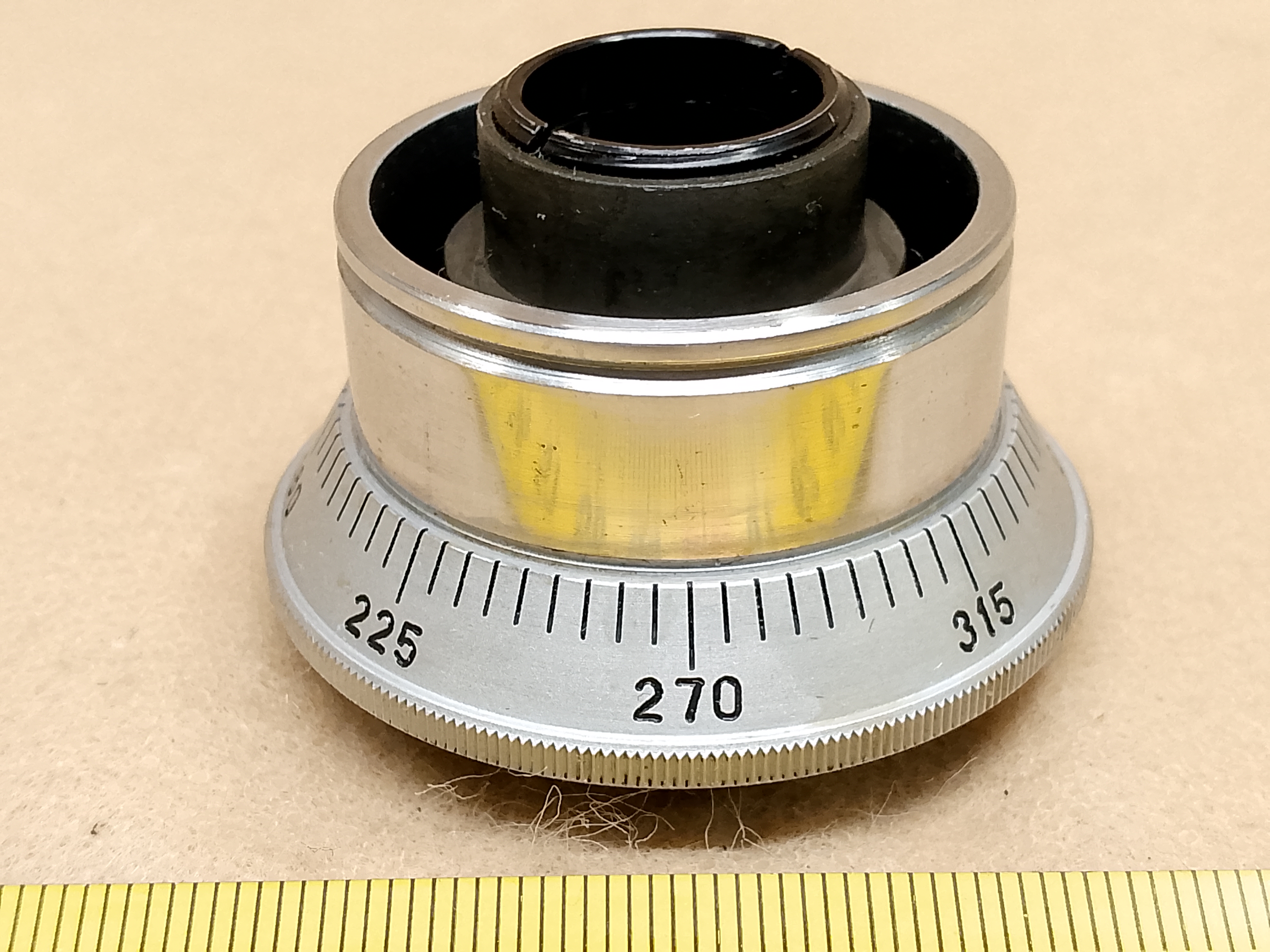

Main Photo

Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser
Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser
Photo gallery Video

Description

Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser

Rotatable insert (slider) with infrared filter and iris diaphragm for the microscope condenser of Lomo microscopes of the MIK series (e.g. MIK-1 or MIK-4).

Model: Lomo INF
Mount diameter: 35 mm

This insert fits condensers used in the following Lomo microscopes:
- MIK-1
- MIK-4
- Polam (all models)
- MIN-8


and most likely also in other microscopes that use similarly designed condensers. Note - to make sure that this insert fits your condenser, be sure to check the diameter of this element.

The transmitted light condenser in these microscopes features:
- interchangeable upper lenses to obtain the required aperture
- a diaphragm located below the upper lens
- a slot for inserting a IR filter insert (the insert may, but does not have to, include an additional iris diaphragm)


In some cases, this insert alone can be used without the condenser - the effect is similar to a condenser with a IR filter of low N.A.
This element is often used by owners of microscopes from other manufacturers to convert their condenser into a infrared condenser.

Since this element can be removed relatively easily, it is very often missing in microscopes from the secondary market.

IMPORTANT - this is not a separate microscope condenser. It is a component of the condenser, even though it is sometimes used as a substitute for a condenser.

Manufacturer

Lomo - (Leningrad Optical Mechanical Association) ➔ All parts

It comes from

Lomo MIK-4 ➔ All parts

Why do you need this?

  • this element is missing
  • you have this element, but the IR filter is damaged or of very poor quality
  • you have this element, but the iris diaphragm is damaged
  • you want to use this part as a low N.A. condenser
  • you want to use this part for your own DIY projects

Compatibility

This microscope part is compatible with the following microscope models:

Names, descriptions, terms, and search contexts under which this part is searched.

Frequently Asked Questions (FAQ)

Below you will find answers to the most frequently asked questions (FAQ).

What can be found on this page?

This page contains a detailed description of the microscope component Lomo - MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser

Is the microscope component offered here an original part?

YES - this is an original component. It is not a 3D-printed part nor a third-party replacement.

Who is the manufacturer of this component?

The manufacturer of this component is Lomo (Leningrad Optical Mechanical Association)

Is this microscope component new?

NO - this item was removed from Lomo MIK-4 microscope, has been inspected, cleaned, and is fully functional and ready for further use.

Which microscopes is this component compatible with?

This component is compatible with, among others, the following microscopes:
  • Lomo MIK-4
  • Lomo MIK-1

Can I purchase this microscope component and how does the process work?

If you are interested in this component, contact the owner by clicking the "Show contact info" button on the page. No need to worry - clicking it does not create any transaction; it only displays the owner's contact details.

Who is this component intended for and for what purpose can it be used?

This component is most commonly used for the following purposes:
  • this element is missing
  • you have this element, but the IR filter is damaged or of very poor quality
  • you have this element, but the iris diaphragm is damaged
  • you want to use this part as a low N.A. condenser
  • you want to use this part for your own DIY projects

Are other microscope components from this manufacturer available?

YES. By clicking here you can view a list of all microscope components from this manufacturer available in the database.

Where can I view a photo gallery of this component from different angles?

A gallery with all photos of this component can be found on page , showing the component from multiple angles.

Where can I watch a video presenting this component and its functionality?

On the page you can watch a video presenting the functionality of this microscope component.
Contact details
If you need Lomo MIK-4 Infrared Microscope - rotatable insert (Lomo INF slider) with IR filter and iris diaphragm for the microscope condenser (ID 99069) , just write at info@microscopeparts.eu
