Description of this part for the microscope.

Modell: STELA

The unit offered here was used with a Carl Zeiss Stereomikroscope II microscope (as seen in the last photo).

It originally used an incandescent bulb, but over the years, someone replaced it with an LED and connected a transformer. It has a bracket that allows for mounting to virtually any microscope.

Description of this part for the microscope.

fluorescence illumination.

Manufacturer: LOMO
Model: WI 40 0.75 L
Magnification: 40x
Numerical aperture: 0.75
Optical correction: achromat, optimized for fluorescence microscopy
Tube length: 160 mm
Focal length: approx. 33 mm
Immersion: water
Designation: L = luminescence
Thread: RMS
Year of manufacture: 1974

Despite the L designation, the objective can of course also be used with standard transmitted light illumination.

LOMO objectives marked with L luminescence differ from non-marked versions by:
- improved transmission in the UV and blue spectral range
- reduced autofluorescence of optical glass
- no or strongly reduced use of organic adhesives in the optical assembly

Description of this part for the microscope.

correction for fluorescence illumination.

Manufacturer: Lomo
Model: WI 30x0.90 L
Manufacturer code: O5V-30L
Magnification: 30x
Numerical aperture: variable from 0.65 to 0.90
Iris diaphragm: yes, built-in
Optical correction: achromat + fluorescence
Tube length: 160 mm
Focal length: 33 mm
Immersion: yes, water
Cover glass: yes, 0.17 mm
Marking: "L" = luminescence
Thread: RMS
Year of manuractue: 1974

This is a rare, professional microscope objective with a very wide range of applications. Main features that make this objective exceptional:
- Water immersion is preferred by many users over oil immersion
- Very high numerical aperture (up to 0.90) provides high-resolution images
- Built-in iris diaphragm allows adjustment of the aperture

Despite the "L" marking, the objective can of course also be used with standard illumination.

LOMO objectives with the "L" luminescence marking differ from those without this symbol by:
- Improved transmission in the UV and blue spectral range
- Lower glass autofluorescence
- No or strongly reduced use of organic adhesives

Description of this part for the microscope.

correction for fluorescence illumination.

Manufacturer: Lomo
Model: APO-WI 60x1.0 D=0 L
Magnification: 60x
Numerical aperture: 1.0
Correction: Apochromat + fluorescence
Tube length: 160 mm (?)
Focal length: 33 mm (?)
Immersion: water
Cover slip: no (!)
Marking: "L" = luminescence
Marking: "D=0" = use without cover slip
Thread: RMS
Year of manufacture: 1975

Apochromatic objectives are known for exceptional color fidelity, significantly better than achromatic objectives.

This objective is extremely rare on the secondary market and highly professional. Key features:
- Water immersion is preferred by many users over oil immersion
- Very high numerical aperture (1.0) provides high-resolution images
- Use without cover slip allows, for example, direct placement of the objective inside a droplet with the sample to be observed

Despite the "L" marking, the objective can also be used with normal transmitted light illumination.

Lomo objectives marked "L" (luminescence) differ from those without this symbol by:
- Improved UV and blue light transmission
- Lower autofluorescence of the glass
- No or reduced use of organic adhesives in the optical assembly

Description of this part for the microscope.

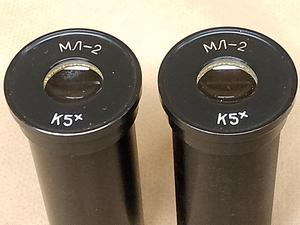

23.2 mm

Compensating 5x eyepieces are very often used as projection eyepieces for microscope photography.

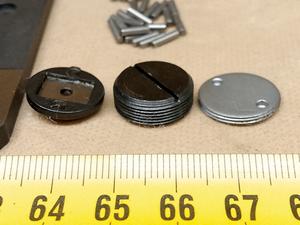

Description of this part for the microscope.

MBB-1 / MBB-1A
- polarizing microscope LOMO MIN-8

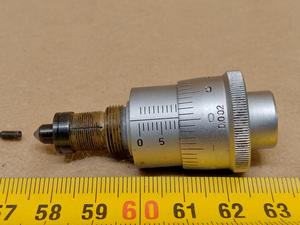

Description of this part for the microscope.

microscopes:
- biological microscope LOMO MBB-1 / MBB-1A
- polarizing microscope LOMO MIN-8

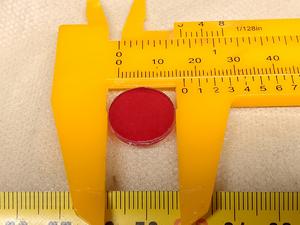

Description of this part for the microscope.

mm
Thickness: 2 mm

This filter is originally glued into the filter wheel located in the microscope above the objective turret.

Description of this part for the microscope.

second-hand market.

Manufacturer: Lomo
Magnification: 95x
Model: MI 95x 1,25 190-P
Numerical Aperture: 1,25
Tube length: 190 mm
Focal length: (?)
Cover slip: yes, 0,17 mm (?)
Thread: RMS + Pol adapter
Marking: "P" = Polarization
Marking: "MI" = Oil immersion

This objective is for use with transmitted or reflected light with a cover slip (although I am not sure if it definitely requires a cover slip).

This specific item was used with the Lomo Polam P-312 microscope, i.e., with an EPI reflected light illuminator.

The RMS-thread objective is mounted on a suitable sleeve that allows using the objective in Lomo MIN-6 / Lomo MIN-8 / Lomo MIN-1 / Lomo Polam microscopes. Of course, the objective can be unscrewed and another objective can be screwed into the sleeve.

The Pol adapter also allows centering the objective relative to the entire optical path - this requires tools (wrenches / tools).

Info: I have repeatedly seen information stating that this RMS-Pol adapter is compatible with Leitz Wetzlar polarization microscopes - but I have not personally checked this.

Description of this part for the microscope.

It is not easy to find a used objective in this condition.

Manufacturer: Lomo
Magnification: 40x
Model: D=0 40 0.65
Numerical aperture: 0.65
Tube length: 160 mm
Focal length: 33 mm
Cover slip: no
Thread: RMS + adapter to M27 thread
Marking: "D=0" = work without cover slip

This is an objective for working with reflected light (but also transmitted light) without a cover slip.

Objective with RMS thread, but can be screwed into an adapter for M27 thread, allowing use in a microscope, e.g., Biolam-M. Of course, the objective can be unscrewed and another objective can be screwed into the adapter.

Info: M27 thread is also a standard used by Zeiss Axio microscopes. Therefore:
- this objective can be used in Axio microscopes with M27 thread
- this adapter can be used in Axio microscopes with another objective

This adapter is not a 3D-printed plastic part - it is a professional, metal, original product by Lomo.

Description of this part for the microscope.

supply module of the XD-301 halogen illuminator.

Description printed on the board:
- "Cold Light Source"
- YN-150-24A
- DY05-01-1108-078

Description of this part for the microscope.

Description of this part for the microscope.

in which all components are made of metal. In later years, Leitz produced microscopes of the SM series with plastic elements in the head holding mechanism.

It is a complex mechanism with a spring, locking pawls and moving parts. A very interesting design.

Most likely compatible with many variants of the "SM" model. Attention - the SM-Pol model has a different head holder.

Description of this part for the microscope.

This is only the HOUSING. Inside the housing there are:
- an on off switch
- a potentiometer for adjusting the light intensity
- a cooling fan including its electrical wiring

Once again: this is not a complete illuminator. There are no optical components and no electronic boards inside, except for the circuitry that operates the fan.

Description of this part for the microscope.

the arm is hollow inside. This hollow space is covered by a black sheet metal cover - and this is exactly this part.

This part fits the following PZO Biolar microscope versions:
- B
- B2
- Pol
- DIC
- EPI
- Fluoreszenz

Note - most likely it does not fit the GF version.

It is an original "from the era" part, coming from a disassembled PZO Biolar microscope.

Description of this part for the microscope.

This is a component of the transmitted light optical path - it is not a diaphragm for EPI reflected light.

This part fits various Carl Zeiss Jena microscope models built on the Amplival stand:
- Amplival
- Amplival Interphako
- Amplival Pol
- Vertival
- Peraval
- Fluoval
- Docuval

Description of this part for the microscope.

condenser
- three phase contrast objectives
- condenser holder with gear rack

Three phase contrast objectives:
- Hertel & Reuss 10:1 N.A. 0.30 Ph.
- Hertel & Reuss 40:1 N.A. 0.65 Ph.
- Hertel & Reuss 100:1 Oel N.A. 1.30 Ph.
- Thread: RMS
- Tube length: 170 mm
- Focal length: 37 mm

This particular set was used in a Hertel & Reuss Studio II microscope. For this reason, the condenser holder is included in the set, but of course the condenser can be removed from the holder and used with other microscope models.

Description of this part for the microscope.

B=bino, FO = foto)
Eyepiece diameter: 23.2 mm
Mounting diameter: 50 mm
Photo thread: 24 mm (M24)

A trinocular head is a binocular microscope head with an additional third optical port for connecting a camera or photographic device.

This particular unit comes from a Hertel & Reuss Studio II microscope, but it also works with any other microscope model from this manufacturer that has an interchangeable head with a mounting diameter of 50 mm.
NOTE - as far as I remember, not all H&R microscopes have an easily interchangeable head; this applies, for example, to the Primus model.

NOTE - some microscope models from Steindorff Berlin also have a head mounting diameter of 50 mm and are fully compatible with H&R heads - an example of such a microscope with a Hertel & Reuss head can be seen on Facebook at the following address: https://www.facebook.com/groups/136833493390496/posts/1722336908173472/

Other names:
- photographic head
- photo head
- trinocular head
- trino

Description of this part for the microscope.

are available in several variants:
- round polarizing microscope stage
- mechanical microscope stage with a central plate, used for reflected light EPI

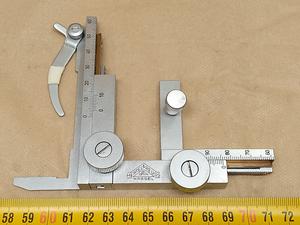

- simple microscope stage with specimen clips
- simple microscope stage with a screw-mounted XY cross-slide mechanism
- mechanical microscope stage with an integrated cross-slide mechanism
[[/BLOK]

The stage offered here is exactly of this last type.

Mounting method: screw-mounted.

This particular microscope stage was used in a Hertel & Reuss Studio II microscope.
However, it is sufficient to measure the spacing of the mounting screws that attach the stage to the stand and, if they match, to use it with other microscope models as well.

Hertel & Reuss also manufactured microscopes that were sold under other brand names, therefore it is likely that this stage will also fit some microscope models sold under the following names:
- Kosmos
- Humboldt
- Beck

Description of this part for the microscope.

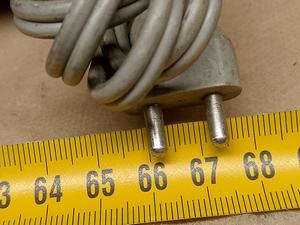

a CZJ Ergaval / Amplival microscope with a classic illuminator (6V 15W filament bulb) and simply replacing the bulb holder with the one offered here will create a halogen-illuminated microscope. No.
- the original holder of the "regular" bulb contains a lens that collimates the light beam
- the halogen bulb holder does not contain that lens
- Ergaval / Amplival microscopes designed for halogen illumination have an additional lens threaded into the base

Halogen illumination is (according to many experts) the best microscope illumination because it delivers strong light with a full spectrum, whereas LED often provides only a portion of the color spectrum.

Other used names:
- illuminator
- halogen lamp
- bulb holder
- lamp housing

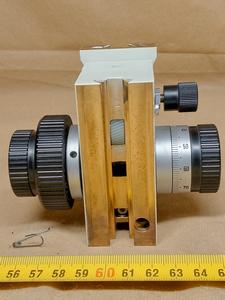

Description of this part for the microscope.

adjustment) with knob

Description of this part for the microscope.

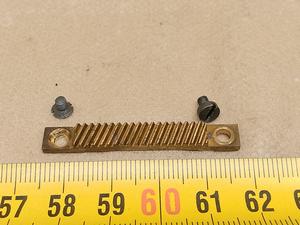

and focusing is achieved by raising or lowering the microscope stage. This is the opposite of how it works, for example, in the Lomo Biolam model, where the arm moves up and down.

Along this rack gear offered here, the entire assembly of the microscope stage holder and the condenser is moved. This assembly is driven by a gear wheel mounted on a shaft located between the coarse focus knobs.

This is an original brass rack gear, not a plastic 3D print. The set includes two mounting screws (the upper and lower ones differ from each other).

Description of this part for the microscope.

maintenance (especially cleaning) of this element is required. Since PZO Biolar microscopes are 40-50 years old, it is now possible to find units without this cover, as it was lost over the years.

This metal cover also acts as a heat sink and dissipates heat from the bulb - this can sometimes be seen as discoloration on the inner surface of the metal. For this reason, replacing it with an element made of cardboard or plastic is a very bad practice.

Without this cover, contaminants can enter the optical light beam, the angled mirror, or the field diaphragm, which may, for example, cause diaphragm failure or deterioration of image quality.

This element fits the following versions of the PZO Biolar microscope:
- B
- B2
- Pol
- DIC
- EPI
- Fluoreszenz

Note - most likely it does not fit the GF version.

This is an original element, taken from the disassembly of a PZO Biolar microscope.

Description of this part for the microscope.

Description of this part for the microscope.

10
Magnification: 5x
Numerical Aperture: 0.10
Thread: RMS
Tubus length: 170 mm
Focal length: 37 mm

Among Hertel & Reuss low-magnification objectives, those with 4:1 magnification are most commonly found on the market. This 5:1 magnification model, especially in the newer housing version offered here, is rare.

This objective can be used with practically any microscope that
- has an RMS objective thread
- TL = 170 mm
- FL = 37 mm

Description of this part for the microscope.

For example, you can have a single Vickers Patholux microscope and separate revolvers already fitted with such objective sets:
- low-magnification objectives for observing macro objects with EPI illumination, without a cover slip (e.g., 2.5x / 3.2x / 5x / 8x)
- objectives for phase contrast; for different phase contrasts: positive, anoptral, variable, amplitude, Zernike
- DIC objectives
- water immersion objectives (e.g., by Lomo)
- all oil immersion objectives (e.g., Leitz 10x Oil, 25x Oil, 40x Oil, and 100x Oil)
- apochromatic objectives for better colors
- polarization objectives
- high-magnification objectives, e.g., for analyzing cell wall ornamentation (50x / 63x / 80x / 100x)
- dark-field objectives (objectives with an iris diaphragm inside)

This way, having only one microscope, you can use it for various purposes without manually screwing and unscrewing all objectives piece by piece every time.

Description of this part for the microscope.

Description of this part for the microscope.

wide-field lens
- mounting slot fitting the Vickers Patholux microscope

Unscrewing the upper lens reduces the numerical aperture of the condenser and allows optimal image quality when working with low-magnification objectives.

The lower wide-field lens can be inserted or removed from the optical path. Its presence in the optical path ensures illumination of the entire field of view when using very low-magnification objectives and prevents vignetting.

Description of this part for the microscope.

B (no additional magnification)
- 1.3x
- 2x
- 3x

This is an optional component - an accessory for the Patholux microscope. The magnification changer is mounted between the body and the microscope head.

Description of this part for the microscope.

integrated gear wheel for adjusting the condenser height. This is the element on which the rack moves.
The condenser holder is mounted directly on this element.

The rack is not included.

Description of this part for the microscope.

Monocular microscope head for a fluorescence microscope
Model: PZO MNJ-4
Mounting method: dovetail, diameter 43 mm
Supported eyepieces: 23.2 mm
Mounted filter: OG1 / GG9
For microscopes: PZO Biolar FL and PZO MB-30 FL

Why are monocular microscope heads often used in fluorescence microscopy? Fluorescence microscopy (especially older designs) produces a relatively dark image, so it is beneficial for 100% of the light beam to reach a single eye. A binocular microscope head would split the light 50% to each eye, which could result in an image that is too dark.

The barrier fluorescence filter PZO OG1 / GG9 mounted under the microscope head protects the eyes from the harmful spectrum of fluorescence illumination.

Note - there is also a PZO GG9 fluorescence filter (also available in my catalog). It is important to select the correct filters for the appropriate applications.

The OG1 / GG9 filter is a separate element that can be detached from the microscope head. It is mounted under the microscope head in a dedicated slot provided for this purpose.

Description of this part for the microscope.

simple microscope stages with clips for holding the specimen. Therefore, at magnifications above 400x, manually manipulating the slide with the specimen becomes very difficult. XY cross stages are used for this purpose, for example, to move the specimen very precisely at 500x, 600x od 1000x magnification with oil immersion.

This is not a cheap plastic cross stage - it is a well-made Hertel & Reuss design.

NOTE - if the mounting pin spacing matches, this cross stage can be mounted on stages from virtually any manufacturer.

Note - this is version "A" of the XY cross-stage mechanism - it differs from version "B" only in the shape of the screws, but in order to ensure that my photos always show the original item, each variant is listed separately in the database.

Note - Hertel & Reuss manufactured cross stages with fixed specimen clamps as well as a model with a spring-loaded clamp. Here I present and offer the version with fixed clamps.

Description of this part for the microscope.

simple microscope stages with clips for holding the specimen. Therefore, at magnifications above 400x, manually manipulating the slide with the specimen becomes very difficult. XY cross stages are used for this purpose, for example, to move the specimen very precisely at 500x, 600x od 1000x magnification with oil immersion.

This is not a cheap plastic cross stage - it is a well-made Hertel & Reuss design.

NOTE - if the mounting pin spacing matches, this cross stage can be mounted on stages from virtually any manufacturer.

Note - this is version "B" of the XY cross-stage mechanism - it differs from version "A" only in the shape of the screws, but in order to ensure that my photos always show the original item, each variant is listed separately in the database.

Note - Hertel & Reuss manufactured cross stages with fixed specimen clamps as well as a model with a spring-loaded clamp. Here I present and offer the version with fixed clamps.

Description of this part for the microscope.

1 biological microscope

Note - Lomo MBI-1, MBR-3 or Lomo Biolam microscopes use a DIFFERENT rack gear for the condenser movement mechanism.

This is not a 3D print - it is an original brass microscope element manufactured by Lomo and removed from a MIN-8 microscope.

Description of this part for the microscope.

After attaching a binocular head, the complete assembly forms a full trinocular head.

Basic features:
- dovetail connection for mounting a binocular microscope head
- upper dovetail connection for mounting a photographic adapter
- a tube adapter for 23.2 mm projection eyepieces is currently mounted on this connection
- operating modes: manually switchable light beam split 0 / 100 or 100 / 0

This microscope element is also referred to as:
- photographic adapter
- trino dome
- photo intermediate tube

It is POSSIBLE that this photo tube also fits other microscopes manufactured by Vickers. Detailed mounting interface dimensions will be added soon, which will allow verification of compatibility with other models.

As of today, this adapter is known to fit the following microscopes:
- Vickers Patholux
- Vickers Patholette

Note - please pay attention to paint damage and scratches. These occurred during transport and do not affect optical quality or the operation of this microscope element, but they do reduce its external condition. I did not hide or repaint them so that you have full insight into the actual condition of the item.

Description of this part for the microscope.

for storing, using, and quickly replacing entire sets of objectives.

For example, you can have separate turrets already equipped with the following sets of objectives:
- low magnification for observing macro objects with side illumination, without a cover glass (e.g., 2.5x / 3.2x / 5x / 8x / 10x)
- for phase contrast
- for various phase contrasts (positive, anoptral, amplitude, Zernike)
- for DIC
- for water immersion (e.g., Lomo)
- all for oil immersion (e.g., Leitz 10x Oil / 25x Oil / 40x Oil / 100x Oil)
- apochromatic for better color
- for polarization
- only high magnifications, e.g., for analyzing cell wall ornamentation (50x / 63x / 80x / 100x)
- for darkfield work (objectives with an iris diaphragm in the center)

Thanks to this , having only one microscope, we can use it for various purposes and not screw in and unscrew all the lenses manually each time.

Basic parameters:
Model: PZO RO5
Thread: RMS
Number of slots: 5
Mounting method: dovetail
Variant: matte

Description of this part for the microscope.

simple microscope stages with clips for holding the specimen. Therefore, at magnifications above 400x, manually manipulating the slide with the specimen becomes very difficult. XY cross stages are used for this purpose, for example, to move the specimen very precisely at 500x, 600x od 1000x magnification with oil immersion.

This is not a cheap plastic cross stage - it is a well-made Hertel & Reuss design.

NOTE - if the mounting pin spacing matches, this cross stage can be mounted on stages from virtually any manufacturer.

Note - Hertel & Reuss manufactured cross stages with fixed specimen clamps as well as a model with a spring-loaded clamp. Here I present and offer the version with spring.

Description of this part for the microscope.

documentation, this element is referred to in German as -Fototubus 100/100 und Tubusträger-.

This is a photographic tube on which a binocular microscope head is mounted - in this configuration it becomes a complete trinocular system. At the top there is an optical output where a camera or photographic device can be mounted.

Basic technical parameters:
- light beam splitting: 0/100 and 100/0
- head mounting method: dovetail 41.5 mm
- mounting method on the photographic port: dovetail 41.5 mm
- internal lens: additional Bertrand lens e.g. for phase contrast adjustment
- extras: slot for installing a filter wheel

Note - despite certain similarities, this microscope element DOES NOT FIT Carl Zeiss Jena Jenamed microscopes.

Description of this part for the microscope.

Zeiss.

Description of this part for the microscope.

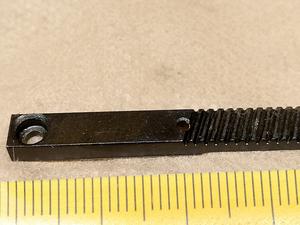

the gear rack on which this mechanism moves is NOT included in the kit.

Description of this part for the microscope.

Description of this part for the microscope.

Description of this part for the microscope.

an incandescent lamp illuminator. This lampholder is not required if you have a microscope with the original halogen illuminator - in that case, the collimator lens is a separate element mounted next to the field diaphragm.

Other used names:
- lamp holder
- lamp tube
- lamp support
- sometimes the German-language term "Lampenhaus" is used

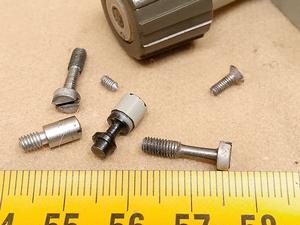

Description of this part for the microscope.

integrated gear for adjusting the height of the microscope condenser, as well as a rack with the element on which the condenser holder is mounted.

Description of this part for the microscope.

Description of this part for the microscope.

Installed in the objective turret in the upper part of the stand.

In the manufacturer's catalog from June 2025 (https://downloads.leica-microsystems.com/DM6%20M/Product%20Configuration%20%26%20Tech%20Specs/Leica_DM4_6BMP_Modular_System_V2025_06.pdf) this element is described on page 6, Fig. 9 and again on page 17, Fig. 34.

Basic technical data:
- Manufacturer: Leica
- Part number: 11555071
- Type: motorized disk with mounts for DIC disks
- Number of positions: 4; 1 blank + 3 for disks
- Compatibility: Leica DM6000 B and Leica DM6000 M

Description of this part for the microscope.

This element is in perfect condition and shows no signs of use.

Note - this is not a flat slide like most "sliders". It is a cube (in German "Würfel") with a knob for rotating the polarizer and mirrors inside.

Description of this part for the microscope.

a glass frosted filter (so-called ground glass) is located in the optical light beam path. It is mounted on a steel rod ending with a handle positioned outside the microscope base - at the rear, next to the place where the illuminator is inserted. This handle is used to insert and withdraw the frosted filter from the illumination beam path.

This design often leads to damage:
- the glass frosted filter is mounted on the rod in such a way that the glass frequently cracks
- the handle located at the rear of the microscope base very often breaks or crumbles
- the metal rod often jams and as a result of attempts to move it - bends

Here I present and offer this exact frosted filter with the complete movement mechanism:
- glass frosted filter (ground glass)
- holder for mounting the filter to the rod
- all necessary screws to attach this set to the microscope base
- plastic control knob for operating the ground glass

Description of this part for the microscope.

CERTAIN, however according to my best knowledge the description should not be incorrect.

This is an element of the microscope head.
- based on the color I believe that this is a part manufactured by Nikon (from experience)
- based on the spacing of the screw holes I believe that this is the element to which a binocular tube (so-called "binocular") is attached
- it is NOT the actual bottom part of the microscope head housing, as in Nikon microscopes this is usually made of a metal casting (from experience)

If you are looking for this element because you need it to replace the one you have and which is, for example, damaged - then based on detailed photographs with a centimeter scale you will certainly recognize whether this is the part you need.

Description of this part for the microscope.

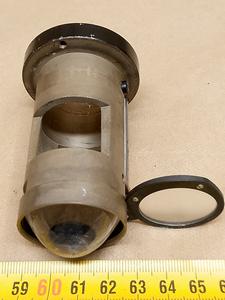

illuminator housing with frosted filter
- illuminator tube
- illuminator holder with frosted filter
- sometimes the German-language term "Lampenhaus" is used

Notice - this is NOT a complete illuminator assembly. Please carefully examine the photos in the gallery; as an additional element (which is not included here), a separate silver component extending beyond the outline of the microscope base is screwed in to help support the illuminator with bulb. Here I offer and describe the part that is located inside the microscope base.

Description of this part for the microscope.

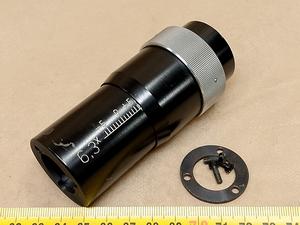

defect in one eye and proper adjustment of image sharpness.

In PZO MST-130 and MST-131 stereo microscopes the tubes are universal - there is no difference between right and left.

Basic parameters:
- Type: tube with diopter correction ring
- Eyepiece diameter: 34 mm
- Side: universal; right and left
- Color: black
- Version: short tube

Notice: PZO MST microscopes occur in the following colors:
- glossy black
- glossy ivory
- matte rough white
- other variants in export versions
This tube is BLACK.

Notice: Binocular heads of PZO MST 130 / 131 stereo microscopes are available in versions with long eyepiece tubes as well as short ones. Here I present and offer the SHORT version.

Description of this part for the microscope.

installed under the LEFT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Watch the video attached to the description of this microscope element - in the second video the left and right prisms are shown simultaneously and you can compare them visually.

Other names used:
- left binocular head prism
- left image-erecting prism
- left eyepiece prism
- binocular head prism - left side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

installed under the RIGHT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Watch the video attached to the description of this microscope element - in the second video the left and right prisms are shown simultaneously and you can compare them visually.

Other names used:
- right binocular head prism
- right image-erecting prism
- right eyepiece prism
- binocular head prism - right side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

Description of this part for the microscope.

installed. It enables ergonomic work with the microscope by tilting the observation head at an angle.

Note - this is not a tube with a photo port (that is, it is not a so-called "trino"). It is a tube intended for mounting a binocular head and it does not have a third optical light path.

Other names used for this microscope part:
- Angle tube
- Angular tube
- Inclined tube
- Intermediate tube
- Angle intermediate tube
- Inclined intermediate tube

Description of this part for the microscope.

except for the circuitry that operates the LCD.

Description of this part for the microscope.

Description of this part for the microscope.

Description of this part for the microscope.

in the terminology of PZO the name "MPI5" has two meanings, which causes some confusion:
- MPI5 is the name of a DIC microscope based on the PZO MB-30 stand, KPI-2 condenser and the DIC head model MPI3
- MPI5 is also the name of the latest DIC head that is part of the PZO UPI set (PL: Urzadzenie Polaryzacyjno-Interferencyjne)

Description of this part for the microscope.

element is intended for the Carl Zeiss Jena Fluoval microscope. THIS IS NOT CERTAIN INFORMATION - I am unable to access the relevant documentation.

Other used names:
- lamp holder
- lamp tube
- lamp support
- sometimes the German-language term "Lampenhaus" is used

Description of this part for the microscope.

Photomicroscope II (Phomi) microscope, but I understand it also fits the other Zeiss microscopes.

Description of this part for the microscope.

Description of this part for the microscope.

eu/foto/owner-1/_manuals/Carl-Zeiss-Jena-MHP-160.pdf

Description of this part for the microscope.

of the Lomo MBC-9 stereo microscope.

Note - "MBC" is written in Cyrillic, therefore the Latin alphabet designation of this microscope model is MBS-9.

Important - this repair element fits ONLY the MBC-9 model. It does not fit the following models:
- MBC-1
- MBC-2
- MBC-10

The head of this microscope contains two such holders - one for each eyepiece tube. Both are identical, which means there is no difference between the right and left side.

Description of this part for the microscope.

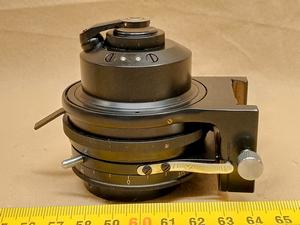

Description of this part for the microscope.

microscopes from other manufacturers, especially when Carl Zeiss Jena Planachromat objectives are mounted.

Description of this part for the microscope.

illumination collector
- potentiometer for light intensity control
- illuminator with halogen lamp
- transformer integrated into the base (Zeiss P/N 392575-9001)
- power cable with EU plug

Description of this part for the microscope.

illumination according to the Koehler standard
- slot for inserting the illuminator
- angled mirror reflecting the light beam

Important - some versions have a base with a removable illumination collector module with a field diaphragm. This base has this module permanently mounted (screwed), but there is no difference in operation between these versions.

Important - the base does not include the illuminator. The Standard GFL model uses illumination with a 6V 15W bulb mounted in a holder (Lampenfassung). This illuminator is connected to an external transformer. It is a separate component and is not included with the base.

Description of this part for the microscope.

of the Lomo MBC-10 stereo microscope.

Note - "MBC" is written in Cyrillic, therefore the Latin alphabet designation of this microscope model is MBS-10.

Important - this repair element fits ONLY the MBC-10 model. It does not fit the following models:
- MBC-1
- MBC-2
- MBC-9

Cracking and the resulting crumbling of this part is one of the most common failures found in the MBC-10 microscope. The head of this microscope contains two such holders - one for each eyepiece tube. Both are identical, which means there is no difference between the right and left side.

Description of this part for the microscope.

of the Lomo MBC-1 / MBC-2 stereo microscope.

Note - "MBC" is written in Cyrillic, therefore the Latin alphabet designation of this microscope model is MBS-1 / MBS-2.

Important - this repair element fits ONLY the MBC-1 / MBC-2 model. It does not fit the following models:
- MBC-9
- MBC-10

The head of this microscope contains two such holders - one for each eyepiece tube. Both are identical, which means there is no difference between the right and left side.

Description of this part for the microscope.

Cyrillic, therefore the Latin alphabet designation of this microscope model is MBS-1 / MBS-2.

Notice: This prism is installed under the LEFT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Other names used:
- left binocular head prism
- left image-erecting prism
- left eyepiece prism
- binocular head prism - left side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

in Cyrillic, therefore the Latin alphabet designation of this microscope model is MBS-1 / MBS-2.

Notice: This prism is installed under the RIGHT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Other names used:
- right binocular head prism
- right image-erecting prism
- right eyepiece prism
- binocular head prism - right side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

alphabet designation of this microscope model is MBS-9.

Notice: This prism is installed under the LEFT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Other names used:
- left binocular head prism
- left image-erecting prism
- left eyepiece prism
- binocular head prism - left side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

alphabet designation of this microscope model is MBS-9.

Notice: This prism is installed under the RIGHT eyepiece. The left and right prisms, although similar - DIFFER and must not be interchanged, even if it is possible "by force".

This prism is mounted on a metal base which is screwed into the head under the eyepiece tube. This metal base allows adjustment of the prism in order to achieve perfect image collimation, meaning that the images for the left and right eye are aligned.

Other names used:
- right binocular head prism
- right image-erecting prism
- right eyepiece prism
- binocular head prism - right side
- prism (generally)
- angle prism (generally)
- glued prism (generally)
- mirror prism (generally)
- prism block (generally)
- binocular prism (generally)

Description of this part for the microscope.

MIN-8 polarizing microscope. A very similar component is found in the Lomo MBB-1 model, but it is threaded instead of attached with screws. However, it can be adapted, so I consider it compatible with that model.

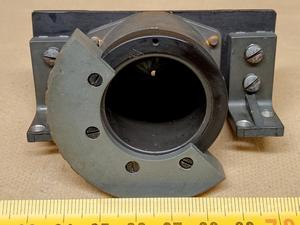

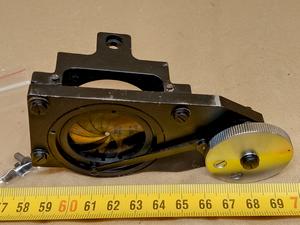

Description of this part for the microscope.

This diaphragm is necessary to set illumination according to the Koehler system.

This element is used in a diaphragm installed in various Carl Zeiss Jena microscope models built on the Amplival stand:
- Amplival
- Amplival Interphako
- Amplival Pol
- Vertival
- Peraval
- Fluoval
- Docuval

The field diaphragm located in the microscope base is part of the transmitted light path - it is not a diaphragm for EPI (reflected) illumination. However, it is VERY LIKELY that individual blades may also fit reflected light diaphragms and other diaphragms (e.g. aperture diaphragms) in Carl Zeiss Jena microscopes and condensers.

Damage to iris diaphragm blades is one of the more common failures in Carl Zeiss Jena microscopes. Most often this occurs when:
- the lubricant in the diaphragm opening / closing mechanism dries out and the user tries to move it by force
- a foreign object gets between the blades (e.g. a glass fragment from a chipped microscope slide)
- the diaphragm is closed too quickly or opened too far

In the event of an iris diaphragm failure, it is possible to:
- replace the entire element (condenser or diaphragm module)
- replace only the diaphragm
- repair the diaphragm by replacing the damaged blades

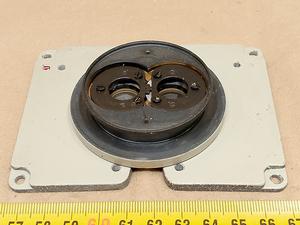

Description of this part for the microscope.

in the Latin alphabet is MBS-9.

The microscope head of a stereo microscope consists of (from top to bottom):
- eyepieces
- they are inserted into eyepiece tubes (so-called tubes)
- these tubes are screwed into threaded holders
- prism cages (holders, frames) with prisms inside
- these prism cages are mounted to the bottom part of the head
- prism covers, also screwed to the bottom part - one of the larger housing components of the head

The bottom part of the head, i.e. the component offered here, consists of:
- a dovetail mounting connection used to attach the head to the microscope stand
- lenses
- a mechanism for interpupillary distance adjustment

Description of this part for the microscope.

designation in the Latin alphabet is MBS-1 / MBS-2.

The microscope head of a MBC-1 / MBC-2 stereo microscope consists of (from top to bottom):
- eyepieces
- they are inserted into eyepiece tubes (so-called tubes)
- these tubes are screwed into threaded holders
- prism cages (holders, frames) with prisms inside
- these prism cages are mounted to the bottom part of the head

The bottom part of the head, i.e. the component offered here, consists of:
- a dovetail mounting connection used to attach the head to the microscope stand
- lenses
- a mechanism for interpupillary distance adjustment

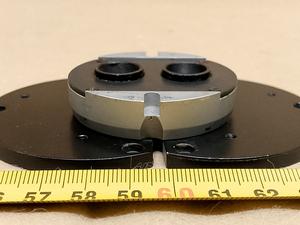

Description of this part for the microscope.

(from top to bottom):
- eyepieces
- they are inserted into eyepiece tubes (so-called tubes)
- these tubes are mounted in the housing section that covers the prisms; these prism covers are screwed to the bottom part of the head
- prism cages (holders, frames) with prisms inside
- these prism cages are mounted to the bottom part of the head

The bottom part of the head, i.e. the component offered here, consists of:
- a dovetail mounting connection used to attach the head to the microscope stand
- lenses
- a mechanism for interpupillary distance adjustment

Description of this part for the microscope.

polarizing microscope LOMO MIN-8

Description of this part for the microscope.

This insert fits condensers used in the following Lomo microscopes:
- Polam (all models)
- MIN-8
- MIK-1
- MIK-4

and most likely also in other microscopes that use similarly designed condensers. Note - to make sure that this insert fits your condenser, be sure to check the diameter of this element.

Mount diameter: 35 mm

The transmitted light condenser in these microscopes features:
- interchangeable upper lenses to obtain the required aperture
- a diaphragm located below the upper lens
- a slot for inserting a Pol filter insert (the insert may, but does not have to, include an additional iris diaphragm)

In some cases, this insert alone can be used without the condenser - the effect is similar to a condenser with a Pol filter of low N.A.
This element is often used by owners of microscopes from other manufacturers to convert their condenser into a polarisation condenser.

Since this element can be removed relatively easily, it is very often missing in microscopes from the secondary market.

IMPORTANT - this is not a separate microscope condenser. It is a component of the condenser, even though it is sometimes used as a substitute for a condenser.

Description of this part for the microscope.

condensers used in the following Lomo microscopes:
- Polam
- MIN-8
- MIK-1
- MIK-4

and most likely also in other microscopes that use similarly designed condensers. Note - to make sure that this insert fits your condenser, be sure to check the diameter of this element.

Mount diameter: 26 mm

The transmitted light condenser in these microscopes features:
- interchangeable upper lenses to obtain the required aperture
- a diaphragm located below the upper lens
- a slot for inserting a Pol filter insert (the insert may, but does not have to, include an additional iris diaphragm)

Note - this is the version without an iris diaphragm.

In some cases, this insert alone can be used without the condenser - the effect is similar to a condenser with a Pol filter of low N.A.
This element is often used by owners of microscopes from other manufacturers to convert their condenser into a polarisation condenser.

Since this element can be removed relatively easily, it is very often missing in microscopes from the secondary market.

IMPORTANT - this is not a separate microscope condenser. It is a component of the condenser, even though it is sometimes used as a substitute for a condenser.

Description of this part for the microscope.

Basic data:
- Element: microscope condenser
- Manufacturer: Meopta
- Manufacturer part number: 573 08 (57308)
- Numerical aperture: 1.0
- Design: condenser with a double-lens optical system
- Mounting diameter: 37 mm (exactly according to the manufacturer catalog 36.8 mm)
- Iris diaphragm: YES

Note - although the manufacturer describes it as "for polarizing microscopes" - this is NOT a polarizing condenser, i.e. it does not contain a polarizer - neither fixed nor rotatable.

This condenser fits any Meopta microscope as well as microscopes from other manufacturers (e.g. Lomo, Olympus, Carl Zeiss Jena and many others) with a condenser holder diameter of 37 mm.

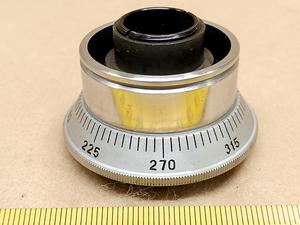

Description of this part for the microscope.

Model: Lomo INF
Mount diameter: 35 mm

This insert fits condensers used in the following Lomo microscopes:
- MIK-1
- MIK-4
- Polam (all models)
- MIN-8

and most likely also in other microscopes that use similarly designed condensers. Note - to make sure that this insert fits your condenser, be sure to check the diameter of this element.

The transmitted light condenser in these microscopes features:
- interchangeable upper lenses to obtain the required aperture
- a diaphragm located below the upper lens
- a slot for inserting a IR filter insert (the insert may, but does not have to, include an additional iris diaphragm)

In some cases, this insert alone can be used without the condenser - the effect is similar to a condenser with a IR filter of low N.A.
This element is often used by owners of microscopes from other manufacturers to convert their condenser into a infrared condenser.

Since this element can be removed relatively easily, it is very often missing in microscopes from the secondary market.

IMPORTANT - this is not a separate microscope condenser. It is a component of the condenser, even though it is sometimes used as a substitute for a condenser.

Description of this part for the microscope.

differences between the Lomo MIN-8 and MBB-1A microscopes is the position of the light beam collimating lens:
- in the Lomo MBB-1A microscope this lens is normally located below the Abbe condenser
- in the Lomo MIN-8 microscope this lens is located in the base, in the light path directly behind the field diaphragm

Here I present and offer the complete mechanism for mounting and moving this lens:
- lens in housing
- rod on which the lens is mounted
- holder allowing movement of the lens
- mounting screws

This lens is used to shape the light beam so that the specimen is evenly illuminated at low magnifications.

Description of this part for the microscope.

was also sold under the name Reichert-Jung CryoCut-E. Why? After Leica acquired Reichert-Jung, both companies sold technically identical products for a certain period under their own brands while maintaining separate model names. All service and spare parts are identical for both devices.

This knife holder is therefore compatible with:
- Reichert-Jung CryoCut-E
- Leica CM1800

However, it is highly likely that it also fits other models with the same or similar design, because knives are compatible across many models and a well-designed knife holder was often used in multiple subsequent models.

Other commonly used names for the entire device:
- cryotome
- cryostat
- microtome
- cryo-microtome
- freezing chamber

Other names used for this component:
- knife / blade holder
- knife / blade mount
- knife / blade clamp

Note that different terms are used for the knife in microtomes / cryotomes:
- PL: nóż
- PL: ostrze
- EN: knife
- EN: blade
- DE: Messer
- DE: Mikrotommesser
- DE: Klinge
- DE: Mikrotomklinge
